TECK 90 interlocked armoured cables are commonly used in industrial settings such as oil refineries, chemical plants, mines, and other heavy-duty applications where the cable may be exposed to harsh conditions. Their robust construction makes them suitable for installations where ordinary cables might be prone to damage or failure. Additionally, their armored design allows for direct burial or installation in conduit systems, further enhancing their versatility and durability.
Description: Aluminum Interlocked Amrour Cable is a type of armored electrical cable primarily used for industrial applications, particularly in harsh environments where mechanical protection and resistance to moisture, chemicals, and other hazards are necessary.
Voltage: 600V;

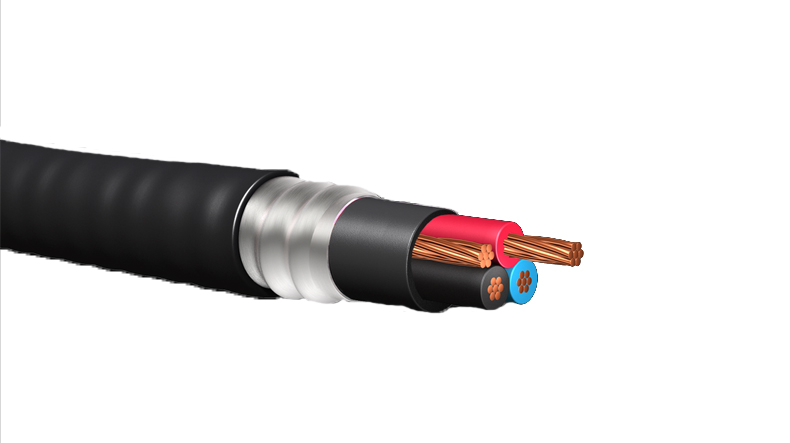

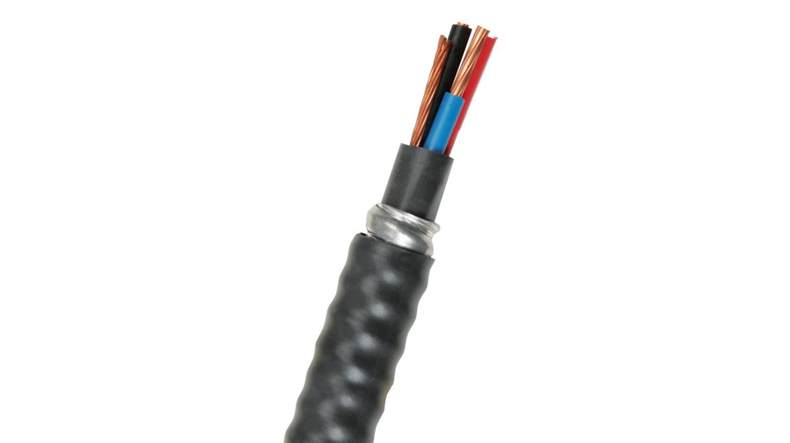

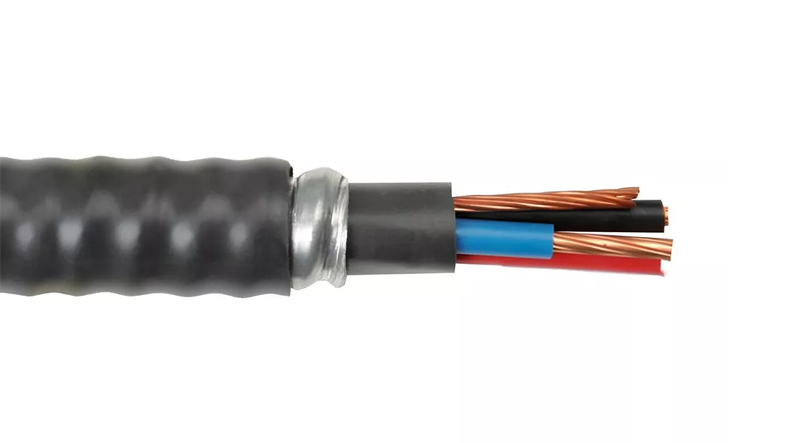

Construction: Conductor:Stranded Copper; Insulation: XLPE; Inner Jacket: PVC; Armoured: Aluminum Interlocked Armour; Overall Jacket: PVC;
Feature: Sunlight Resistance; Flame Resistance;
Application: Aluminum Interlocked Amrour Cable are commonly used in industrial settings such as oil refineries, chemical plants, mines, and other heavy-duty applications where the cable may be exposed to harsh conditions. Their robust construction makes them suitable for installations where ordinary cables might be prone to damage or failure. Additionally, their armored design allows for direct burial or installation in conduit systems, further enhancing their versatility and durability.
| Gauge | Conductors | Ground Gauge | Insulation Thickness | Nominal OD over Armor | Outside Diameter Inches | Material Weight (Lbs./M’) | Material Weight (KG/KM) |
| 8 | 3 | 10 | 0.045 | 0.86 | 0.94 | 482 | 717 |
| 8 | 4 | 10 | 0.045 | 0.92 | 1 | 570 | 848 |
| 6 | 3 | 8 | 0.06 | 1.03 | 1.13 | 695 | 1034 |
| 6 | 4 | 8 | 0.06 | 1.04 | 1.25 | 883 | 1314 |
| 4 | 3 | 8 | 0.06 | 1.16 | 1.25 | 950 | 1413 |
| 4 | 4 | 8 | 0.06 | 1.18 | 1.35 | 1161 | 1727 |
| 2 | 3 | 6 | 0.06 | 1.28 | 1.37 | 1300 | 1934 |
| 2 | 4 | 6 | 0.06 | 1.45 | 1.46 | 1568 | 2333 |
| 1/0 | 3 | 6 | 0.08 | 1.56 | 1.68 | 1871 | 2784 |
| 2/0 | 3 | 6 | 0.08 | 1.65 | 1.77 | 2177 | 3239 |
| 3/0 | 3 | 4 | 0.08 | 1.75 | 1.87 | 2619 | 3897 |
| 4/0 | 3 | 4 | 0.08 | 1.86 | 1.98 | 3176 | 4726 |
| 350 | 3 | 3 | 0.09 | 2.26 | 2.4 | 4989 | 7424 |
| 500 | 3 | 3 | 0.09 | 2.52 | 2.66 | 6706 | 9979 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
