VFD cable is mainly used for connecting the cable between the variable frequency power supply and the variable frequency motor, as well as the transmission and distribution lines with a rated voltage of 1 KV and below, for transmission of electrical energy.
Application VFD cable is mainly used for connecting the cable between the variable frequency power supply and the variable frequency motor, as well as the transmission and distribution lines with a rated voltage of 1 KV and below, for transmission of electrical energy. Especially suitable for papermaking, metallurgy, metal processing, mining, railway and food processing industries.
Features 1.Rated voltage 0.6/1KV
2. Conductor max. operating temperature is90℃ for long time, max.temperature is 250℃ for a short circuit.
3. Installation temperature not less than 0℃
4. The min. allowable bending radius is not less than 15D

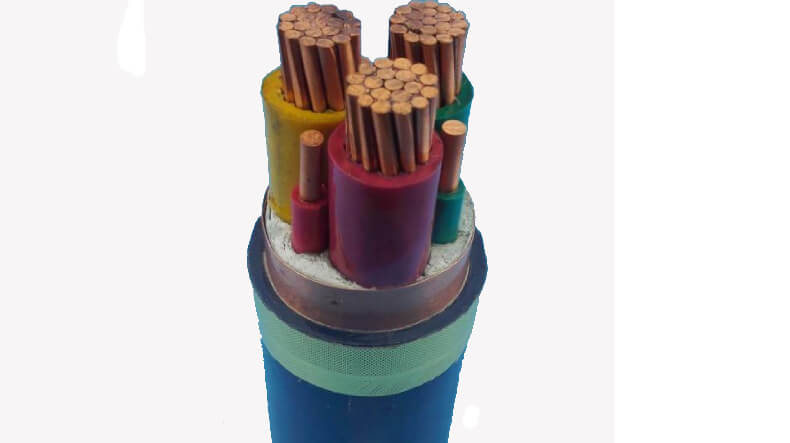

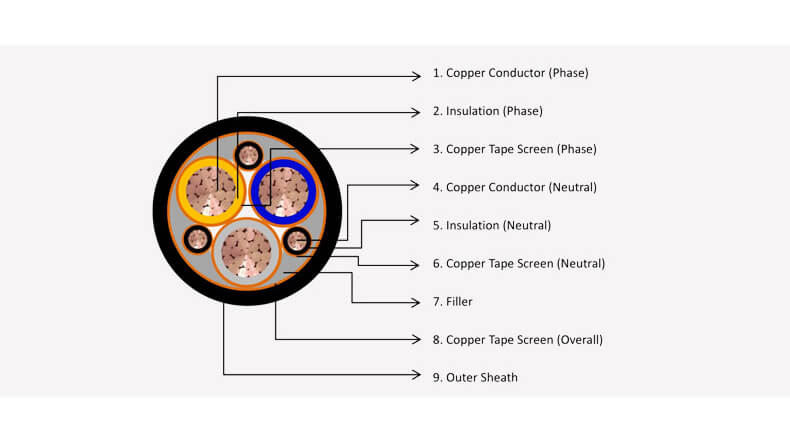

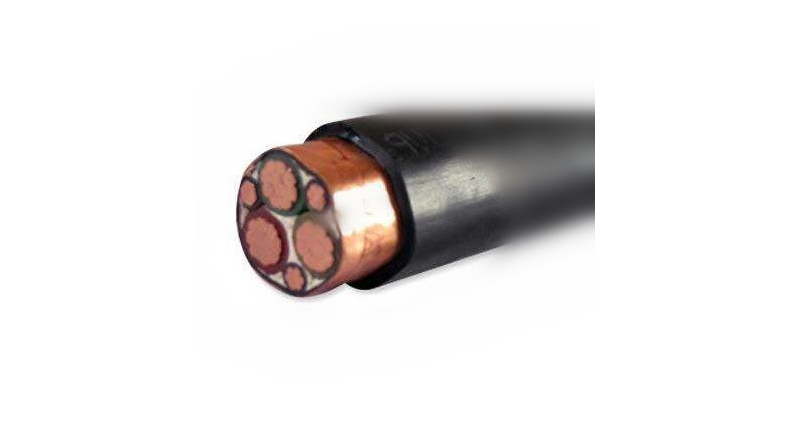

Construction The structure includes three main core insulated and three earth core insulated . Outside includes wrapping layer , copper tape layer , outer sheath. 3+3 core structure makes the cable has a strong voltage shock resistance, can withstand the pulse voltage of high frequency and frequent frequency conversion, play a good protection role for the frequency conversion appliance.
| Cable size | Conductor Dia. | Insulation thickness | Copper tape shield thickness | Outer sheath
thickness |
Approx.
cable dia. |
Approx.
Cable weight |
||||
| Phase | Earth | Phase | Earth | Phase | Earth | Individual | Overall | |||
| mm2 | mm | mm | mm | mm | mm | mm | kg/km | |||
| 2.5 | 0.5 | 2.01 | 0.8 | 0.7 | 0.5 | — | Min.0.05 | 1.8 | 13.4 | 390.2 |
| 4 | 0.75 | 2.55 | 0.99 | 0.7 | 0.5 | — | Min.0.05 | 1.8 | 14.8 | 484.1 |
| 6 | 1 | 3.12 | 1.14 | 0.7 | 0.6 | — | Min.0.05 | 1.8 | 16.1 | 590.3 |
| 10 | 1.5 | 4.05 | 1.4 | 0.7 | 0.7 | — | Min.0.05 | 1.8 | 18.4 | 793.3 |
| 16 | 2.5 | 5.13 | 1.8 | 0.7 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 21.4 | 1129.5 |
| 25 | 4 | 6 | 2.28 | 0.9 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 24.5 | 1545.9 |
| 35 | 6 | 7 | 2.79 | 0.9 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 26.9 | 1968.5 |
| 50 | 10 | 8.2 | 4.2 | 1 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 30.3 | 2636.6 |
| 70 | 10 | 9.9 | 4.2 | 1.1 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 34.9 | 3382.4 |
| 95 | 16 | 11.6 | 5.3 | 1.1 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 39 | 4407.8 |
| 120 | 25 | 13 | 6.7 | 1.2 | 0.9 | Min.0.05 | Min.0.05 | 1.8 | 42.9 | 5538 |
| 150 | 35 | 14.4 | 7.9 | 1.4 | 0.9 | Min.0.05 | Min.0.05 | 2.5 | 48.7 | 7015.3 |
| 185 | 35 | 16.2 | 7.9 | 1.6 | 0.9 | Min.0.05 | Min.0.05 | 2.7 | 54.5 | 8332.7 |
| 240 | 50 | 18.6 | 9.5 | 1.7 | 1.1 | Min.0.05 | Min.0.05 | 2.9 | 61.2 | 10685
|

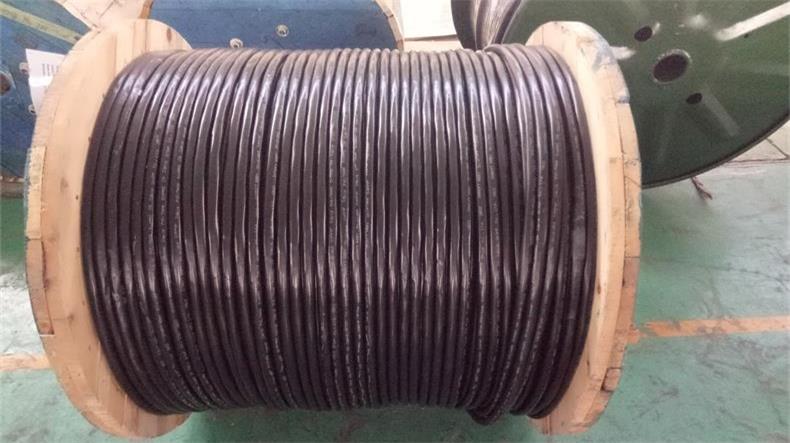

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
