RRU cables typically refers to a type of coaxial cable used in telecommunications, specifically in the context of Remote Radio Units (RRUs). RRU are components in cellular networks that are responsible for transmitting and receiving radio signals.
Description: RRU cables typically refers to a type of coaxial cable used in telecommunications, specifically in the context of Remote Radio Units (RRUs). RRU are components in cellular networks that are responsible for transmitting and receiving radio signals.
Voltage: 600/1000V;

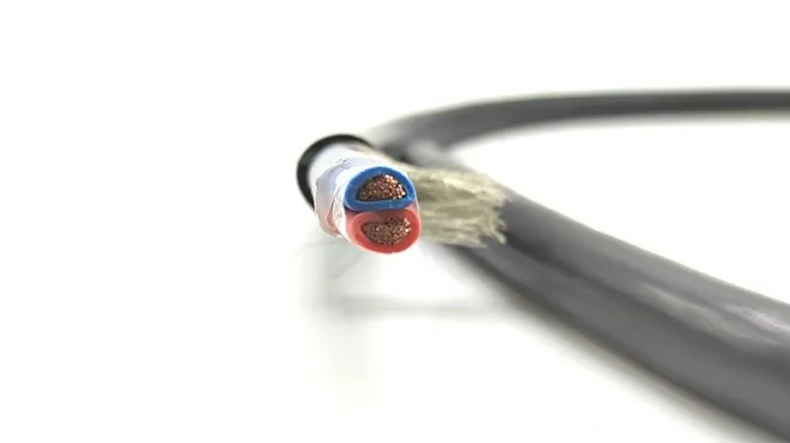

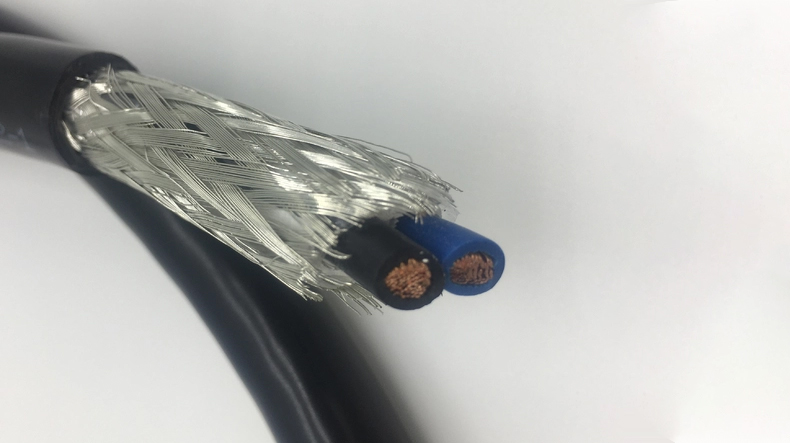

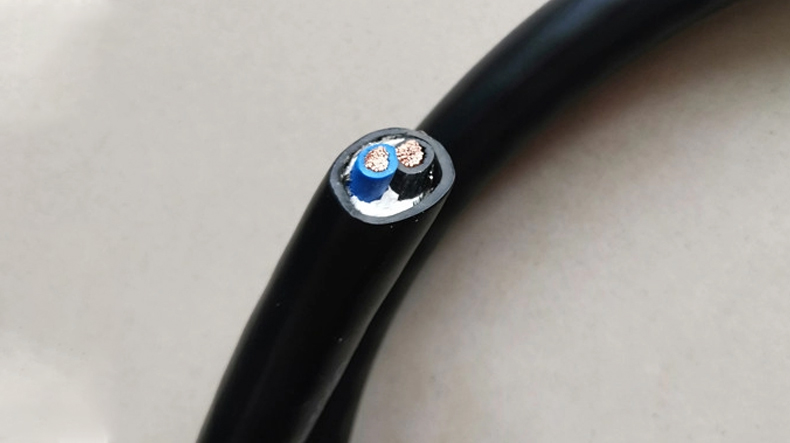

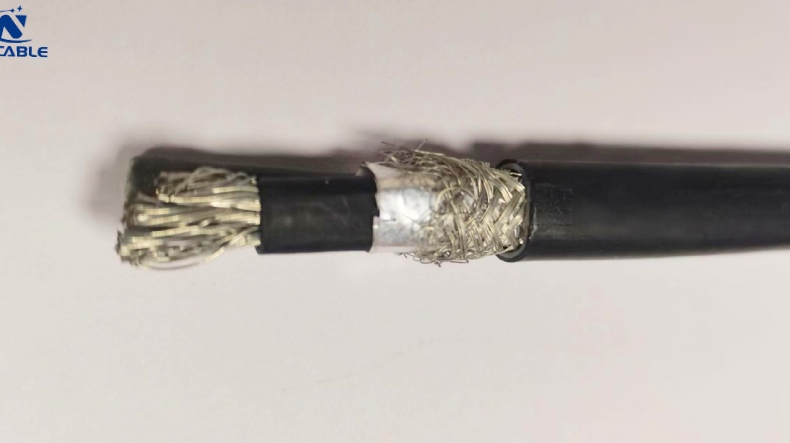

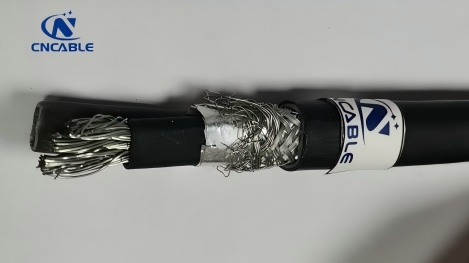

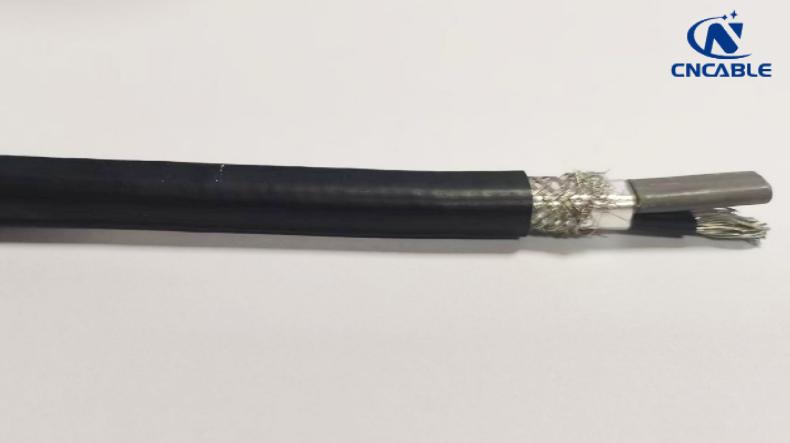

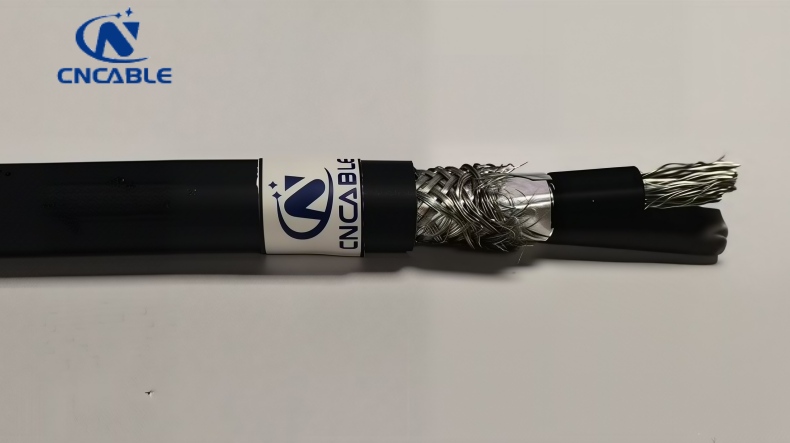

Construction: Conductor: Standed bare copper; Insulation: PVC; Covering: Aluminum foil tape; Braiding: Tinned copper braiding; Jacket: PVC;
Application: RRU cables are essential components in modern telecommunications infrastructure, enabling the efficient transmission of radio signals between RRUs and antennas in cellular networks, 5G deployments, small cell installations, wireless backhaul connections, and distributed antenna systems.
| Cross Section (mm²) | Conductor Construction & Wire Size | Insulation: NOM Wall Thickness | Insulation: NOM Overall Diameter | NOM Finish OD of Cable | Resistance Max @ 20°c mΩ/m | Approximate Mass/ meter |
| 2X6 | 48X0.40 | 1,00 | 5,20 | 13,00 | 4,77 | 0.218 kg |
| 2X10 | 80X0.40 | 1,00 | 6,20 | 14,00 | 2,86 | 0.282kg |
| 2X16 | 128X0.40 | 1,00 | 7,80 | 17,50 | 1,91 | 0.337 kg |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
