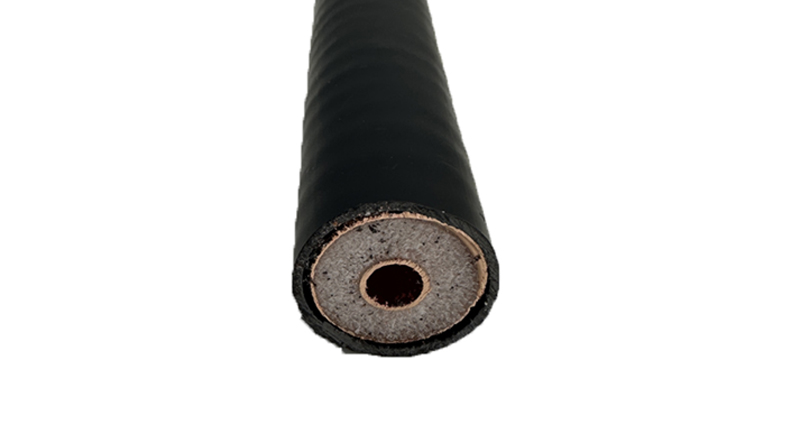

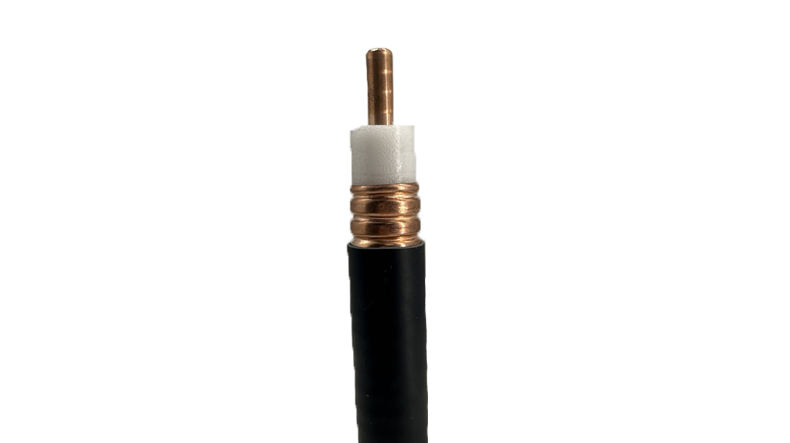

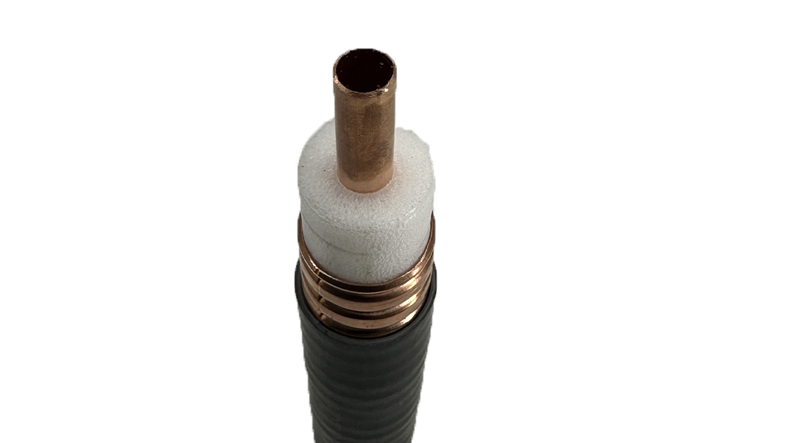

Leaky cable, also known as radiating cable or leaky feeder, is a type of communications cable that is designed to emit radio frequency (RF) signals along its length. It consists of a coaxial cable with small slots or gaps along its outer conductor, allowing radio signals to leak out.
Description: Leaky cable, also known as radiating cable or leaky feeder, is a type of communications cable that is designed to emit radio frequency (RF) signals along its length. It consists of a coaxial cable with small slots or gaps along its outer conductor, allowing radio signals to leak out.

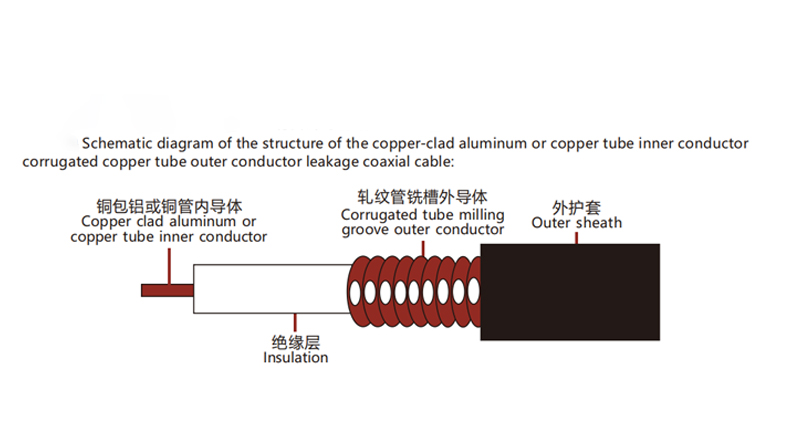

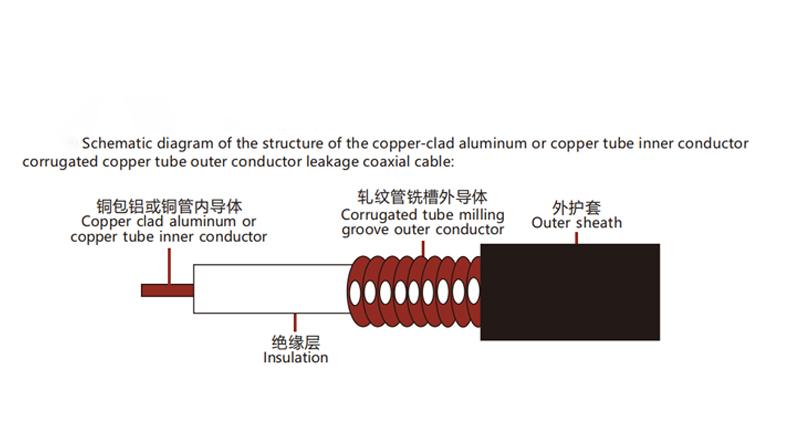

Construction: Conductor: Copper; Insulation: Physically Foamed Polyethylene; Sheath: Polyethylene
Applicable Standard: TB/T 3201-2015
Application: Leaky cable plays a crucial role in ensuring reliable wireless communication in challenging environments where conventional methods may fail to provide adequate coverage or connectivity.
| Cable specifications | 50-12 | 50-22 | 50-32 | 50-42 |
| Nominal outer diameter of inner conductor mm | 4.8 | 9 | 13.1 | 17.3 |
| Limit deviation of outer diameter mm | ±0.05 | ±0.10 | ±0.10 | ±0.30 |
| Nominal outer diameter of outer conductor mm | 13.9 | 24.9 | 35.8 | 45.6 |
| Limit deviation of outer diameter mm | ±0.25 | ±0.30 | ±0.30 | ±0.40 |
| Minimum thickness of sheath mm | 0.8 | 1.1 | 1.2 | 1.3 |
| Maximum cable outer diameter mm | 16.4 | 28.8 | 40 | 51 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
