INSTRUMENTATION CABLES

The cable is used for reducing interference in computers, control systems, transmission of analogue signal and other measuring devices.

Standard BS5308, IEC60502

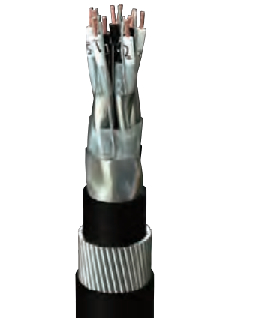

Construction Cu conductor/Mica tape (Optional)/XLPE or PVC Insulation / Individual (optional) and Overall screen/Armor (if required)/Outer sheath
Features 600/1000V Flame retardant , LSHF , Oil resistance are all available if required

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Product introduction

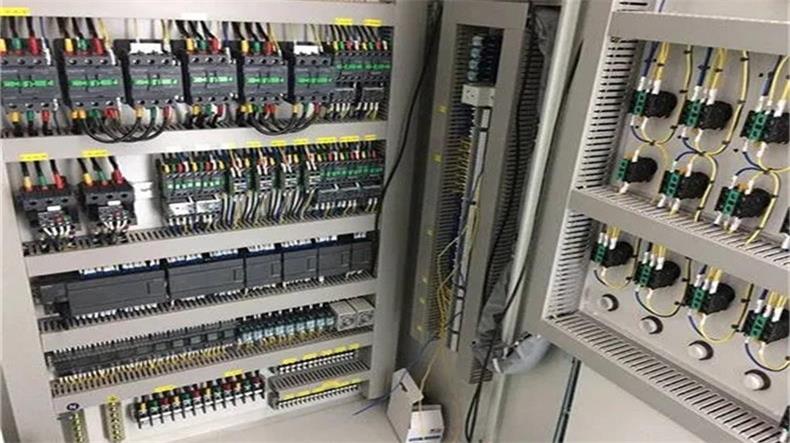

Application Instrumentation Cables are used for reducing interference in computers, control systems, transmission of analogue signal and other measuring devices.

Standard BS5308, IEC60502

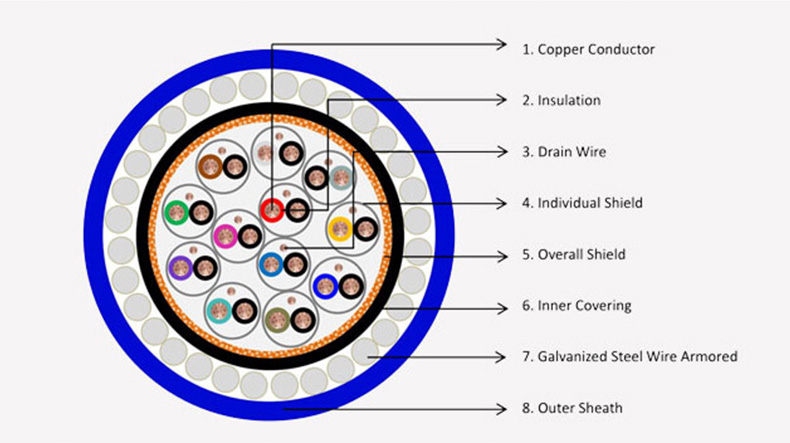

Construction Cu conductor/Mica tape (Optional)/XLPE or PVC Insulation / Individual (optional) and Overall screen/Armor (if required)/Outer sheath

Features 600/1000V Flame retardant , LSHF , Oil resistance are all available if required

Product Data Sheet

No. of Pairs		Conductor Size mm2	Conductor Dia. mm	Insulation Thickness mm	Inner Sheath Thickness mm	Dia. Of Steel Wire Armor mm	Outer Sheath Thickness mm	Approx. Overall Dia. Mm	Approx. Weight kg/km
1	P	1.5	1.56	0.7	1.0	0.9	1.4	11.0	260
1	P	2.5	2.01	0.7	1.0	0.9	1.4	11.6	300
2	P	1.5	1.56	0.7	1.0	1.2	1.5	15.6	542
2	P	2.5	2.01	0.7	1.0	1.2	1.6	17.22	647
4	P	1.5	1.56	0.7	1.0	1.2	1.6	17.2	717
4	P	2.5	2.01	0.7	1.0	1.6	1.6	19.63	1008
6	P	1.5	1.56	0.7	1.0	1.6	1.7	20.8	1088
6	P	2.5	2.01	0.7	1.0	1.6	1.7	22.83	1314
8	P	1.5	1.56	0.7	1.0	1.6	1.7	21.47	1240
8	P	2.5	2.01	0.7	1.0	1.6	1.8	23.79	1506
10	P	1.5	1.56	0.7	1.0	1.6	1.8	25.44	1584
10	P	2.5	2.01	0.7	1.0	1.6	1.9	28.39	1953
12	P	1.5	1.56	0.7	1.0	1.6	1.9	26.32	1722
12	P	2.5	2.01	0.7	1.0	1.6	2	29.41	2134
14	P	1.5	1.56	0.7	1.0	1.6	1.9	27.5	1906
14	P	2.5	2.01	0.7	1.0	2	2	31.6	2602
16	P	1.5	1.56	0.7	1.0	1.6	1.9	28.82	2112
16	P	2.5	2.01	0.7	1.0	2	2.1	33.32	2901
20	P	1.5	1.56	0.7	1.2	2	2.1	32.33	2756
20	P	2.5	2.01	0.7	1.2	2	2.2	36.18	3429
24	P	1.5	1.56	0.7	1.2	2	2.2	36.22	3310
30	P	1.5	1.56	0.7	1.2	2	2.3	38.33	3857

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
