Silicone cable is an electrical cable with insulation made from silicone rubber,Which have excellent thermal stability, flexibility, and resistance to high temperatures, making it ideal for use in environments where traditional cable insulation materials might degrade or become brittle.
Description: Silicone cable is an electrical cable with insulation made from silicone rubber,Which have excellent thermal stability, flexibility, and resistance to high temperatures, making it ideal for use in environments where traditional cable insulation materials might degrade or become brittle.
Rating Voltage: 300/500V; 0.6/1kV

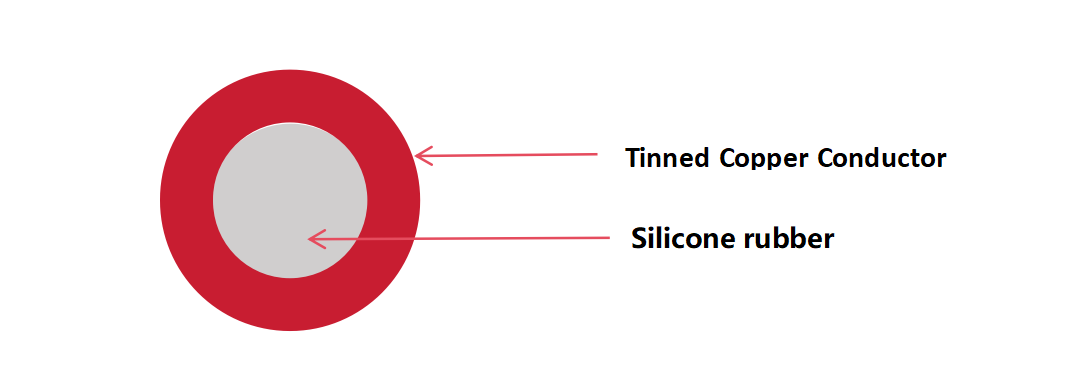

Construction: Conductor:Tinned Copper Conductor; Insulation: Silicone Rubber
Standard: EN 50525-2-41, IEC/EN 60228
Feature: High Temperature Resistance; LSZH; Heat Resistance
Application: Silicone single core cables are used in high as well as extremely low temperature areas. They are used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glass and ceramic factories. These cables are halogen-free, especially suited for use in power stations.
| NO. OF CORES | NOMINAL CROSS
SECTIONAL AREA mm2 |
NOMINAL THICKNESS
OF INSULATION mm2 |
NOMINAL OVERALL
DIAMETER mm |
NOMINAL
WEIGHT kg/km |
| 1 | 0.25 | 0.6 | 1.8 | 7 |
| 1 | 0.35 | 0.6 | 1.9 | 8 |
| 1 | 0.5 | 0.6 | 2.1 | 10 |
| 1 | 0.75 | 0.6 | 2.3 | 13 |
| 1 | 1 | 0.6 | 2.5 | 15 |
| 1 | 1.5 | 0.6 | 2.8 | 21 |
| 1 | 2.5 | 0.7 | 3.5 | 34 |
| 1 | 4 | 0.8 | 4.1 | 49 |
| 1 | 6 | 0.8 | 4.7 | 68 |
| 1 | 10 | 1 | 6.1 | 110 |
| 1 | 16 | 1.2 | 7.5 | 168 |
| 1 | 25 | 1.4 | 9.1 | 254 |
| 1 | 35 | 1.4 | 10.3 | 347 |
| 1 | 50 | 1.6 | 12 | 490 |
| 1 | 70 | 1.6 | 13.7 | 686 |
| 1 | 95 | 1.8 | 15.6 | 888 |
| 1 | 120 | 1.8 | 17.4 | 1149 |
| 1 | 150 | 2 | 19.3 | 1411 |
| 1 | 185 | 2.2 | 21.4 | 1722 |
| 1 | 240 | 2.4 | 24.3 | 2284 |
| 1 | 300 | 2.6 | 26.9 | 2895 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
