ESP cables are specialized cables that are used to supply power to pump in deep wells. The environments in which these cables are installed are often restrictive and hostile, requiring that the cables be durable and reliable.
Description: ESP cables are specialized cables that are used to supply power to pump in deep wells. The environments in which submersible oil pump cables are installed are often restrictive and hostile, requiring that the cables be durable and reliable.

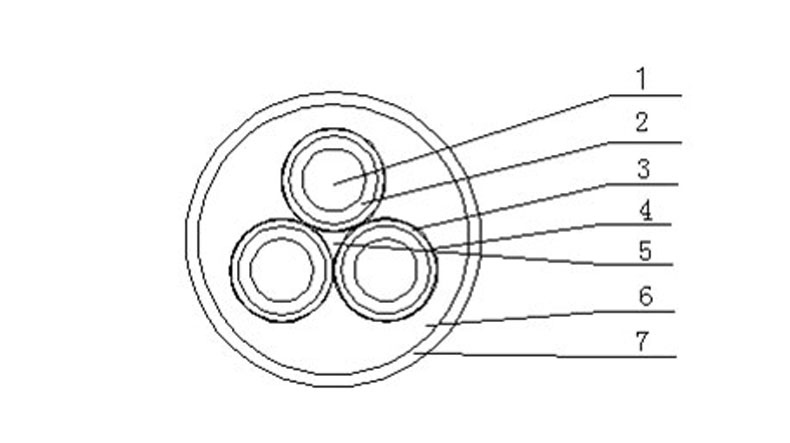

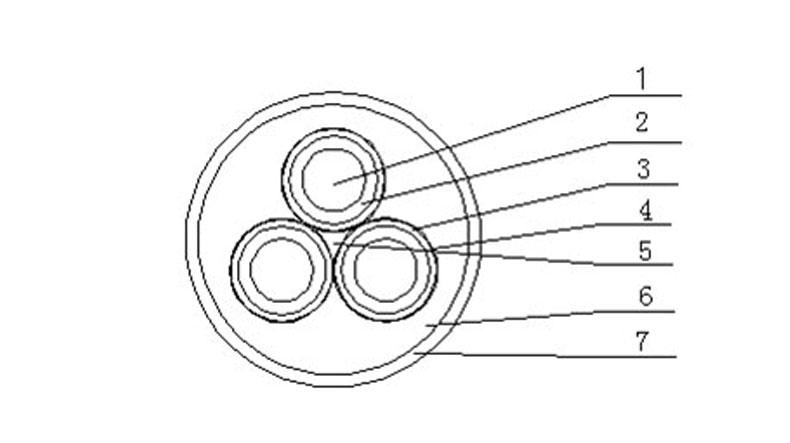

Construction: Copper Conductor;EPDM Insulated;Lead/EPDM Sheathed;Galvanized Steel Strip Armoring.

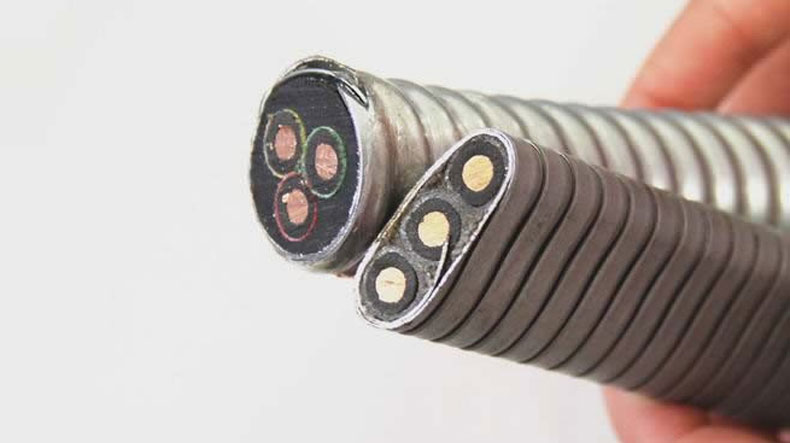

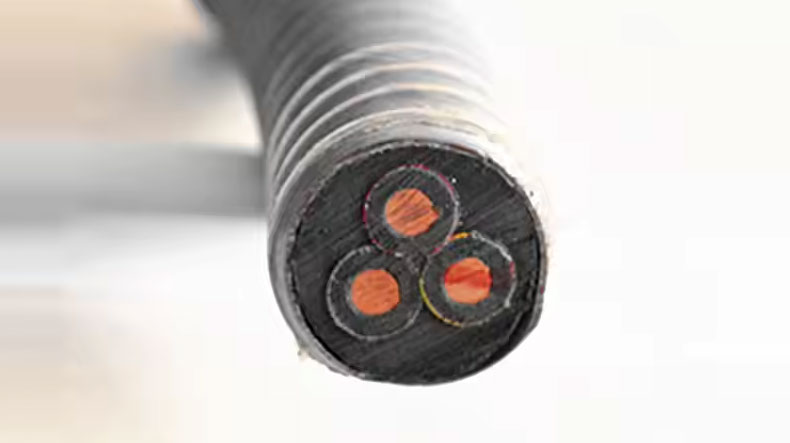

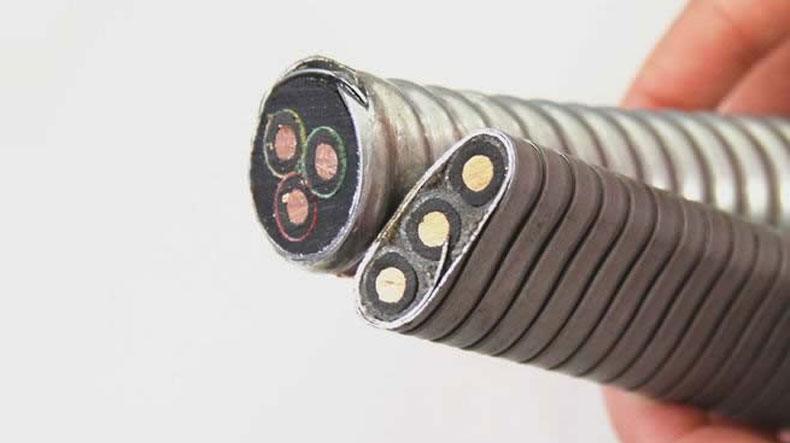

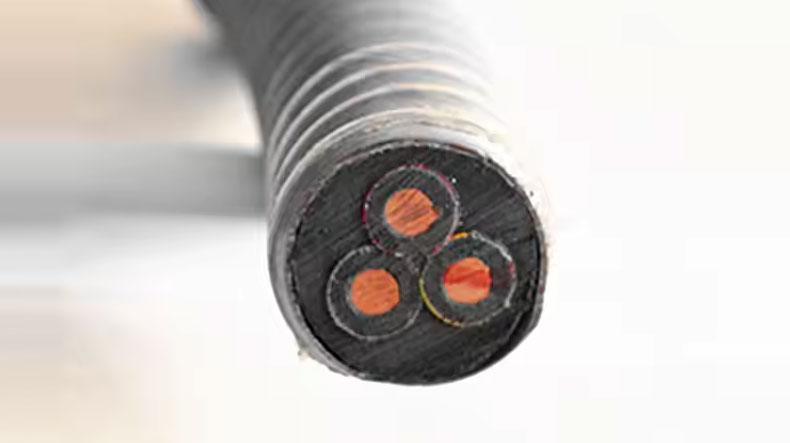

Shape: Round;Flat.
Feature: Water Resistance;Oil Resistance.
Application: Oil and Gas Industry;Marine and Offshore Operations;Mining Operations;Industrial Cooling Systems;Renewable Energy.
| 3kV Submersible pump oil cable | ||||||||
| Conductor specification | Conductor specification | Conductor specification | EPDM insulation | EPDM insulation | LEAD sheath | LEAD sheath | EPDM shealth | EPDM shealth |
| AWG | Area mm2 | Outer diameter mm | Thickness mm | Outer diameter mm | Thickness mm | Outer diameter mm | Thickness mm | Outer diameter mm |
| 6 | 13 | 4.12 | 1.7 | 7.92 | 0.75 | 9.12 | 1.52 | 23.71 |
| 4 | 20 | 5.19 | 1.7 | 8.99 | 0.75 | 10.19 | 1.52 | 26.01 |
| 2 | 33 | 6.54 | 1.7 | 10.34 | 0.75 | 11.54 | 1.52 | 28.92 |
| 1 | 42 | 7.35 | 1.7 | 11.15 | 0.75 | 12.35 | 1.52 | 30.66 |
| 5kV Submersible pump oil cable | ||||||||
| Conductor specification | Conductor specification | Conductor specification | EPDM insulation | EPDM insulation | LEAD sheath | LEAD sheath | EPDM shealth | EPDM shealth |
| AWG | Area mm2 | Outer diameter mm | Thickness mm | Outer diameter mm | Thickness mm | Outer diameter mm | Thickness mm | Outer diameter mm |
| 6 | 13 | 4.12 | 1.9 | 7.92 | 0.75 | 9.52 | 1.52 | 24.57 |
| 4 | 20 | 5.19 | 1.9 | 8.99 | 0.75 | 10.59 | 1.52 | 26.87 |
| 2 | 33 | 6.54 | 1.9 | 10.34 | 0.75 | 11.94 | 1.52 | 29.78 |
| 1 | 42 | 7.35 | 1.9 | 11.15 | 0.75 | 12.75 | 1.52 | 31.53 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
