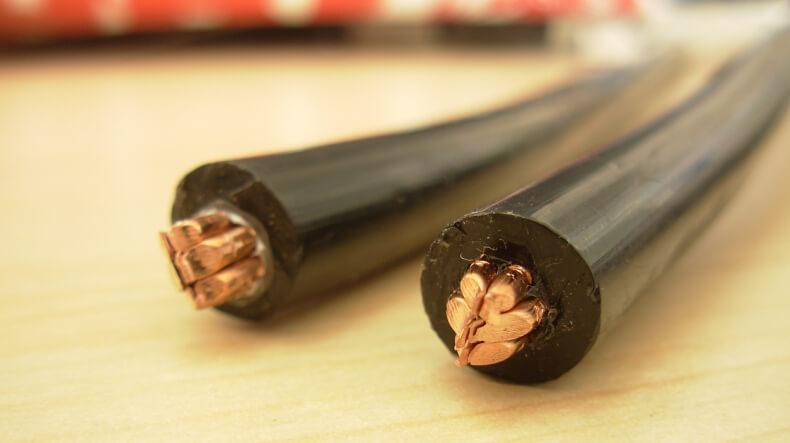

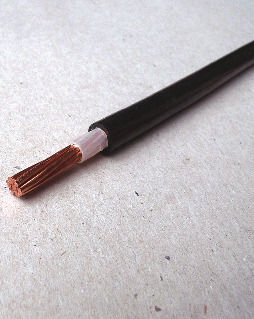

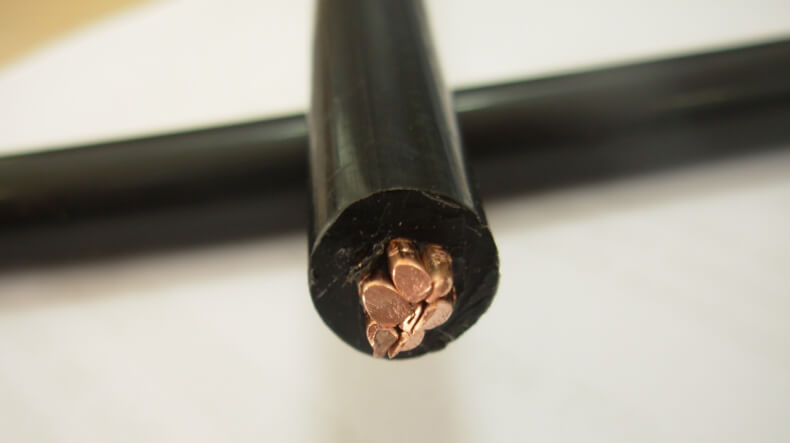

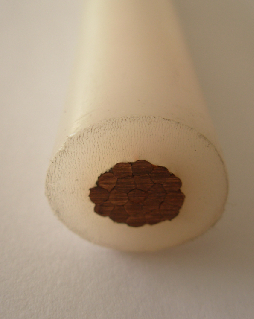

CATHODIC PROTECTION CABLE

The cable mainly used for impressed current cathodic protection system.

Features Rated voltage: DC600V
Long-term permissible working temperature :HMWPE-90℃, PVDF -135℃
The layout temperature of cable shall not be lower than -20℃
The bending radius: 20D,(D is outer diameter cable )

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Product introduction

Application The cable mainly used for impressed current cathodic protection system.

Features 1. Rated voltage: DC600V

2. Long-term permissible working temperature :HMWPE-90℃, PVDF -135℃

3. The layout temperature of cable shall not be lower than -20℃

4. The bending radius: 20D,(D is outer diameter cable )

Product Data Sheet

Type	Cross section mm²	conductor diameter mm	Insulation thickness mm	Armored size Steel wire dia. Min. (mm)	Approx. Cable diameter mm	Approx. Cable weight kg/km
CPY	10	4.05	2.79		9.2	142
	16	5.0	2.79		10.1	203
	25	6.30	2.79		11.9	298
	35	7.30	2.79		12.9	395
	50	8.30	3.18		14.7	553
	70	10.00	3.18		16.4	747
CPFY	10	4.05	0.51		8.27	139
	16	5.0	0.51		9.35	199
	25	6.30	0.51		10.87	293
	35	7.30	0.51		11.98	393
	50	8.30	0.51		13.48	543
	70	10.00	0.76		15.77	760
CPFV₃₃	10	4.05	0.51	0.8	11.87	286
	16	5.0	0.51	0.8	12.92	368
	25	6.30	0.51	1.25	14.22	483
	35	7.30	0.51	1.25	16.29	715
	50	8.30	0.51	1.25	17.77	897
	70	10.00	0.76	1.25	20.05	1178

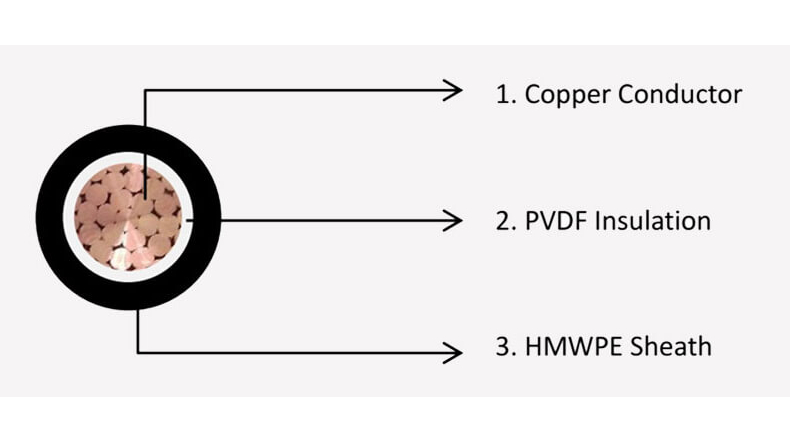

CPY-Cu/HMWPE; CPFY-CU/PVDF/HMWPE; CPFV₃₃-CU/PVDF/SWA/HMWPE

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
