Airfield Lighting Equipment Primary cable for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.
Application Airport Lighting Power Cable for the series circuit connecting the Constant Current Regulators and the isolating transformers, and between the isolating transformers.https://www.cncablegroup.com/new/news015.html
Standard 150/5345-7F , ICEA S-95-658, ICEA S-96-659 , ICEA S-93-639 , IEC 60228 , IEC60502

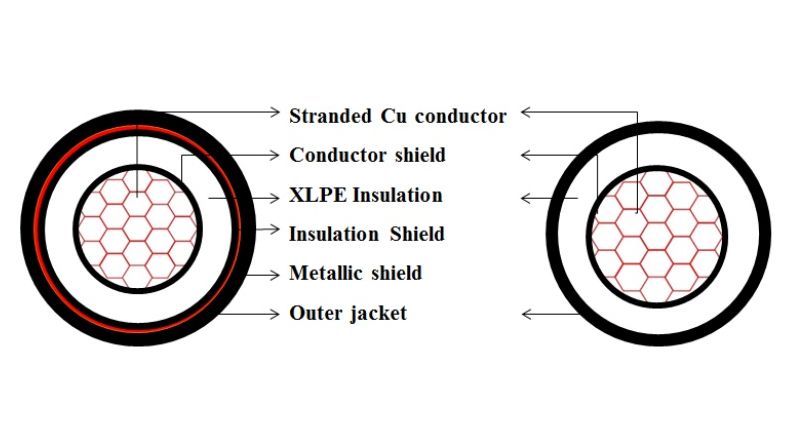

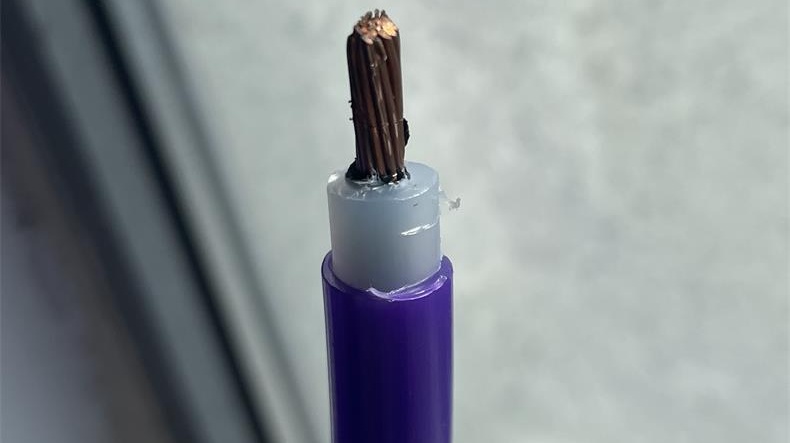

Construction Conductor: Stranded Annealed copper wire or tin-coated copper wire
Conductor shield: Semi-conducting XLPE Compound
Insulation: XLPE
Insulation shield: Semi-conducting XLPE Compound
Metallic shield : Copper tape
Jacket: PVC or PE
Note: Insulation shield and Metallic shield are not required for non-shield cable.
| Copper conductor | Cross section | 2×2.5mm2 | 1xAWG 10 | 1xAWG 12 |
| Number of strands | 7 | 7 | 7 | |
| Insulation | Material | TPE | PVC | PVC |
| Voltage to ground
(kV AC RMS) |
0.6 | 0.6 | 0.6 | |
| Thickness (mm) | 0.9 | 0.8 | 0.6 | |
| Filling | Material | PVC | – | – |
| Outer Jacket | Material | TPE | NY | NY |
| Thickness (mm) | 1.2 | 0.15 | 0.15 | |
| Outer Diameter | Approx. (mm) | 10.8 | 4.9 | 3.9 |
| Net weight (kg/km) | Copper | 67 | 51 | 32 |
| Cable | 159 | 62.5 | 39.5 |

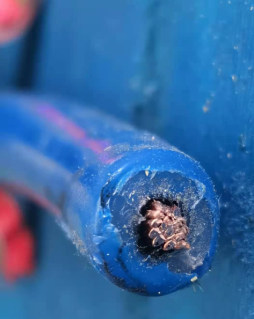

FAA-L-824 Type C Airport Lighting Power Cable 5KV
Single copper conductor /XLPE insulation / Shielded
|
Conductor Size |
Strand | Insulation system(mm) | Copper tape shield thickness
(mm) |
Nominal Jacket thickness (mm) | Approx. cable dia.*
(mm) |
Approx. cable weight (kg/km) |
||||
| AWG | mm2 | No.s | Semi-conducting layer | XLPE nominal thickness | Semi-conducting layer | PVC | PE | |||
| 8 | 8.37 | 7 or 19 | 0.3 | 2.16 | 0.25 | 0.06 | 1.8 | 14.5 | 270 | 240 |
| 6 | 13.3 | 7 or 19 | 0.3 | 2.16 | 0.25 | 0.06 | 1.8 | 15.5 | 340 | 300 |
| 4 | 21 | 7 or 19 | 0.3 | 2.16 | 0.25 | 0.06 | 1.8 | 16.7 | 430 | 390 |
| *Maximum allowable overall diameter should be stated before order . When duct space or other enclosure dimensions are not limited, it is desirable not to restrict the overall diameter | ||||||||||

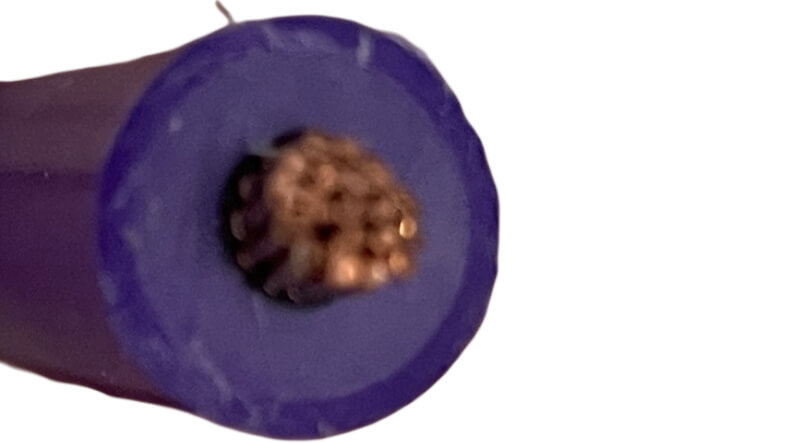

FAA-L-824 Type C Airport Lighting Power Cable 5KV
Single copper conductor /XLPE insulation / Non-Shielded
| Conductor Size | Strand | Insulation system(mm) | Nominal Jacket thickness (mm) | Approx. cable dia. (mm) | Approx. cable weight (kg/km) |
|||
| AWG | mm2 | / | Semi-conducting layer | XLPE Insulation nominal thickness | PVC | PE | ||
| 8 | 8.37 | 7 | 0.15 | 2.3 | 0.9 | 10.9 | 163.1 | 149 |
| 8 | 8.37 | 19 | 0.15 | 2.3 | 0.9 | 11.0 | 163.5 | 150 |
| 6 | 13.3 | 7 | 0.15 | 2.3 | 0.9 | 11.9 | 218.7 | 204 |
| 6 | 13.3 | 19 | 0.15 | 2.3 | 0.9 | 11.9 | 218.8 | 204 |
| 4 | 21 | 7 | 0.15 | 2.3 | 1.0 | 13.3 | 307.6 | 289 |
| 4 | 21 | 19 | 0.15 | 2.3 | 1.0 | 13.4 | 308.0 | 289 |
