Used by professional welders, for secondary voltage resistance welding leads and as a power supply for welding tools and applications that do not require over 600 volts AC.
Application Used by professional welders, for secondary voltage resistance welding leads and as a power supply for welding tools and applications that do not require over 600 volts AC.
Standard As per Customer’s technical specifications

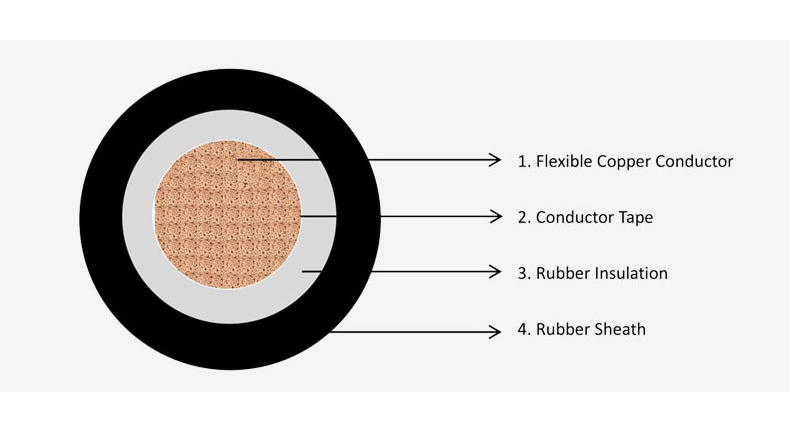

Construction Conductor: Flexible bare copper and coated copper, class5, class6
Insulation (optional) EPDM/EPR
Sheath : CPE/ PCP/ CSP/CR/EPDM

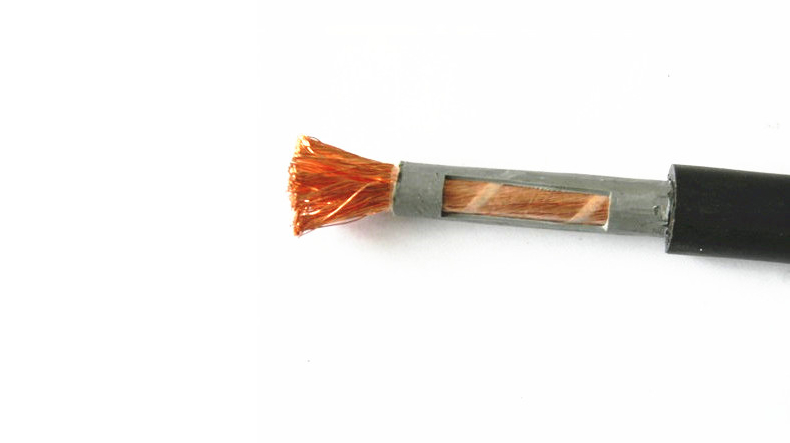

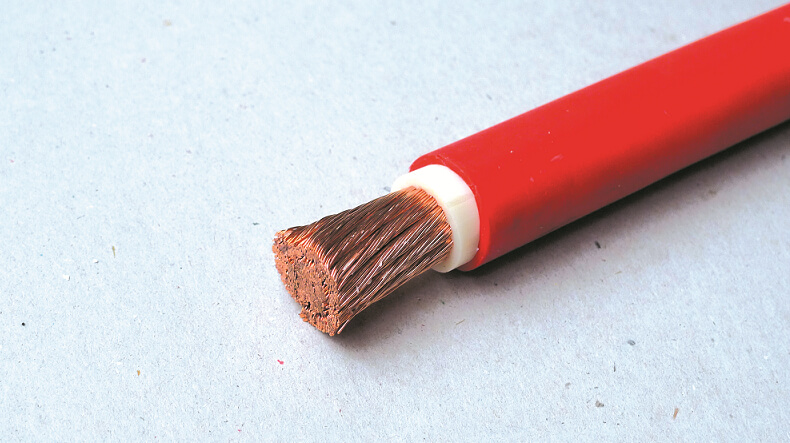

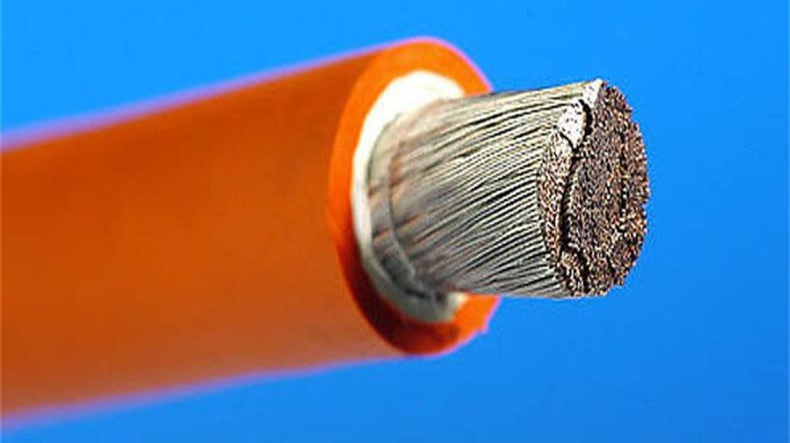

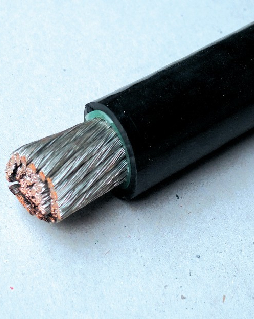

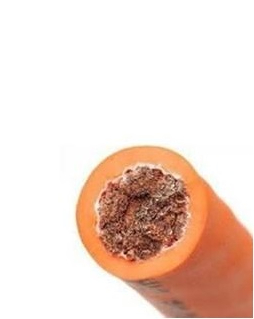

Description Rubber Insulated Electric Wire-Welding Cable
| Conductor Size | Cu Conductor | Insulation | Outer sheath | Approx. Overall Dia. | Approx. Weight | |
| Single Wire Dia. | Conductor Dia. | Nominal thickness | Thickness | |||
| mm2 | mm | mm | mm | mm | mm | kg/km |
| 6 | ≤0.31 | 3.69 | 1 | — | 5.7 | 68 |
| 10 | ≤0.41 | 4.89 | 1 | — | 6.9 | 108 |
| 16 | ≤0.41 | 6.15 | 1 | — | 8.2 | 165 |
| 25 | ≤0.41 | 7.89 | 1.2 | — | 10.3 | 257 |
| 35 | ≤0.41 | 8.98 | 1.2 | — | 11.4 | 350 |
| 50 | ≤0.41 | 10.7 | 1.4 | — | 13.5 | 498 |
| 70 | ≤0.51 | 12.6 | 1.4 | — | 15.4 | 684 |
| 95 | ≤0.51 | 14.58 | 1.6 | — | 17.8 | 926 |
| 120 | ≤0.51 | 17.34 | 1.6 | — | 20.5 | 1162 |
| Conductor Size | Cu Conductor | Insulation | Outer sheath | Approx. Overall Dia. | Approx. Weight | |
| Single Wire Dia. | Conductor Dia. | Nominal thickness | Thickness | |||
| mm2 | mm | mm | mm | mm | mm | kg/km |
| 6 | ≤0.31 | 3.69 | 1 | 1.4 | 8.5 | 114 |
| 10 | ≤0.41 | 4.89 | 1 | 1.4 | 9.7 | 161 |
| 16 | ≤0.41 | 6.15 | 1 | 1.4 | 11 | 227 |
| 25 | ≤0.41 | 7.89 | 1.2 | 1.4 | 13.1 | 333 |
| 35 | ≤0.41 | 8.98 | 1.2 | 1.4 | 14.2 | 433 |
| 50 | ≤0.41 | 10.7 | 1.4 | 1.4 | 16.3 | 595 |
| 70 | ≤0.51 | 12.6 | 1.4 | 1.4 | 18.2 | 794 |
| 95 | ≤0.51 | 14.58 | 1.6 | 1.5 | 20.8 | 1060 |
| 120 | ≤0.51 | 17.34 | 1.6 | 1.6 | 23.7 | 1327 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
