The cable is an innovative product designed specifically for use as overhead house service connection between the suppliers pole (where it can be T-connected to an ABC System).
Application The cable is an innovative product designed specifically for use as overhead house service connection between the suppliers pole (where it can be T-connected to an ABC System).
Standard IEC60502

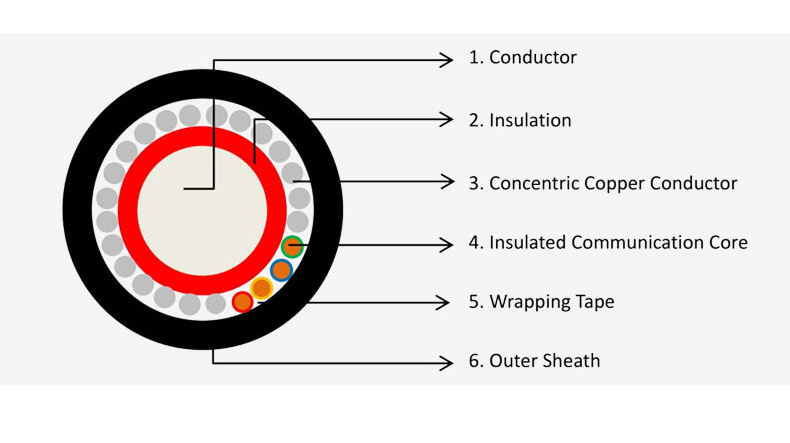

Construction Cu Conductor , XLPE Insulation , Neutral Conductor, Earth Conductor , Jacket with UV Resistance.
Description Airdac SNE cables
| Size | Conductor | Insulation thickness | Neutral | Earth | Sheath | Approx. Cable Dia. | Approx. weight | ||||
| Stranding. No. | Overall dia. | Stranding. No. | Single wire dia. | insulation | Stranding. No. | Single wire dia. | |||||
| mm2 | No.s | mm | mm | No.s | mm | mm | No.s | mm | mm | mm | mm |
| 10 | 7 | 4.0 | 1.0 | 7 | 1.33 | 0.26 | 3 | 1.78 | 1.6 | 12.8 | 320 |
| 16 | 7 | 5.1 | 1.0 | 7 | 1.7 | 0.26 | 3 | 2.1 | 1.6 | 14.0 | 450 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
