The cables are for service-entrance and other uses.
Application The cables are for service-entrance and other uses.
Standard IEC60502 and UL854

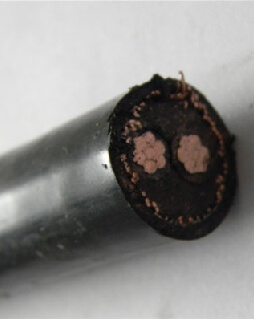

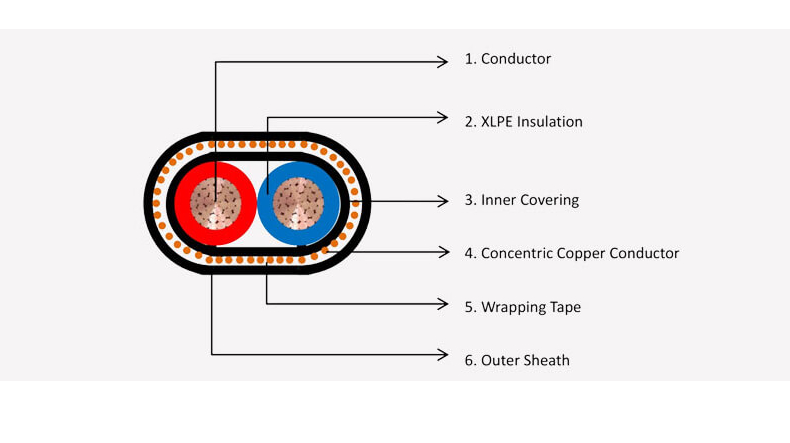

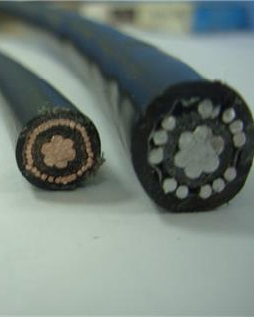

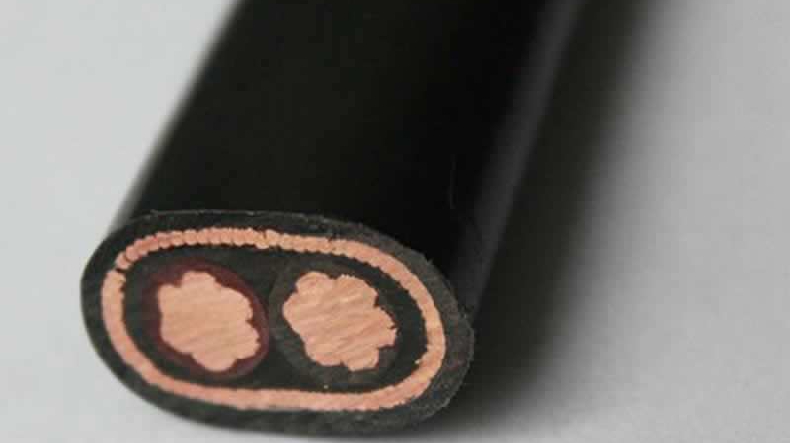

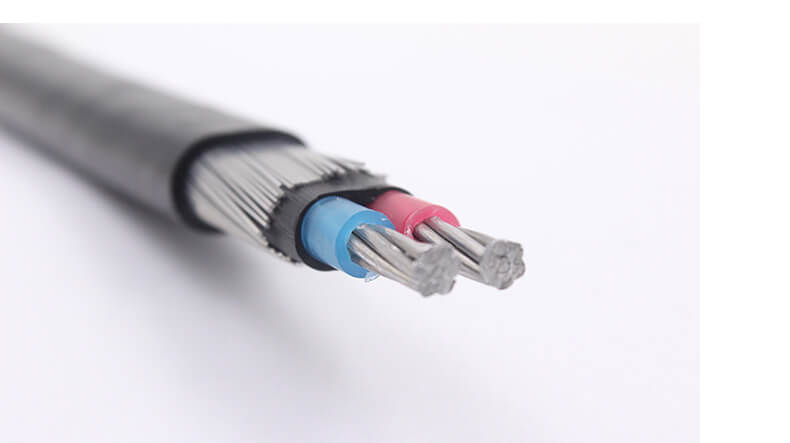

Construction Cu/Al/Al 8000/CCA Conductor , XLPE Insulation , Concentric Layer , XLPE/PE/PVC Jacket.
Features Rated voltage :0.6/1KV
Core number: 1+1C,2+1C,3+1C
Max. conductor operation temperature: 90℃ for XLPE Insulation
| Nominal cross-section | Strands number of conductor | Insulation nominal thickness | Concentric conductor | Jacket nominal thickness | Approx. overall dia. | Approx. weight. | DC resistance at 20℃ | ||
| Min. single wire dia. | Max. wire number | ||||||||
| mm2 | AWG | No.s | mm | mm | No.s | mm | mm | kg/km | Ω/KM |
| 2.08 | 14 | 7 | 1.14 | 0.51 | 96 | 1.14 | 13.3×9.1 | 154 | 8.78 |
| 2.63 | 13 | 7 | 1.14 | 0.51 | 96 | 1.14 | 13.7×9.3 | 173 | 6.97 |
| 3.31 | 12 | 7 | 1.14 | 0.51 | 96 | 1.14 | 14.1×9.5 | 196 | 5.53 |
| 4.17 | 11 | 7 | 1.14 | 0.51 | 96 | 1.14 | 14.6×9.8 | 226 | 4.39 |
| 5.26 | 10 | 7 | 1.14 | 0.51 | 96 | 1.14 | 15.3×10.1 | 262 | 3.476 |
| 6.63 | 9 | 7 | 1.14 | 0.51 | 96 | 1.52 | 18.4×12.0 | 351 | 2.758 |
| 8.37 | 8 | 7 | 1.14 | 0.51 | 96 | 1.52 | 19.2×12.5 | 411 | 2.186 |
| 10.55 | 7 | 7 | 1.52 | 0.51 | 96 | 1.52 | 20.2×13.0 | 485 | 1.734 |
| 13.30 | 6 | 7 | 1.52 | 0.51 | 96 | 1.52 | 21.2×13.5 | 574 | 1.375 |
| 16.77 | 5 | 7 | 1.52 | 0.51 | 96 | 2.03 | 23.6×15.3 | 718 | 1.091 |
| 21.15 | 4 | 7 | 1.52 | 0.51 | 96 | 2.03 | 25.0×16.0 | 856 | 0.8649 |
| 26.67 | 3 | 7 | 1.52 | 0.51 | 96 | 2.03 | 26.6×17.0 | 1030 | 0.686 |
| 33.62 | 2 | 7 | 1.52 | 0.51 | 96 | 2.03 | 28.4×17.9 | 1247 | 0.544 |
| 42.41 | 1 | 19 | 2.03 | 0.51 | 96 | 2.03 | 32.9×20.3 | 1589 | 0.4313 |
| 53.49 | 1/0 | 19 | 2.03 | 0.51 | 96 | 2.03 | 35.1×21.6 | 1929 | 0.3419 |
| 67.43 | 2/0 | 19 | 2.03 | 0.51 | 96 | 2.03 | 37.8×23.1 | 2358 | 0.2712 |
| 85.01 | 3/0 | 19 | 2.03 | 0.51 | 96 | 2.03 | 40.7×24.7 | 2888 | 0.2151 |
| 107.2 | 4/0 | 19 | 2.03 | 0.51 | 96 | 2.03 | 44.0×26.5 | 3551 | 0.1705 |

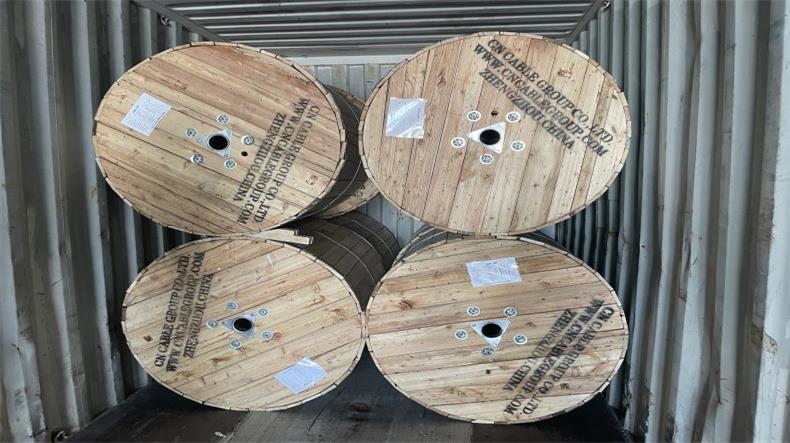

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
