The cables are suitable for movable facilities such as movable cranes for container, lifts, movable bigger facilities, grab dredgers and the sites of machinery stress caused by mining on the ground/well bottoms.
Application The cables are suitable for movable facilities such as movable cranes for container, lifts, movable bigger facilities, grab dredgers and the sites of machinery stress caused by mining on the ground/well bottoms.
Standard IEC 60228

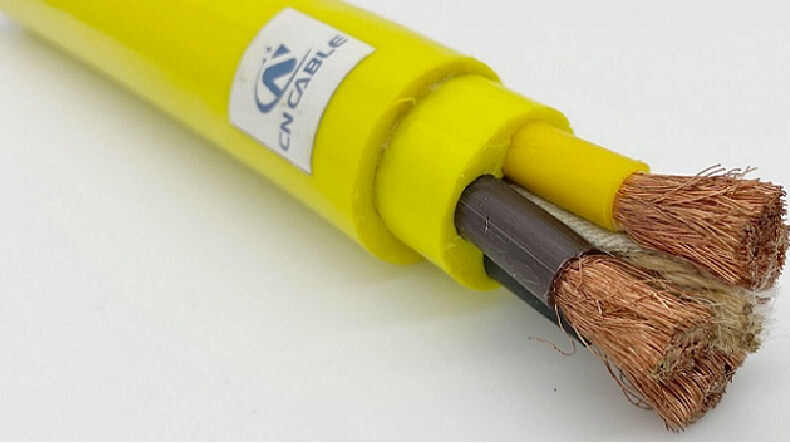

Construction Conductor :bare copper wire , flexible ,class5
Insulation: XLPE
Reinforce Core: High Tension Soft Textile Material
Inner sheath: Polyurethan , Yellow
Reinforce Layer: Braiding , High Tension Soft Textile Material
Outer Sheath: Polyurethan , Yellow
Core identification: colours acc. to VDE 0293 (HD308)
Features Rated voltage: 0.6/1KV
Max. Conductor operating Temperature: 90 °C
Permitted outer cable temperature, fixed, °C: -40 - +80 °C
Permitted outer cable temperature, moved, °C: -30 - +80 °C
Bending radius: fixed installation: 6 D , moving application 8D
Maximum tensile strength at the conductor: 25 N/mm²
Operating speed random, m/min.: 180 m/min.
Operating speed festoon, m/min.: 200 m/min.
Description REELING MINING CABLE
| Serial No. | Construction Description | Unit | Data |
| 1 | Phase core | ||
| 1.1 | Conductor | ||
| Material | / | Flexible Copper Conductor (Class 5) | |
| Size | sqmm | 3x35mm2 | |
| Conductor resistance at 0℃ | Ω/km | 0.554 | |
| 1.2 | Insulation | ||
| Insulation Material | / | Special Copolymer Material , Black/Grey/Brown | |
| Nominal Insulation Thickness | mm | 1.0 | |
| 2 | Earth core | ||
| 2.1 | Conductor | ||
| Material | / | Flexible Copper Conductor (Class 5) | |
| Size | sqmm | 3x6mm2 | |
| Conductor resistance at 0℃ | Ω/km | 3.3 | |
| 2.2 | Insulation | ||
| Insulation Material | / | Special Copolymer Material , Green/Yellow | |
| Nominal Insulation Thickness | mm | 0.8 | |
| 3 | Control core | ||
| 3.1 | Conductor | ||
| Material | / | Flexible Copper Conductor (Class 5) | |
| Size | sqmm | 2×1.5mm2 | |
| Conductor resistance at 0℃ | Ω/km | 13.3 | |
| 3.2 | Insulation | ||
| Insulation Material | / | Special Copolymer Material , Black | |
| Nominal Insulation Thickness | mm | 0.5 | |
| 4 | Reinforce Core | High Tension Soft Textile Material | |
| 5 | Inner Sheath | ||
| Material | Polyurethan , Yellow | ||
| Thickness | mm | 1.4 | |
| 6 | Braiding Reinforce Layer | ||
| Braiding Wires | High Tension Soft Textile Material | ||
| 7 | Outer Sheath | ||
| Material | Polyurethan , Yellow | ||
| Thickness | mm | 1.8 | |
| 8 | Overall cable dia. (apporx.) | mm | 34 |
| 9 | Operating temperature | -40℃ up to+80℃ | |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
