Mining cables are used for power connections of underground mobile transformers and similar equipment. It usually contains mobile cables for 0.6/1KV-8.7/10KV mining power plants.
Application Mining cables are used for power connections of underground mobile transformers and similar equipment. It usually contains mobile cables for 0.6/1KV-8.7/10KV mining power plants.
The cable is designed for use as trailing cables , shearer cable, reeling cable,etc.
Standard ICEA S-75-381 NEMA WC58 , UL Type W , L Type RHH or RHW

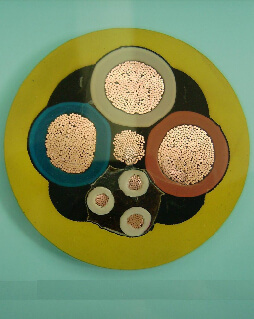

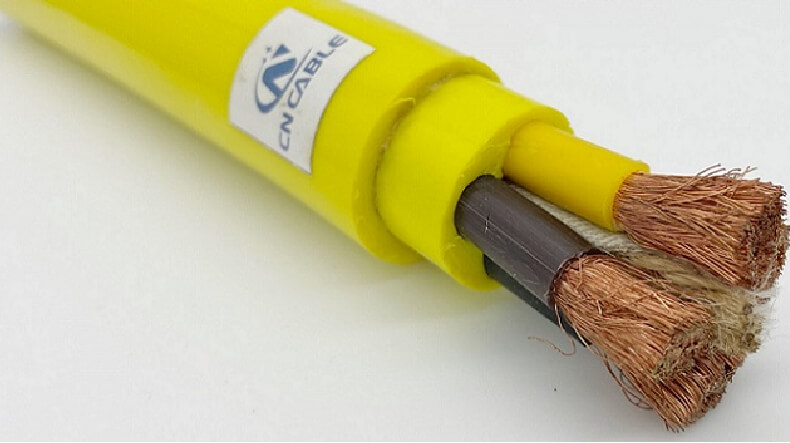

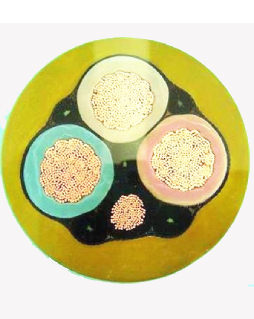

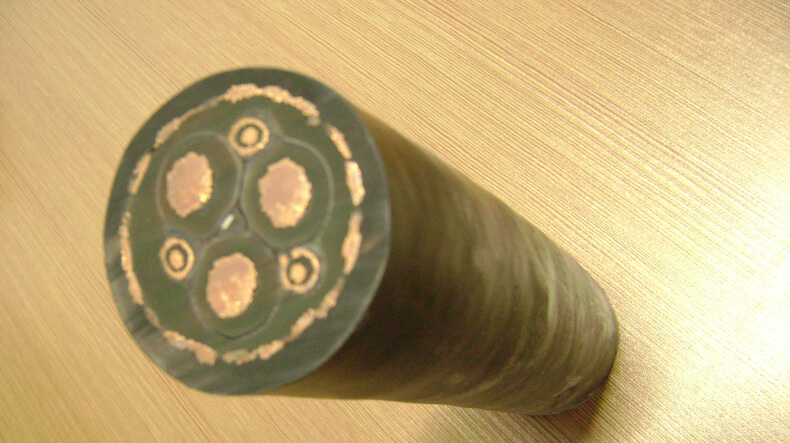

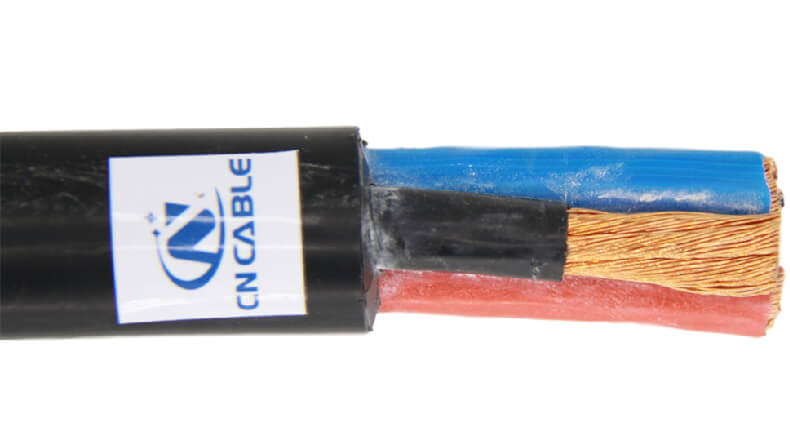

Construction Conductors: Flexible , Annealed Bare Copper wire , Tinned copper wire , class 5 , class6
Insulation: EPR
Shielding: Copper/Textile Braid , EIS/Copper Tape
Grounding Conductors: Type G: Insulated Bare Copper wire , tinned copper wire
Ground-Check Conductors: Insulated Bare Copper wire , tinned copper wire
Description Type W,Type G,Type G-GC,Type G-CGC
| Number of cores × section | Conductor | Semi conductive
rubber thickness |
Insulation
Thickness |
Outer
sheath thickness |
Approx. Cable dia. |
| mm2 | mm | mm | mm | mm | mm |
| 3×6+3×6/3 | 3.6 | 0.6 | 4.1 | 5.5 | 45.8 |
| 3×10+3×10/3 | 4.5 | 0.6 | 4.1 | 6.4 | 49.7 |
| 3×16+3×16/3 | 5.7 | 0.6 | 4.1 | 6.4 | 52.3 |
| 3×25+3×16/3 | 7.1 | 0.6 | 4.1 | 6.4 | 55.3 |
| 3×35+3×16/3 | 8.5 | 0.6 | 4.1 | 7.3 | 60.3 |
| 3×50+3×25/3 | 10.5 | 0.6 | 4.1 | 7.3 | 64.6 |
| 3×70+3×35/3 | 12.5 | 0.6 | 4.1 | 7.3 | 68.9 |
| 3×95+3×50/3 | 14.5 | 0.6 | 4.4 | 8.2 | 76.3 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
