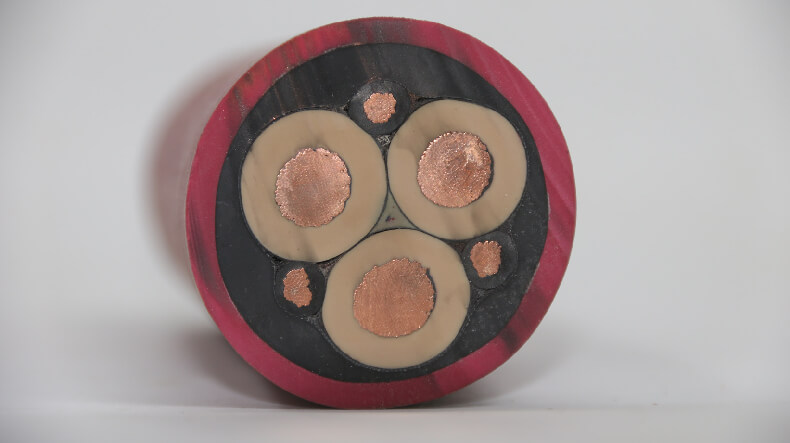

TYPE SHD-GC CABLE

Product introduction

Application Trailing cable on ac mining equipment where service conditions are severe and maximum safety is mandatory; such as power shovels and drag lines in open-pit mines, quarries, gantry cranes and slag reclaiming.

Used for high voltage distribution in underground mines where frequent relocation is necessary or where extra flexibility and toughness is desired.

Standard ICEA S-75-381

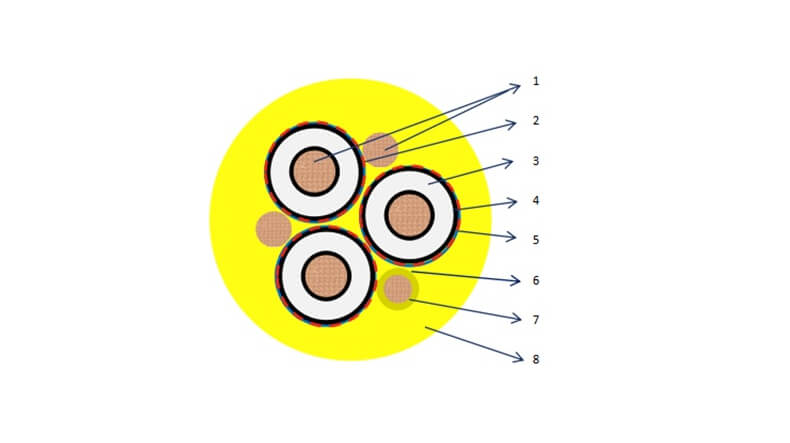

Construction 1. Phase, Grounding Conductors,Ground check conductors: Soft or annealed tinned coated copper conductor, rope lay flexible stranding per ASTM B172
2. Conductor Shield: A helically applied semiconducting tape.
3. Insulation: High quality, heat, moisture, ozone and thermosetting ethylene propylene rubber (EPR) meeting ICEA.
4. Insulation Shield: An overlapped semiconducting tape shall be applied over the insulation.
5. Metallic Component: A composite fiber-copper braid shield, tinned coated copper wires, Coverage minimum 60 ,with colored fibers for phase identification (black, white, red).
6. Assembly: Phase, ground check and grounding conductors cabled together with hygroscopic fillers and a binder tape.
7. Ground Check: Polypropylene insulation yellow colored for identification.
8. Jacket(CPE): Heavy duty or extra heavy duty chlorinated polyethylene (CPE) compound, applied in one layer over a fibrous reinforcement layer,Black or other colours can be provided.
9.Jacket(TPU):  Extra heavy duty, high torsion resistant, integral-filled, thermoplastic Polyurethane jacket, Black or other colours can be provided.

Description Type SHD-GC Cable
