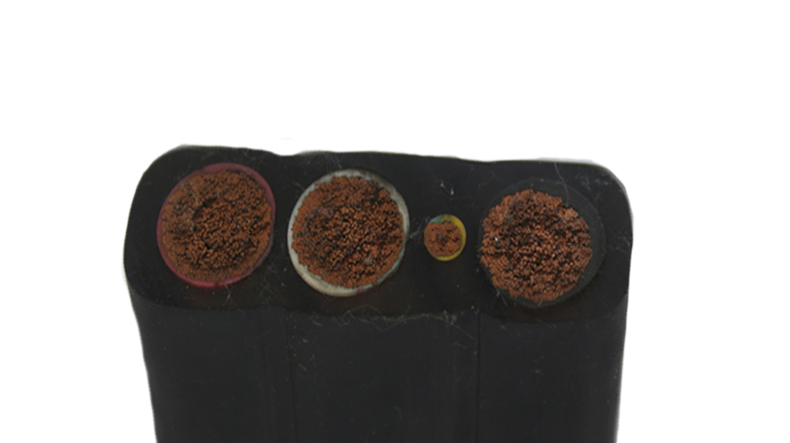

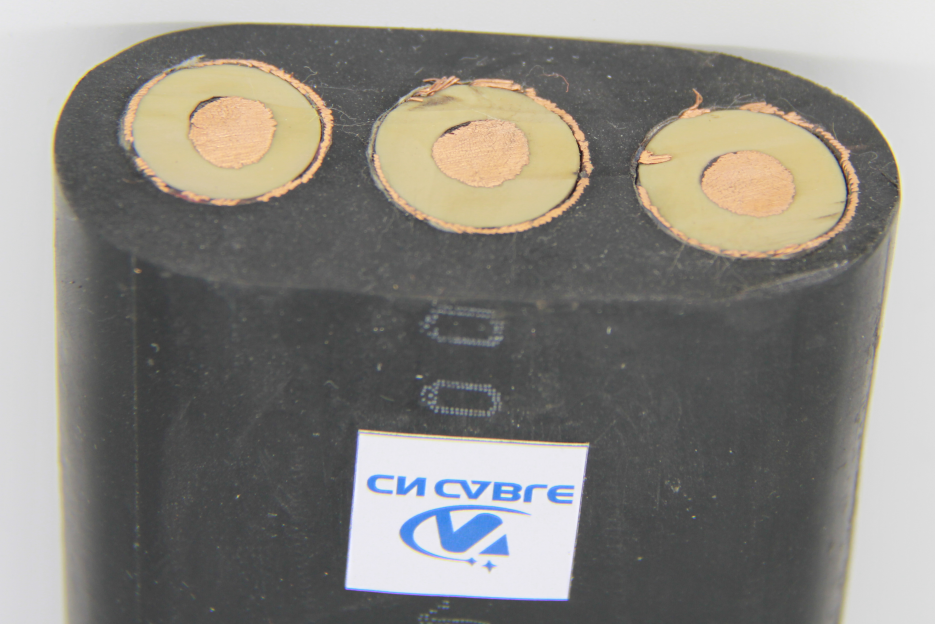

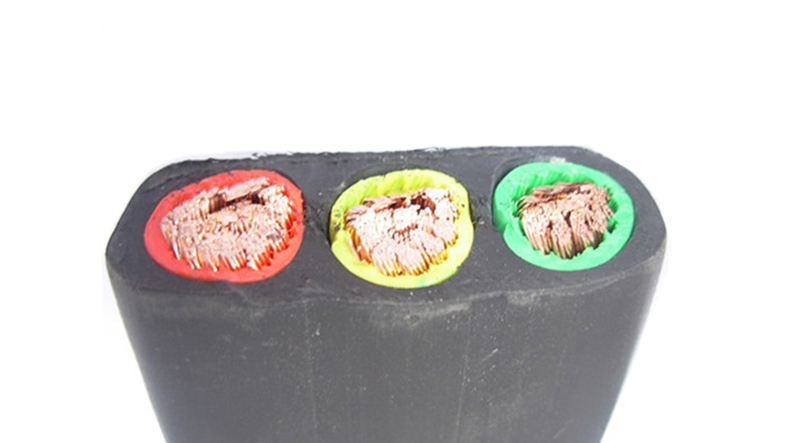

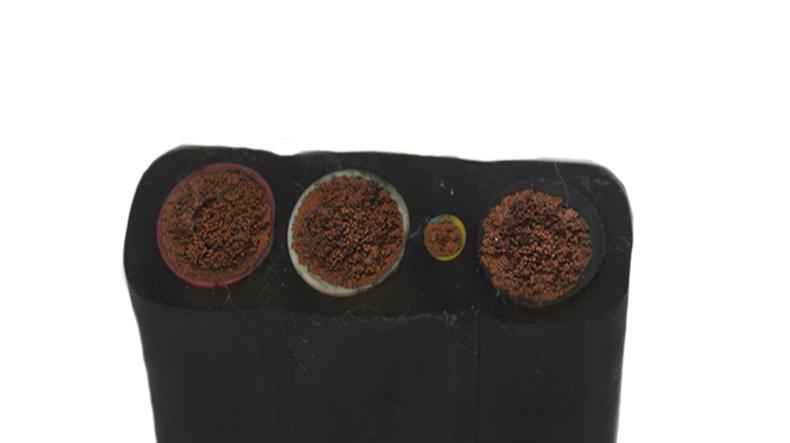

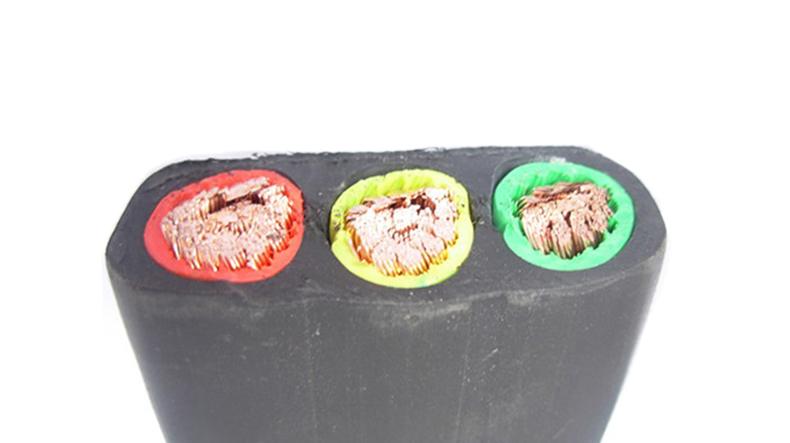

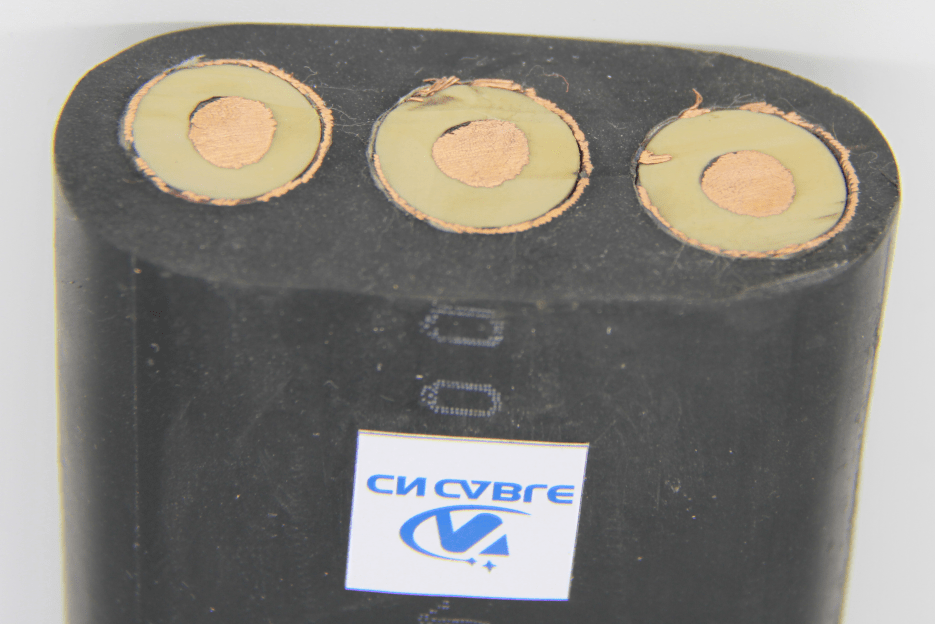

Submersible pump cable is a special type of electrical cable designed to withstand the harsh conditions found underwater.
Description: Submersible pump cable is a special type of electrical cable designed to withstand the harsh conditions found underwater.
Voltage: 600/1000V;
Construction: Copper/EPR/Crosslinked Elastomeric Sheathing Compounds;
Application: Submersible pump cables are designed to deliver electrical power to submersible pumps in underwater environments.
| No. Of Cores * Area (mm2) | Tinned Copper Conductor
Diameter (mm) |
Insulation
Thickness (mm) |
Outer
Sheath (mm) |
Cable Overall Diameter (mm) | Maximum
Resistance of Conductor at 20℃ |
|
| Min. | Max. | |||||
| 1*10mm2 | 3.8 | 1.2 | 1.8 | 8.6 | 9.7 | 1.95 |
| 1*16mm2 | 4.9 | 1.2 | 1.9 | 10.0 | 11.1 | 1.24 |
| 1*25mm2 | 6.1 | 1.4 | 2.0 | 11.9 | 13.1 | 0.795 |
| 1*35mm2 | 7.2 | 1.4 | 2.2 | 13.0 | 14.3 | 0.565 |
| 1*50mm2 | 8.9 | 1.6 | 2.4 | 15.7 | 17.1 | 0.393 |
| 1*70mm2 | 10.6 | 1.6 | 2.6 | 17.8 | 19.3 | 0.277 |
| 1*95mm2 | 12.3 | 1.8 | 2.8 | 20.7 | 22.7 | 0.210 |
| 1*120mm2 | 14.2 | 1.8 | 3.0 | 22.2 | 24.3 | 0.164 |
| 1*150mm2 | 15.5 | 2.0 | 3.2 | 24.0 | 26.1 | 0.132 |
| 1*185mm2 | 17.0 | 2.2 | 3.4 | 28.0 | 30.3 | 0.108 |
| 1*240mm2 | 19.5 | 2.4 | 3.5 | 31.1 | 33.6 | 0.0817 |
| 1*300mm2 | 22.2 | 2.6 | 3.6 | 34.4 | 37.1 | 0.0654 |
| 2*10mm2 | 3.8 | 1.2 | 3.1 | 18.3 | 19.7 | 1.95 |
| 2*16mm2 | 4.9 | 1.2 | 3.3 | 20.5 | 22.6 | 1.24 |
| 2*25mm2 | 6.1 | 1.4 | 3.6 | 24.4 | 26.7 | 0.795 |
| 3*35mm2 | 7.2 | 1.4 | 4.1 | 26.4 | 29.3 | 0.565 |
| 3*50mm2 | 8.9 | 1.6 | 4.5 | 33.8 | 36.5 | 0.393 |
| 3*70mm2 | 10.6 | 1.6 | 4.8 | 37.9 | 40.8 | 0.277 |
| 3*95mm2 | 12.3 | 1.8 | 5.3 | 43.5 | 47.3 | 0.210 |
| 4*120mm2 | 14.2 | 1.8 | 6.0 | 53.0 | 57.2 | 0.164 |
| 4*150mm2 | 15.5 | 2.0 | 6.5 | 57.9 | 62.7 | 0.132 |
| 4*185mm2 | 17.0 | 2.2 | 6.6 | 63.2 | 68.6 | 0.108 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
