Mining cables are utilized in various types of mining applications and intended for long-term performance in the extremely harsh environment, while providing the greatest levels of safety and productivity.
Application Mining cables are utilized in various types of mining applications and intended for long-term performance in the extremely harsh environment, while providing the greatest levels of safety and productivity. These cables offer excellent flexibility, torsion and drag resistance, in addition to exceptional electrical, temperature parameters, abrasion and flame resistance.
Standard GB/T12972 , ICEA S 75-381
Features Conductor operating temperature is 65℃，installation temp. shall not less than 0℃. Cable bending dia. is 15（D+d）±5%。

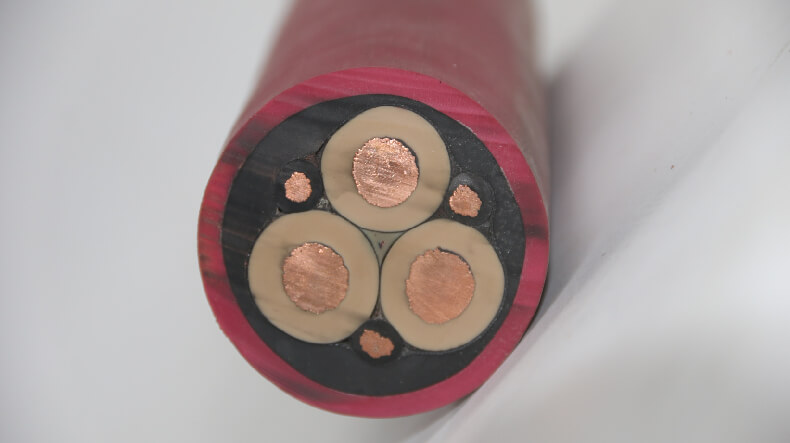

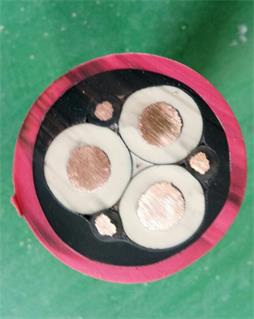

Description Rubber Insulated Mining Cable
| Number of cores×section | Tinned copper conductor | Semi-conductive rubber thickness | Insulation Thickness | Outer sheath thickness | Approx. Cable dia. |
| mm2 | mm | mm | mm | mm | mm |
| 3×6+3×6/3 | 3.6 | 0.6 | 4.1 | 5.5 | 45.8 |
| 3×10+3×10/3 | 4.5 | 0.6 | 4.1 | 6.4 | 49.7 |
| 3×16+3×16/3 | 5.7 | 0.6 | 4.1 | 6.4 | 52.3 |
| 3×25+3×16/3 | 7.1 | 0.6 | 4.1 | 6.4 | 55.3 |
| 3×35+3×16/3 | 8.5 | 0.6 | 4.1 | 7.3 | 60.3 |
| 3×50+3×25/3 | 10.5 | 0.6 | 4.1 | 7.3 | 64.6 |
| 3×70+3×35/3 | 12.5 | 0.6 | 4.1 | 7.3 | 68.9 |
| 3×95+3×50/3 | 14.5 | 0.6 | 4.4 | 8.2 | 76.3 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
