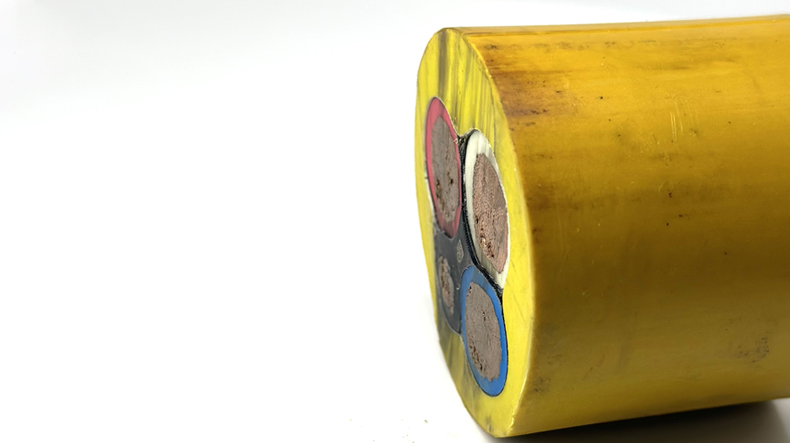

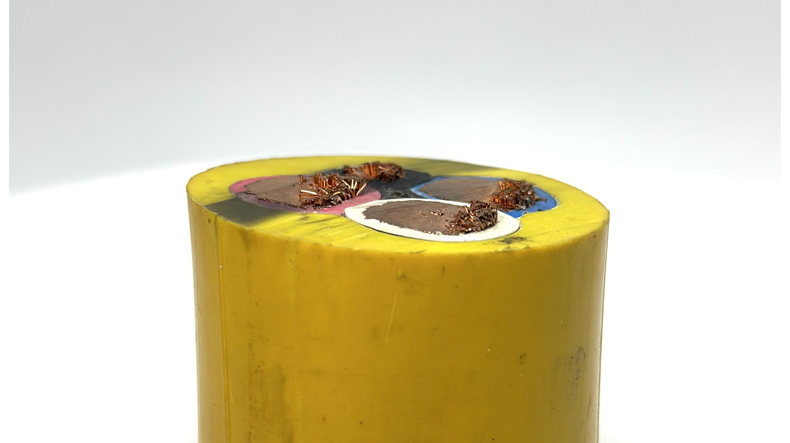

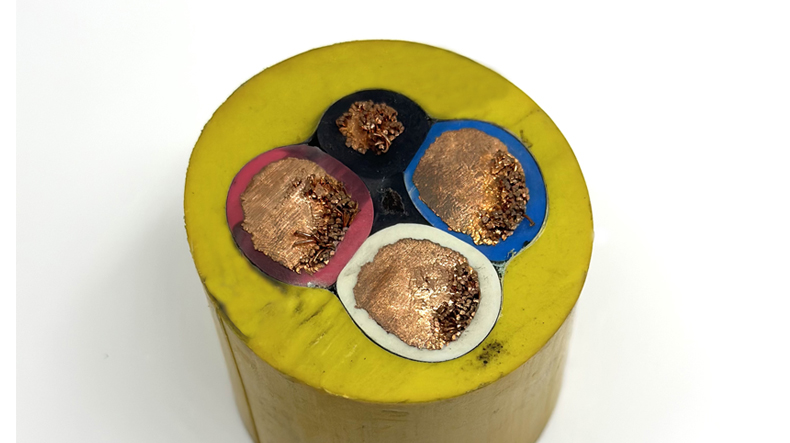

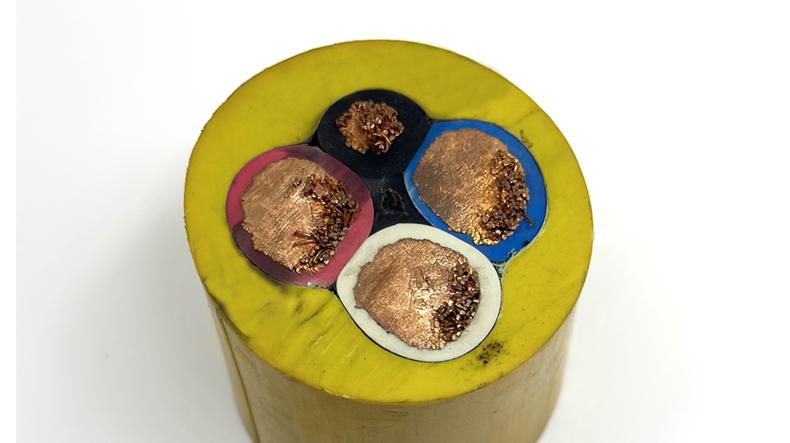

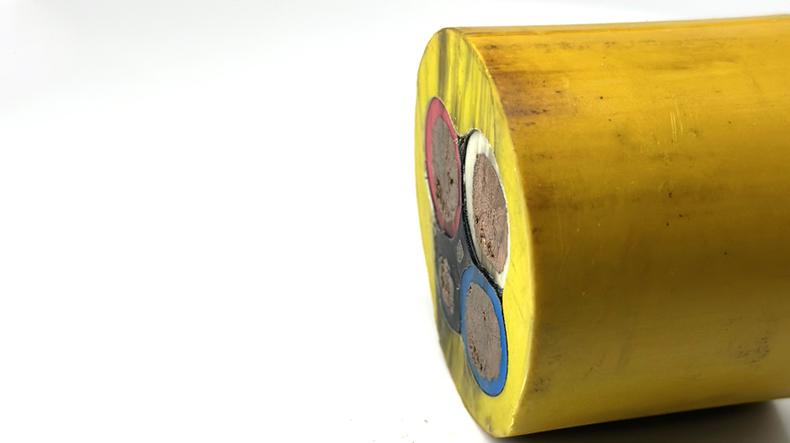

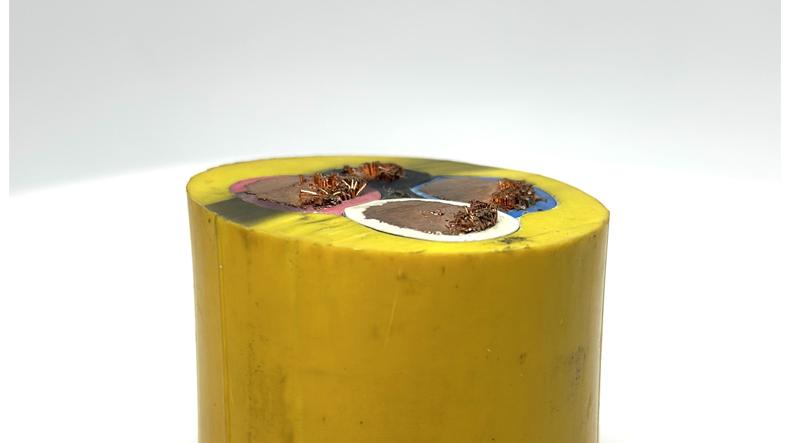

NSSHOEU-J cable is a type of heavy-duty power cable designed for harsh environments.
Description: NSSHOEU-J cable is a type of heavy-duty power cable designed for harsh environments.
Reference Standard: IEC60228 , DIN VDE 0250-812;
Rating Voltage: 0.6/1kV;

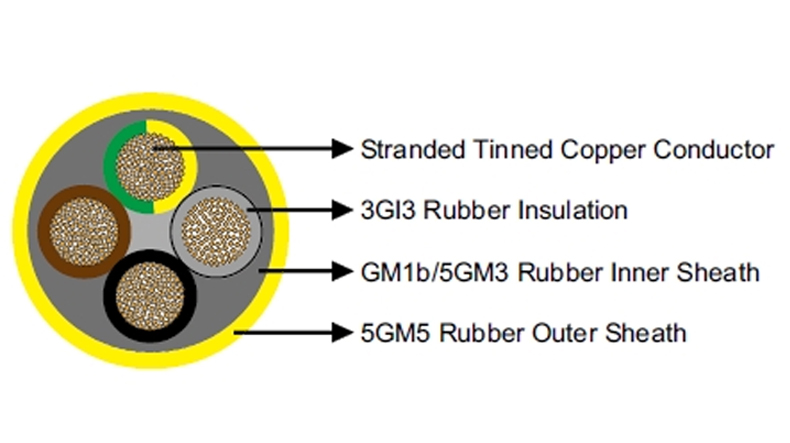

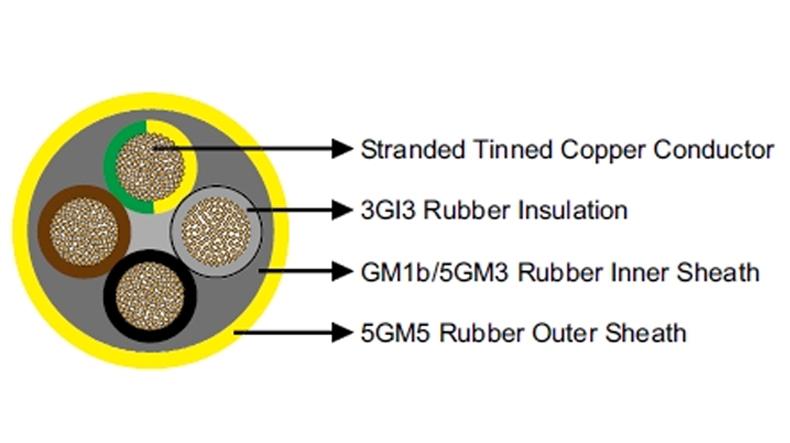

Structure: Copper/EPR/Rubber compound;
Application: NSSHOEU-J CABLE is used for flexible use and fixed installation in mine, in quarries, on construction sites and similar applications.
| Cable size | Phase core | Neutral/earth core | Approx. Cable dia. | Approx. Cable weight | ||
| Conductor wire dia. | Insulation thickness | Conductor wire dia. | Insulation thickness | |||
| No.x mm2 | mm | mm | mm | mm | mm | kg/km |
| 3×50+25/3 | ≤0.41 | 1.6 | ≤0.41 | 1.40 | 41.7 | 3000 |
| 3×70+35/3 | ≤0.51 | 1.6 | ≤0.51 | 1.40 | 45.2 | 4000 |
| 3×95+50/3 | ≤0.51 | 1.8 | ≤0.51 | 1.40 | 51.9 | 5500 |
| 3×120+70/3 | ≤0.51 | 1.8 | ≤0.51 | 1.40 | 57.2 | 6800 |
| 3×150+70/3 | ≤0.51 | 2 | ≤0.51 | 1.40 | 60.4 | 8000 |
| 3×185+95/3 | ≤0.51 | 2.2 | ≤0.51 | 1.40 | 67.5 | 10000 |
| 3×240+120/3 | ≤0.51 | 2.4 | ≤0.51 | 1.40 | 75.4 | 12000 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
