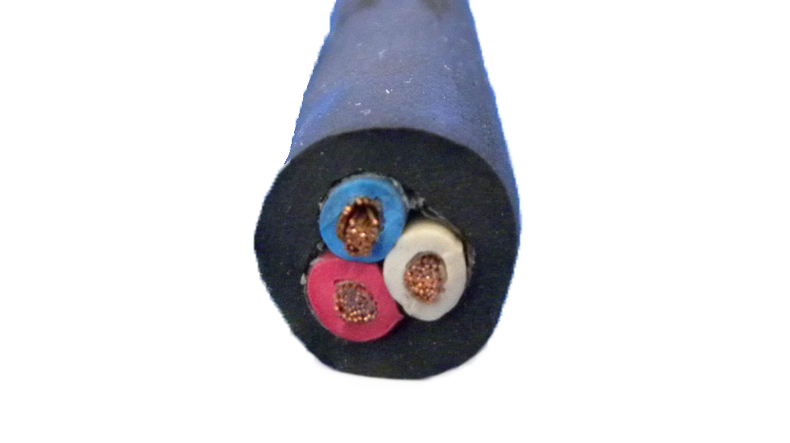

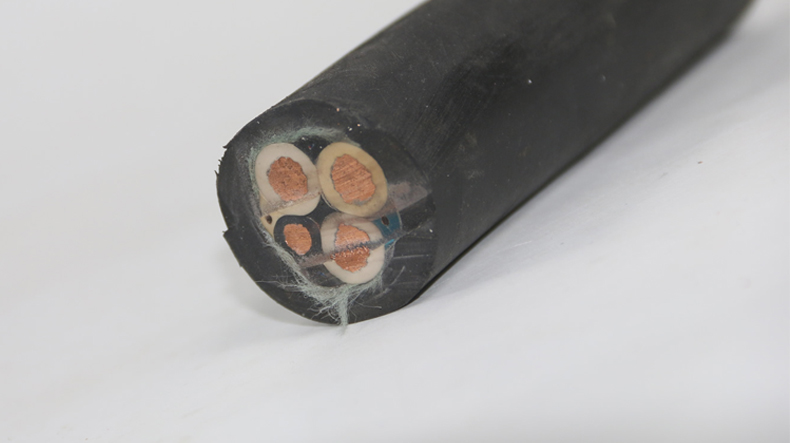

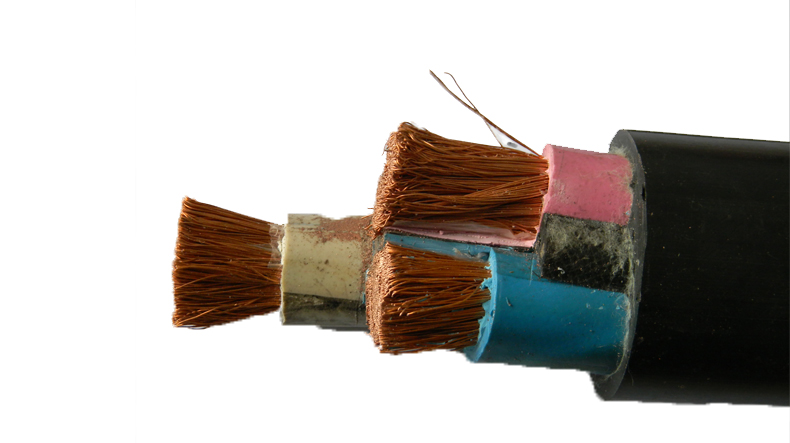

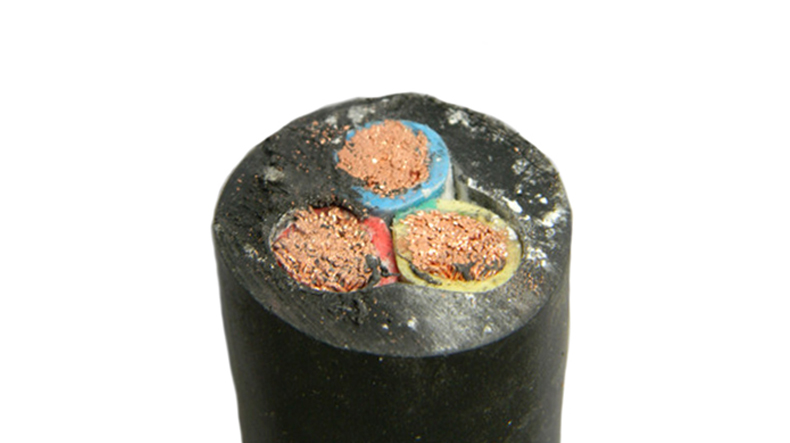

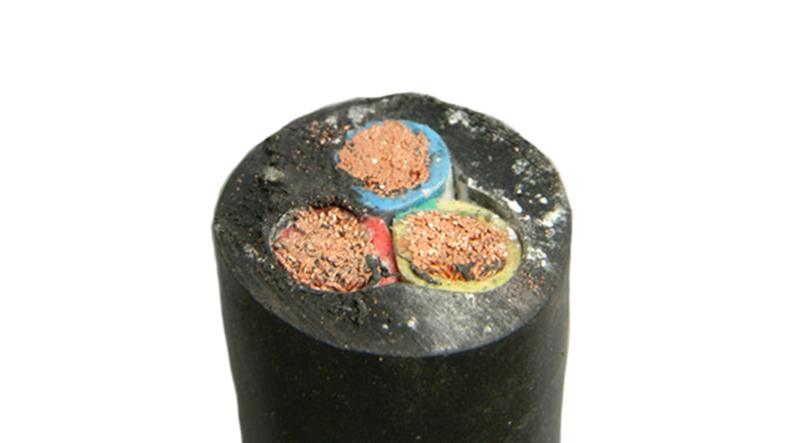

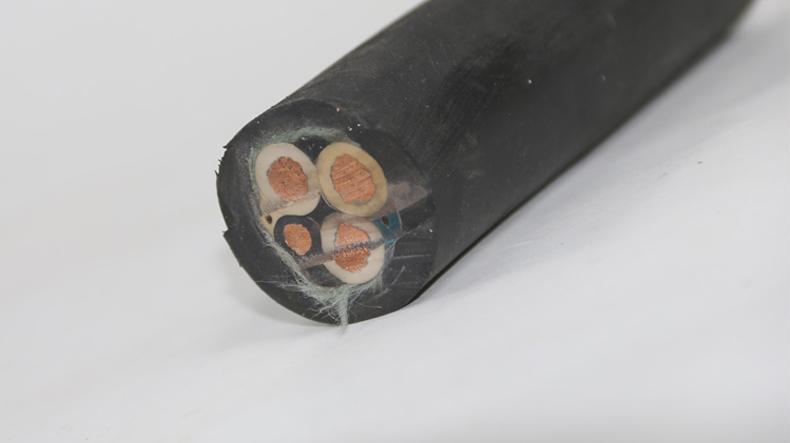

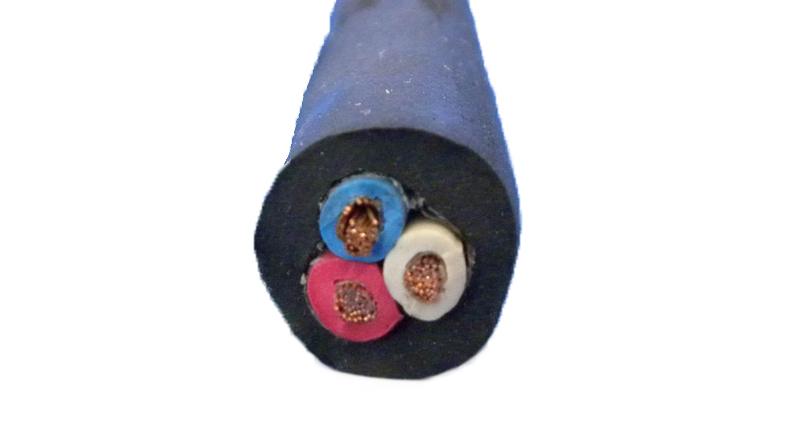

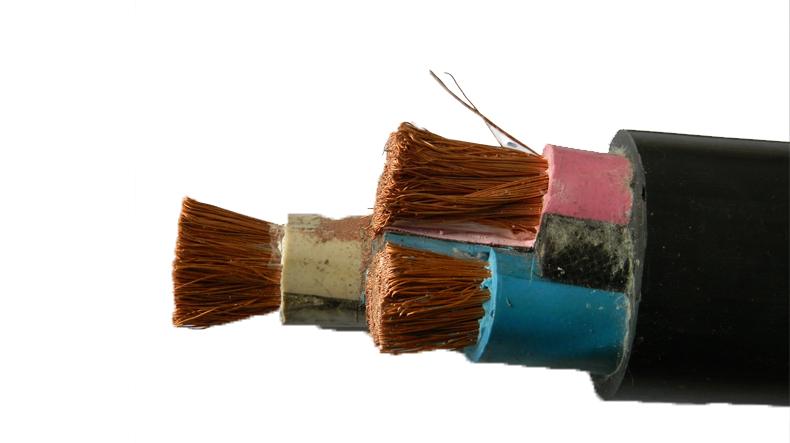

(N)SHÖU O/J cable is a type of industrial cable designed for normal duty, with special resistance to oil, suitable for underground installation, and meeting European harmonized standards.
Description: (N)SHÖU O/J cable is a type of industrial cable designed for normal duty, with special resistance to oil, suitable for underground installation, and meeting European harmonized standards.
Voltage: 0.6/1kV;
Construction: Copper/Rubber Compound/Heavy Duty Rubber Compound;
Standard: VDE 0295, EN 60228;
Application: (N)SHÖU O/J cable suitable for mining applications alongside conveyor belts, for energy supply to equipment in movement, industrial apparatus and submersed pumps.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | CONDUCTOR DIAMETER mm | MINIMUM OVERALL DIAMETER mm | MAXIMUM OVERALL DIAMETER mm | MAXIMUM TENSILE LOAD N |
| 3 | 1.5 | 1.5 | 9.7 | 10.3 | 68 |
| 3 | 2.5 | 1.9 | 11.1 | 11.7 | 113 |
| 3 | 4 | 2.4 | 13.2 | 13.8 | 180 |
| 3 | 6 | 2.9 | 14.4 | 15 | 270 |
| 3 | 10 | 3.8 | 17.4 | 18.5 | 450 |
| 3 | 16 | 4.8 | 19.5 | 20.6 | 720 |
| 3 | 25 | 6.1 | 23.7 | 24.8 | 1125 |
| 3 | 35 | 7.2 | 26.6 | 27.7 | 1575 |
| 3 | 50 | 8.9 | 31.8 | 33 | 2250 |
| 3 | 70 | 10.6 | 35.3 | 36.5 | 3150 |
| 3 | 95 | 12.3 | 40.9 | 42.6 | 4275 |
| 3 | 120 | 13.8 | 43.4 | 45.1 | 5400 |
| 3 | 150 | 15.5 | 47.8 | 49.5 | 6750 |
| 3 | 185 | 17 | 53.1 | 55.4 | 8325 |
| 4 | 1.5 | 1.5 | 10.5 | 11.1 | 90 |
| 4 | 2.5 | 1.9 | 12.9 | 13.5 | 150 |
| 4 | 4 | 2.4 | 14.3 | 14.9 | 240 |
| 4 | 6 | 2.9 | 15.7 | 16.3 | 360 |
| 4 | 10 | 3.8 | 19.1 | 20.2 | 600 |
| 4 | 16 | 4.8 | 22 | 23.1 | 960 |
| 4 | 25 | 6.1 | 27 | 28.1 | 1500 |
| 4 | 35 | 7.2 | 29.2 | 30.4 | 2100 |
| 4 | 50 | 8.9 | 35 | 36.2 | 3000 |
| 4 | 70 | 10.6 | 38.8 | 40.5 | 4200 |
| 4 | 95 | 12.3 | 45.1 | 46.8 | 5700 |
| 4 | 120 | 13.8 | 50 | 51.8 | 7200 |
| 4 | 150 | 15.5 | 55 | 57.3 | 9000 |
| 4 | 185 | 17 | 61 | 63.3 | 11100 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
