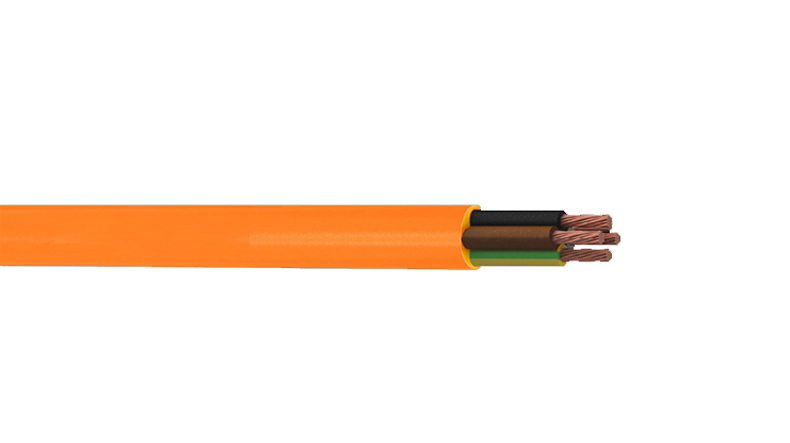

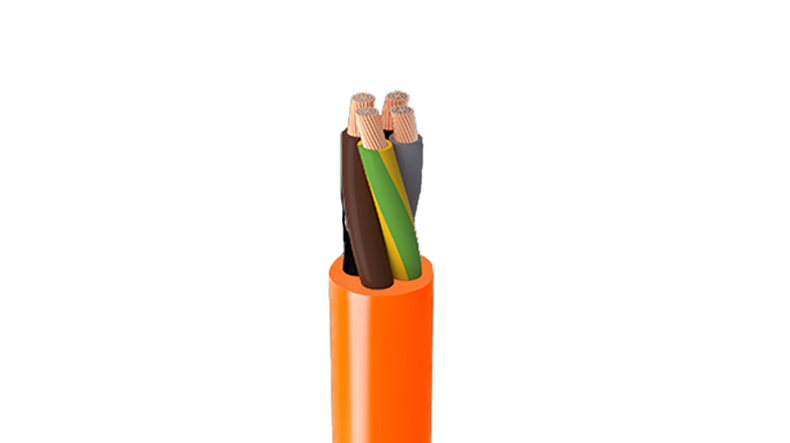

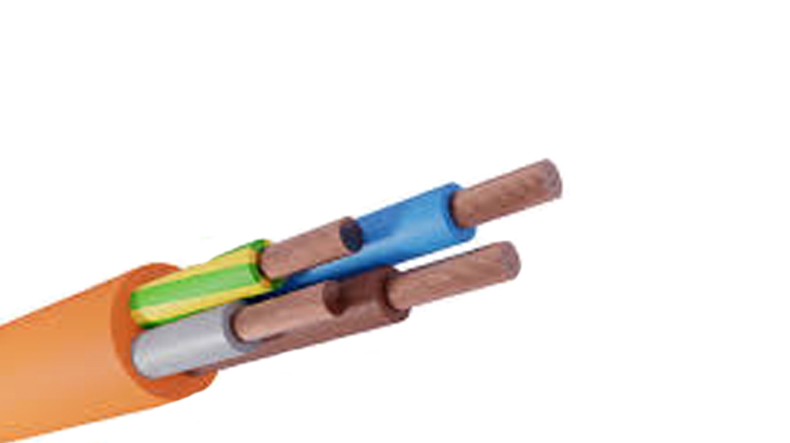

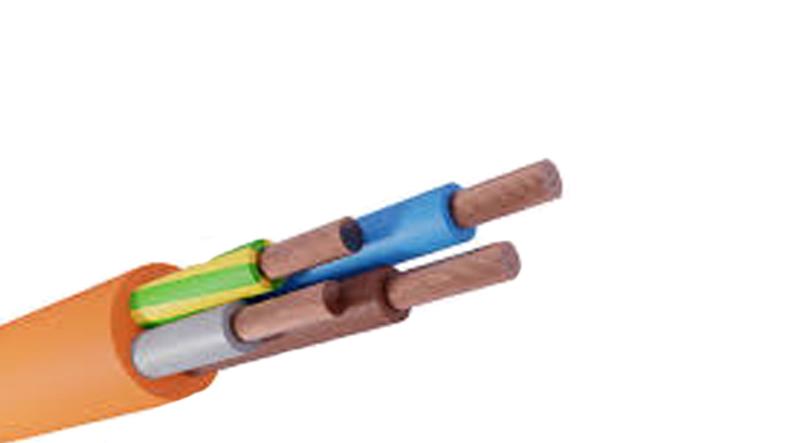

H07BQ-F cable is a flexible rubber-sheathed cable that is flame-retardant. It is often used in environments where flexibility and resistance to mechanical stress are required, such as construction sites, industrial plants, and workshops. Additionally, its flame-retardant properties make it suitable for applications where fire safety is a concern.
Description: H07BQ-F cable is a flexible rubber-sheathed cable that is flame-retardant. It is often used in environments where flexibility and resistance to mechanical stress are required.
Voltage: 450/750V;
Standard: DIN VDE 0282-10;

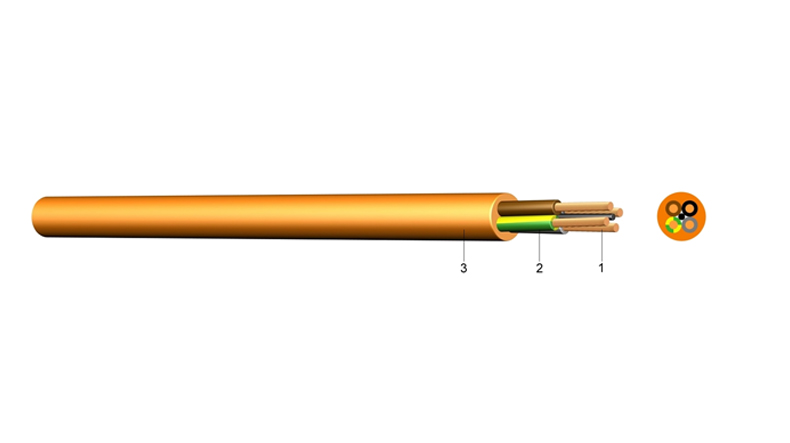

Construction: Conductor: Tinned or Bare Copper; Insulation: Rubber Compound; Sheath: PUR;
Feature: Oil-resistant; High Temperature Resistance;
Application:This termination and connection cable with high mechanical stress-resistance can be used in dry, damp or wet rooms as well as in the open -air. It is ideal for application in industrial plants, building sites, in fact everywhere where extreme wear and tear resistance is required and where the cable is subjected to hard utilisation.
| Number of cores and nominal cross section mm² | Copper figure kg/km | Cond.construction (appr. value) mm | Overall diameter appr. mm | Weight appr. kg / km | Number of cores and nominal cross section mm² | Copper figure kg/km | Cond.construction (appr. value) mm | Overall diameter appr. mm | Weight appr. kg / km |
| 2 X1,5 | 30 | 30 x 0,26 | 8,8 | 88 | 2 X1,5 | 30 | 30 x 0,26 | 8,8 | 88 |
| 3 G 1,5 | 45 | 30 x 0,26 | 9,3 | 110 | 3 G 1,5 | 45 | 30 x 0,26 | 9,3 | 110 |
| 4 G 1,5 | 60 | 30 x 0,26 | 10,3 | 140 | 4 G 1,5 | 60 | 30 x 0,26 | 10,3 | 140 |
| 5 G 1,5 | 75 | 30 x 0,26 | 11,2 | 169 | 5 G 1,5 | 75 | 30 x 0,26 | 11,2 | 169 |
| 7 G 1,5 | 105 | 30 x 0,26 | 14,0 | 291 | 7 G 1,5 | 105 | 30 x 0,26 | 14,0 | 291 |
| 3 G 2,5 | 75 | 50 x 0,26 | 11,0 | 163 | 3 G 2,5 | 75 | 50 x 0,26 | 11,0 | 163 |
| 4 G 2,5 | 100 | 50 x 0,26 | 12,2 | 208 | 4 G 2,5 | 100 | 50 x 0,26 | 12,2 | 208 |
| 5 G 2,5 | 125 | 50 x 0,26 | 13,5 | 257 | 5 G 2,5 | 125 | 50 x 0,26 | 13,5 | 257 |
| 7 G 2,5 | 175 | 50 x 0,26 | 16,5 | 431 | 7 G 2,5 | 175 | 50 x 0,26 | 16,5 | 431 |
| 4 G 4 | 160 | 56 x 0,31 | 14,0 | 293 | 4 G 4 | 160 | 56 x 0,31 | 14,0 | 293 |
| 5 G 4 | 200 | 56 x 0,31 | 15,6 | 365 | 5 G 4 | 200 | 56 x 0,31 | 15,6 | 365 |
| 5 G 6 | 300 | 84 x 0,31 | 17,6 | 504 | 5 G 6 | 300 | 84 x 0,31 | 17,6 | 504 |
| 5 G 10 | 500 | 80 x 0,41 | 23,2 | 962 | 5 G 10 | 500 | 80 x 0,41 | 23,2 | 962 |
| 5 G 16 | 800 | 128 x 0,41 | 27,1 | 1.379 | 5 G 16 | 800 | 128 x 0,41 | 27,1 | 1.379 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
