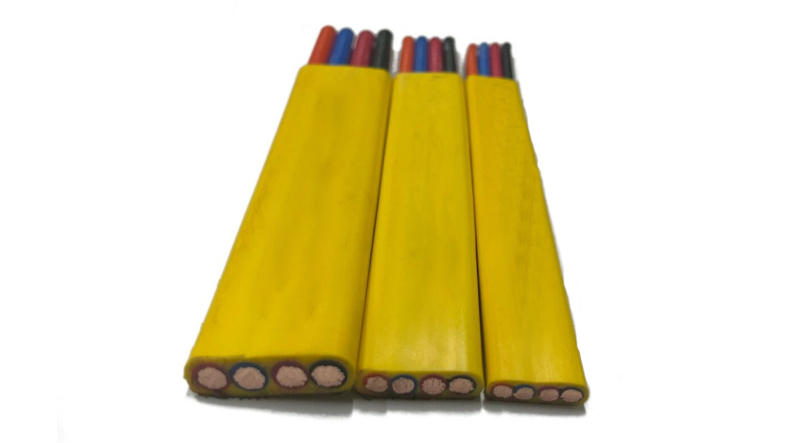

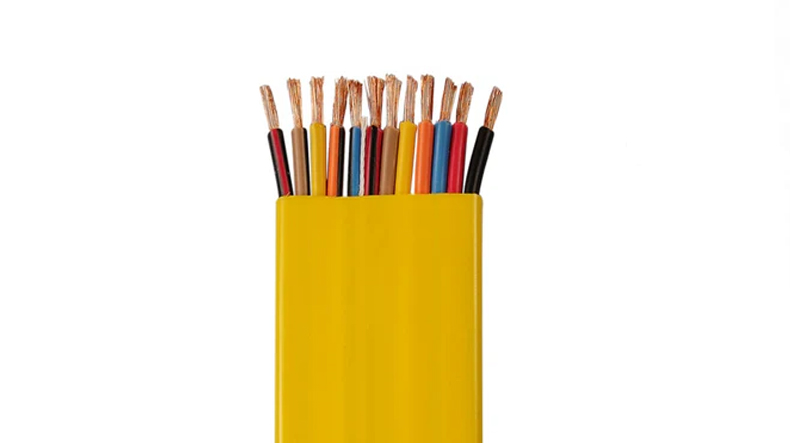

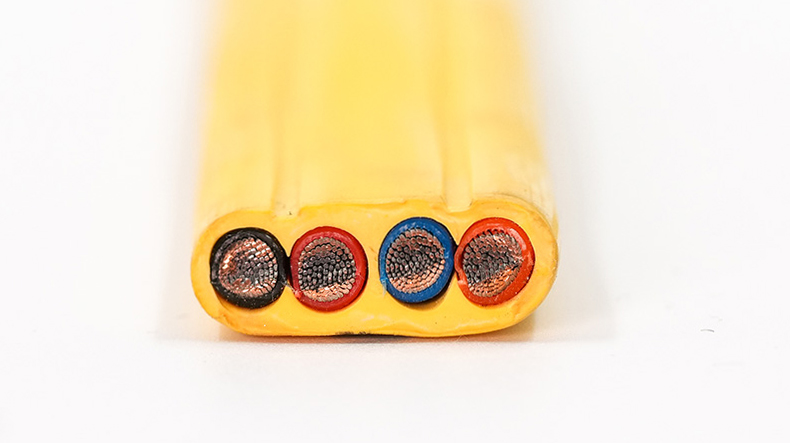

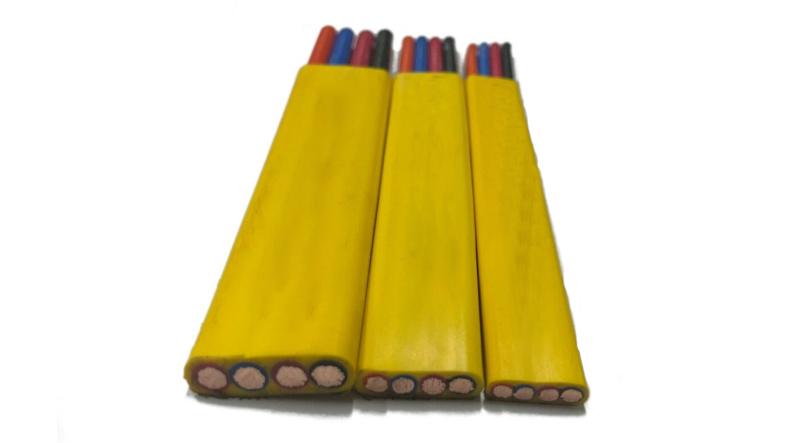

Festoon cable is a type of specialized cable used in industrial applications.It’s designed to provide power and control signals to moving machinery that traverses along a fixed path, such as a crane moving along a runway or track.
Description: Festoon cable is a type of specialized cable used in industrial applications.It's designed to provide power and control signals to moving machinery that traverses along a fixed path, such as a crane moving along a runway or track.
Voltage: 600V;
Construction: Copper/PVC/PVC;
Operating Temperature:105°C to -40°C;
Feature: Weather Resistance; High Tensile Strength;
Application: Festoon cables particularly play a crucial role in powering and controlling overhead material handling equipment, in overhead crane systems, hoists,which provide a reliable and flexible solution for industrial applications.
| Gauge | Conductors | Stranding | Insulation Thickness | Outside Diameter Inches | Material Weight (Lbs./M’) |
| 16 | 4 | 26/30 | 0.03 | .1920 X .5580 | 135 |
| 16 | 8 | 65/34 | 0.03 | .2000 X 1.1100 | 194 |
| 16 | 12 | 26/30 | 0.03 | .2000 X 1.6050 | 292 |
| 14 | 4 | 41/30 | 0.03 | .2400 X .6900 | 138 |
| 14 | 8 | 41/30 | 0.03 | .2400 X 1.3340 | 254 |
| 14 | 12 | 41/30 | 0.03 | .2400 X 1.9500 | 380 |
| 12 | 4 | 65/30 | 0.03 | .2300 X .7100 | 180 |
| 12 | 8 | 65/30 | 0.03 | .2300 X 1.3400 | 343 |
| 10 | 4 | 105/30 | 0.03 | .2700 X .8800 | 239 |
| 8 | 4 | 168/30 | 0.03 | .3650 X 1.1900 | 401 |
| 6 | 4 | 259/30 | 0.03 | .4300 X 1.4500 | 635 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
