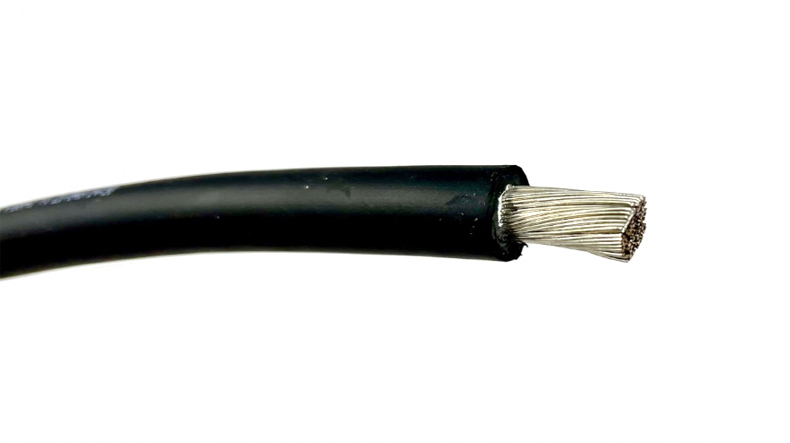

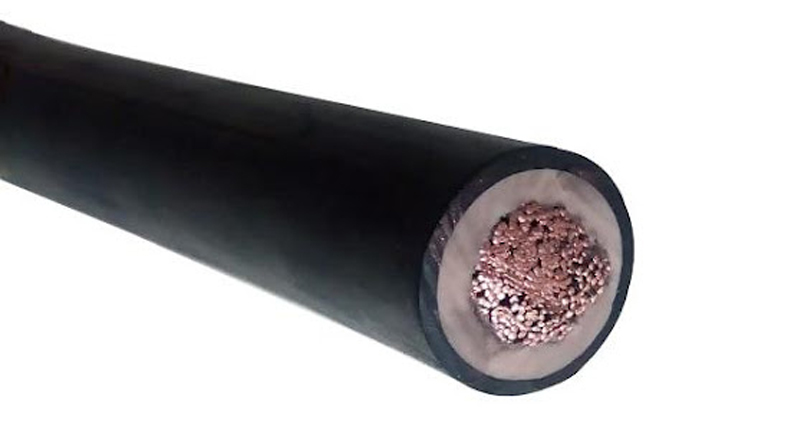

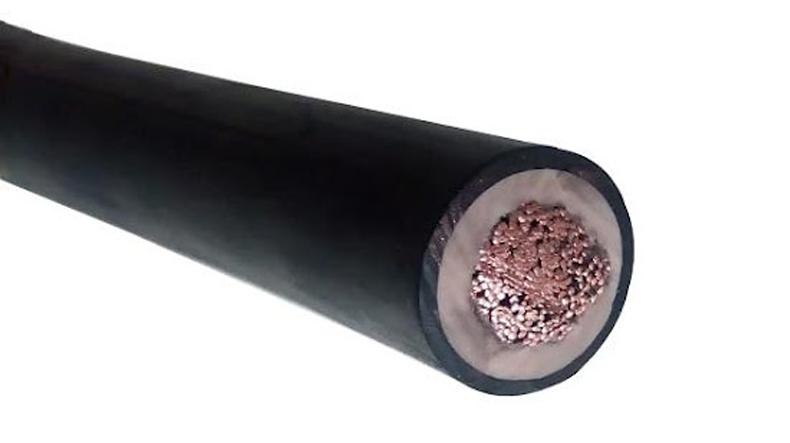

DLO Cable

DLO Diesel locomotive cable is a type of electrical cable specifically designed for use in diesel locomotives and other heavy-duty applications.

Voltage: Up to 600V , 600V-2000V;

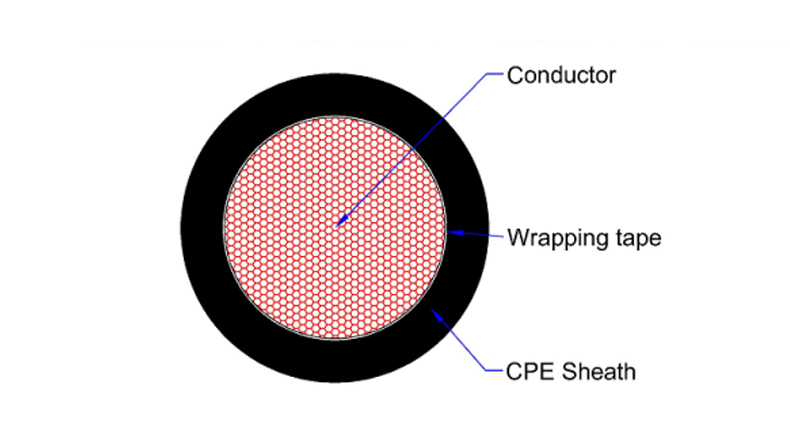

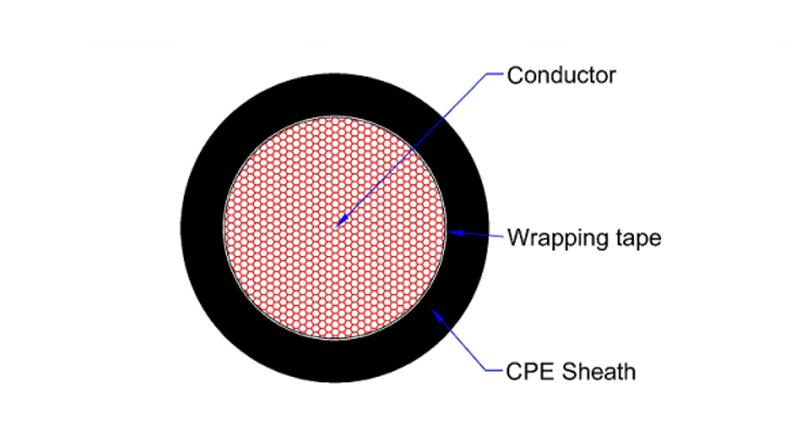

Construction: Annealed flexible copper or tinned copper/Paper or Polyester tape/CPE;
Application: DLO cable is commonly used in diesel locomotives for power distribution and control systems, as well as in heavy machinery, industrial equipment, and marine applications due to its durability and flexibility.

Request a Quote Leave Message

Description Product Parameter Packaging & Delivery FAQ

DLO Cable Introduction

Description: DLO Diesel locomotive cable is a type of electrical cable specifically designed for use in diesel locomotives and other heavy-duty applications.

Reference standards: UL44 , Type RHW-2;

Rated Voltage: Up to 600V , 600V-2000V;

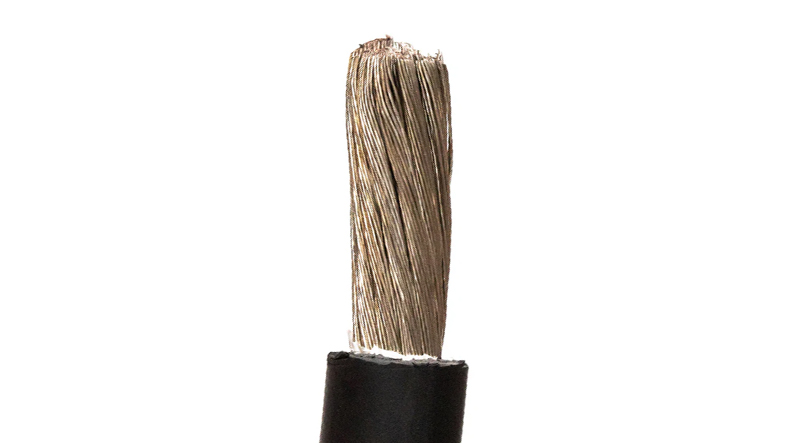

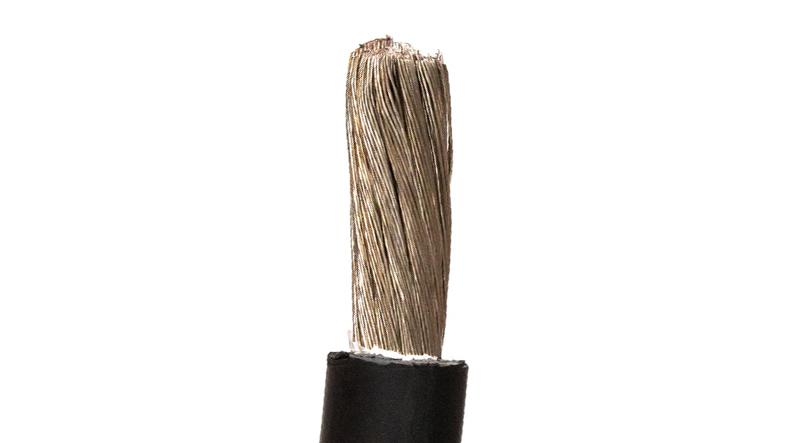

Conductor type: Annealed flexible copper or tinned copper , IEC 60228-2004 Class 5;

Separator: Paper or Polyester tape;

Insulation: CPE;

Application: DLO cable is commonly used in diesel locomotives for power distribution and control systems, as well as in heavy machinery, industrial equipment, and marine applications due to its durability and flexibility.

Size	Max. stranded wire size	Approx. conductor dia.	Nominal insulation thickness		Approx. cable dia.		Approx. Cable weight
			600V	2000V	600V	2000V	600V	2000V
AWG/MCM	mm	mm	mm	mm	mm	mm	kg/km	kg/km
14	0.26	2.02	1.14	2.03	4.30	6.08	41	67
12	0.31	2.55	1.14	2.03	4.83	6.61	56	84
10	0.31	3.22	1.14	2.03	5.50	7.28	78	109
8	0.41	4.04	1.52	2.03	7.08	8.10	125	146
6	0.41	5.15	1.52	2.41	8.19	9.97	182	225
4	0.41	6.51	1.52	2.41	9.55	11.33	268	318
2	0.41	8.19	1.52	2.41	11.23	13.01	398	456
1	0.41	9.15	2.03	2.79	13.21	14.73	518	575
1/0	0.51	10.31	2.03	2.79	14.37	15.89	637	699
2/0	0.51	11.56	2.03	2.79	15.62	17.14	779	846
3/0	0.51	12.97	2.03	2.79	17.03	18.55	959	1031
4/0	0.51	14.56	2.03	2.79	18.62	20.14	1183	1261
250	0.51	15.79	2.41	3.18	20.61	22.15	1412	1500
262.6	0.51	16.16	2.41	3.18	20.98	22.52	1473	1562
300	0.51	17.31	2.41	3.18	22.13	23.67	1668	1762
313.1	0.51	17.70	2.41	3.18	22.52	24.06	1739	1834
350	0.51	18.70	2.41	3.18	23.52	25.06	1923	2022
373.7	0.51	19.33	2.41	3.18	24.15	25.69	2044	2146
400	0.51	19.99	2.41	3.18	24.81	26.35	2175	2280
444.4	0.51	21.04	2.41	3.18	25.86	27.40	2393	2501
500	0.51	22.33	2.41	3.18	27.15	28.69	2671	2785
535.3	0.51	23.09	2.79	3.18	28.67	29.45	2901	2960
550	0.51	23.38	2.79	3.18	28.96	29.74	2969	3029
646.4	0.51	25.37	2.79	3.18	30.95	31.73	3457	3522
750	0.51	8.63	2.79	3.18	14.21	14.99	525	556
777.7	0.51	8.79	2.79	3.18	14.37	15.15	540	571
929.9	0.61	30.41	2.79	3.18	35.99	36.77	4856	4930
1111.0	0.61	33.19	3.18	3.56	39.55	40.16	5810	5841

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
