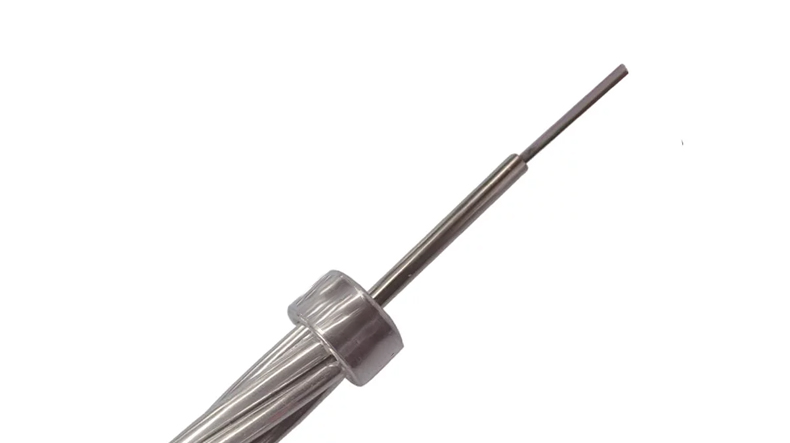

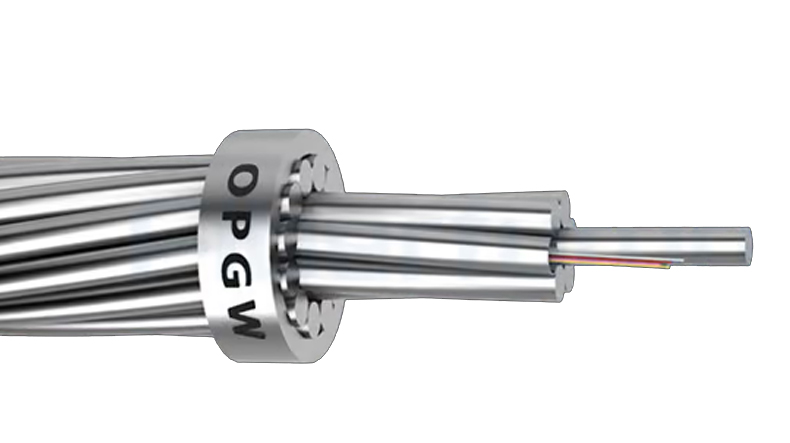

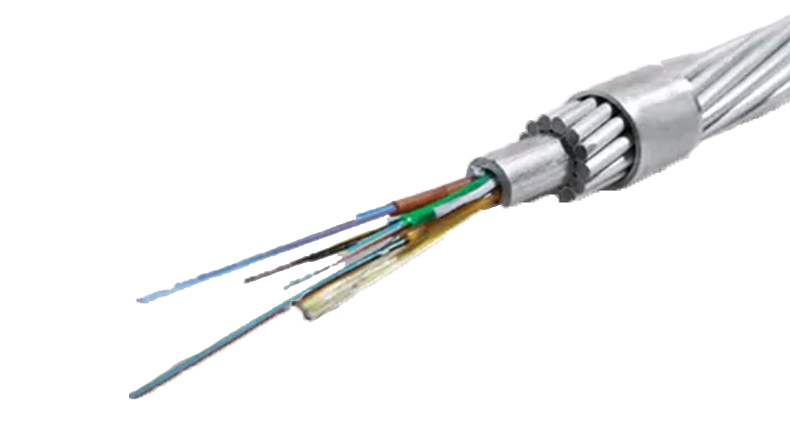

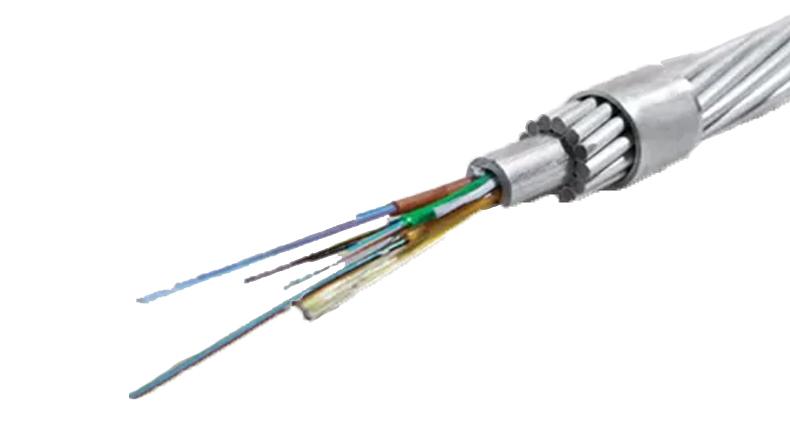

OPGW fiber cable is a specialized type of cable used in overhead power transmission lines. It serves a dual purpose by combining both electrical and optical functions within a single cable structure.
Description: OPGW fiber cable is a specialized type of cable used in overhead power transmission lines. It serves a dual purpose by combining both electrical and optical functions within a single cable structure.
Referance standard: ITU-TG.652,655,EIA/TIA 598B,IEC 60794-4-10,60794-1-2,IEEE 1138,IEC 61232,60104,61089

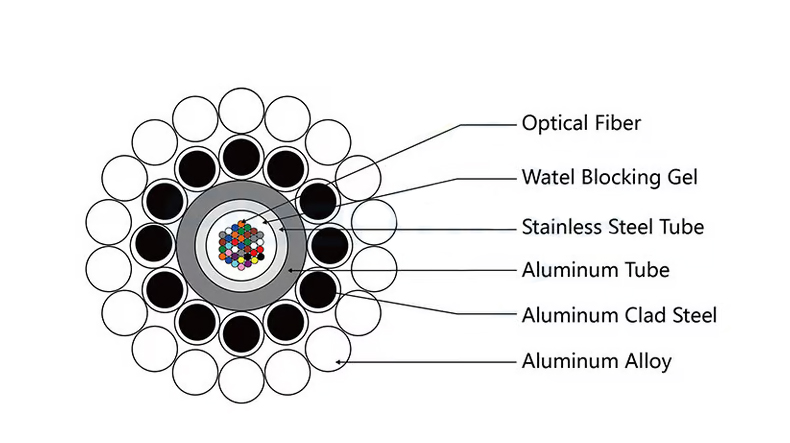

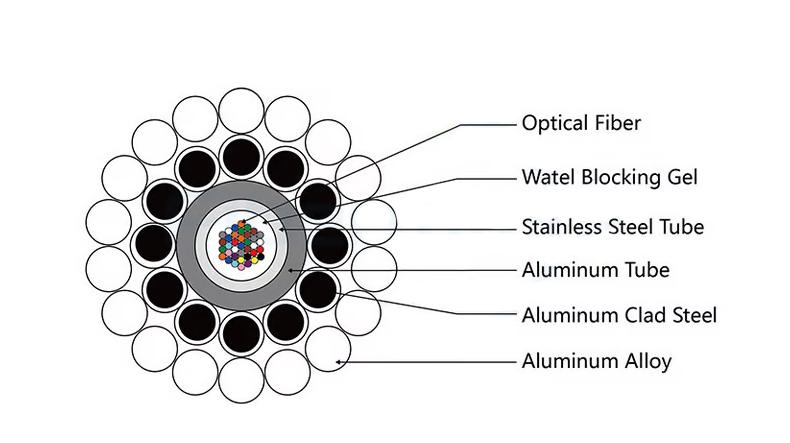

Type: Central Stainless Steel Tube Type；Stranded Stainless Steel Tube Type；
Application: Use in overhead power lines with grounding and communications.
| Model & Size | Construction | Cross section | Diameter | Unit Weight | Rated breaking load |
D.C. Resistance |
Short circuit capacity |
||
| ACS | Total | ||||||||
| Central Fiber | Outer layer | mm2 | mm2 | kg/km | kN | Ω/km | KA2S | ||
| OPGW-24B1-42 | 1×3.0/24B1 | 6×3.0/20AS | 42.41 | 42 | 9 | 309 | 54 | 2.03 | 8.4 |
| 6×3.0/27AS | 42.41 | 42 | 9 | 281 | 43.5 | 1.53 | 10.6 | ||
| 6×3.0/30AS | 42.41 | 42 | 9 | 268 | 35.5 | 1.37 | 11.5 | ||
| OPGW-30B1-48 | 1×3.2/30B1 | 6×3.2/20AS | 48.25 | 48 | 9.6 | 348 | 61.4 | 1.78 | 10.9 |
| 6×3.2/27AS | 48.25 | 48 | 9.6 | 315 | 49.5 | 1.34 | 13.7 | ||
| 6×3.2/30AS | 48.25 | 48 | 9.6 | 301 | 40.3 | 1.21 | 14.9 | ||
| OPGW-30B1-51 | 1 x3.3/30B1 | 6×3,3/20AS | 51.32 | 51 | 9.9 | 368 | 63.9 | 1.68 | 12.3 |
| 6×3,3/27AS | 51.32 | 51 | 9.9 | 333 | 52.7 | 1.26 | 15.5 | ||
| 6×3,3/30AS | 51.32 | 51 | 9.9 | 318 | 42.9 | 1.14 | 16.8 | ||
| 6×3,3/40AS | 51.32 | 51 | 9.9 | 268 | 33.2 | 0.85 | 20.8 | ||
| OPGW-36B1-54 | 1×3.5/40B1 | 6×3.4/20AS | 54.48 | 54 | 10.2 | 389 | 67.8 | 1.58 | 13.9 |
| 6×3.4/27AS | 54.48 | 54 | 10.2 | 389 | 55.9 | 1.19 | 17.5 | ||
| 6×3.4/30AS | 54.48 | 54 | 10.2 | 389 | 45.5 | 1.07 | 19 | ||
| 6×3.4/40AS | 54.48 | 54 | 10.2 | 389 | 35.2 | 0.8 | 23.4 | ||
| OPGW-40B1-58 | 1×3.5/40B1 | 6×3.5/20AS | 57.73 | 58 | 10.5 | 410 | 69.6 | 1.49 | 15.6 |
| 6×3.5/27AS | 57.73 | 58 | 10.5 | 371 | 59.2 | 1.12 | 19.6 | ||
| 6×3.5/30AS | 57.73 | 58 | 10.5 | 354 | 48.3 | 1.01 | 21.3 | ||
| 6×3.5/40AS | 57.73 | 58 | 10.5 | 298 | 37.3 | 0.76 | 26.3 | ||
| OPGW-48B1-61 | 1×3.6/48B1 | 6×3.6/20AS | 61.07 | 61 | 10.8 | 432 | 73.7 | 1.41 | 17.5 |
| 6×3.6/27AS | 61.07 | 61 | 10.8 | 391 | 62.7 | 1.06 | 22 | ||
| 6×3.6/30AS | 61.07 | 61 | 10.8 | 373 | 51.1 | 0.95 | 23.8 | ||
| 6×3.6/40AS | 61.07 | 61 | 10.8 | 313 | 39.5 | 0.72 | 29.5 | ||
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
