N2XSY cables are designed for use in medium voltage power distribution networks, both underground (direct burial) and in cable ducts. They are suitable for various applications including industrial plants, infrastructure projects, and utility networks.
Description: The N2XSY cable is a type of power cable commonly used in European markets, particularly in medium voltage applications.
Voltage: 6/10kV; 12/20kV; 18/30kV;

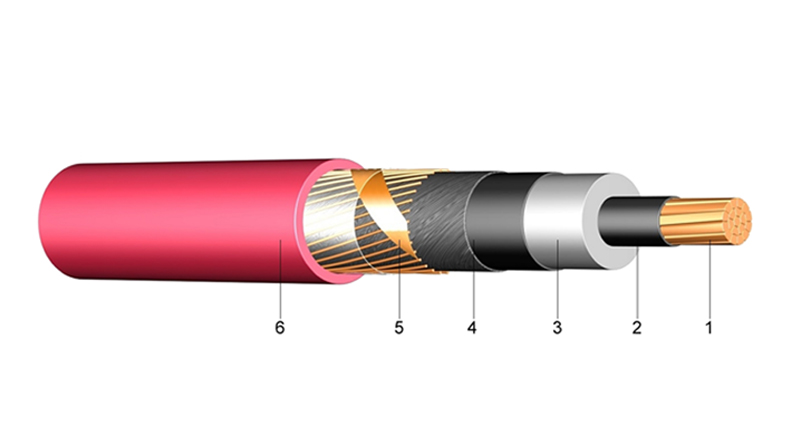

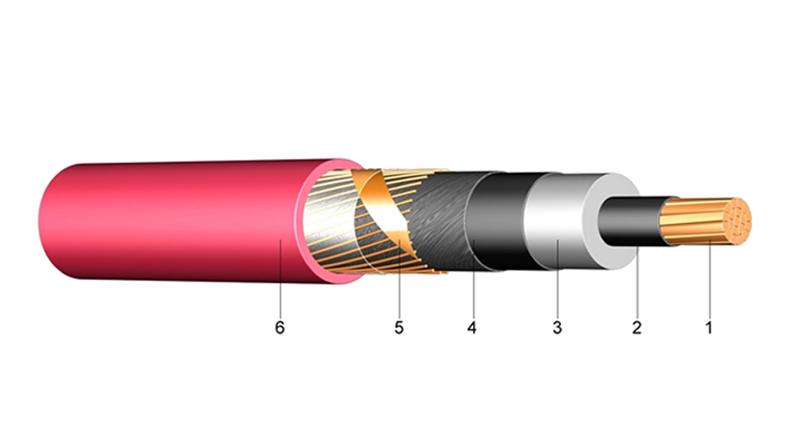

Construction: Copper/XLPE/PVC;
Application: N2XSY cables are designed for use in medium voltage power distribution networks, both underground (direct burial) and in cable ducts. They are suitable for various applications including industrial plants, infrastructure projects, and utility networks.
| Number of cores and nominal cross section mm² | Copper figure kg/km | Overall diameter appr. mm | Overall diameter max. value appr. mm | Weight appr.kg / km | Current carrying capacity ground A* | Current carrying capacity air A* |
| 1 x 35 RM/16 | 540 | 23 | 28 | 900 | 187 | 197 |
| 1 x 50 RM/16 | 690 | 24 | 29 | 1.05 | 220 | 236 |
| 1 x 70 RM/16 | 890 | 26 | 31 | 1.3 | 268 | 294 |
| 1 x 95 RM/16 | 1.14 | 27 | 32 | 1.6 | 320 | 358 |
| 1 x 120 RM/16 | 1.39 | 29 | 34 | 1.85 | 363 | 413 |
| 1 x 150 RM/25 | 1.795 | 30 | 35 | 2.2 | 405 | 468 |
| 1 x 185 RM/25 | 2.145 | 32 | 37 | 2.6 | 456 | 535 |
| 1 x 240 RM/25 | 2.695 | 34 | 39 | 3.15 | 526 | 631 |
| 1 x 300 RM/25 | 3.295 | 36 | 40 | 3.75 | 591 | 722 |
| 1 x 400 RM/35 | 4.41 | 40 | 45 | 4.65 | 662 | 827 |
| 1 x 500 RM/35 | 5.41 | 43 | 47 | 5.75 | 739 | 921 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
