The product is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
Application: MV copper wire shielded power cable is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.
Standard: IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C 68.3, ICEA S 93-639 , ICEA S 94-649

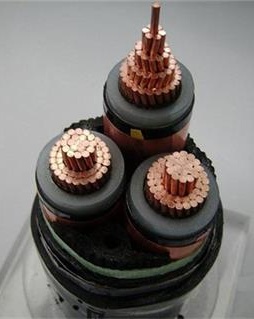

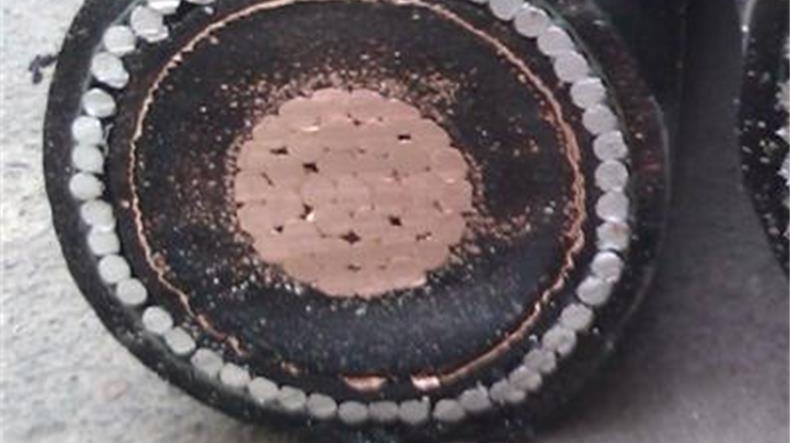

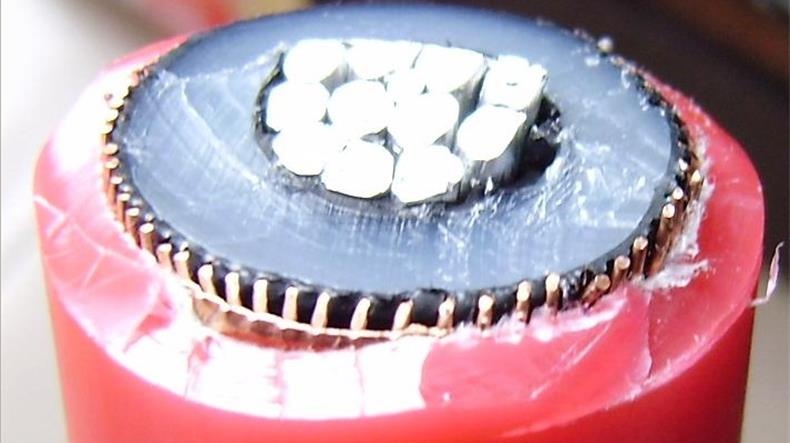

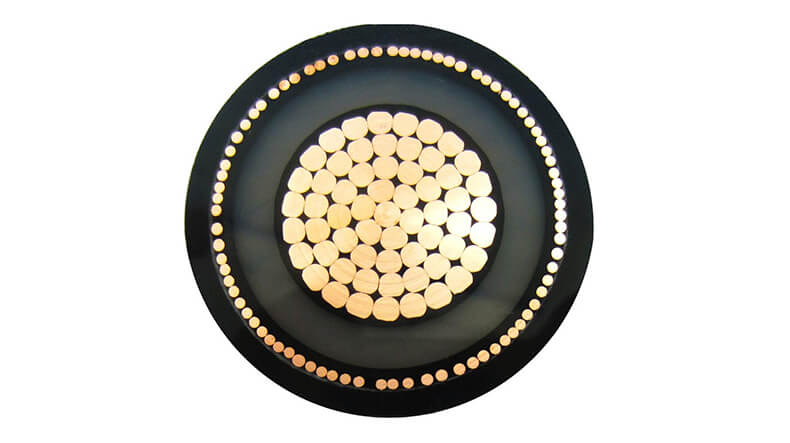

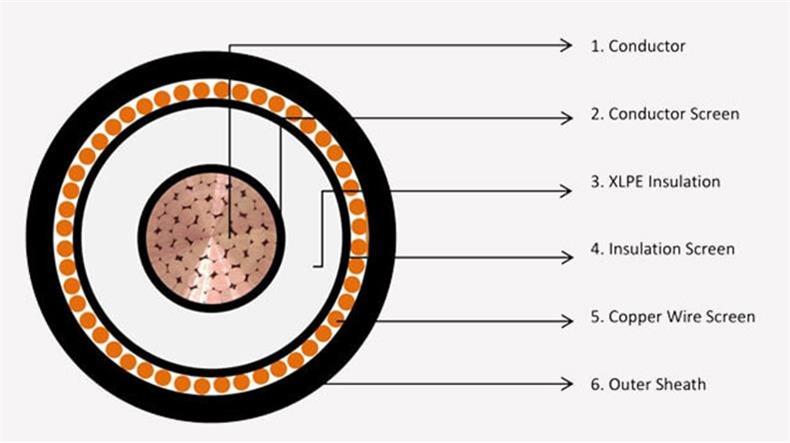

Construction: Al/Cu Conductor, XLPE Insulation, Cu Tape/Copper Wire Metallic Screen , Tape/ Wire Armor(Optional), PVC /PE Outer Jacket
Advantage: Durability: Copper’s high conductivity ensures minimal energy loss and long-lasting performance.
Safety: The shielding protects both the cable and surrounding systems from electrical faults, making the cable safer to use in power systems.
Reduced Interference: The shielding prevents electromagnetic interference, maintaining the integrity of power delivery and preventing disruption to sensitive equipment.
| Conductor Size | Min Stranding No. | Nominal Diameter | Max. D.C. Resistance at 20℃ | |
| AWG/ kcmil | mm2 | mm | mm | Ω/KM |
| 3 | 26.7 | 6 | 6.05 | 0.68509 |
| 2 | 33.6 | 6 | 6.81 | 0.54357 |
| 1 | 42.4 | 7 | 7.59 | 0.43099 |
| 1/0 | 53.5 | 7 | 8.53 | 0.34094 |
| 2/0 | 67.4 | 12 | 9.55 | 0.27082 |
| 3/0 | 85 | 15 | 10.7 | 0.21453 |
| 4/0 | 107 | 17 | 12.1 | 0.16854 |
| 250 | 127 | 18 | 13.2 | 0.14409 |
| 300 | 152 | 18 | 14.5 | 0.12029 |
| 350 | 177 | 24 | 15.6 | 0.10292 |
| 400 | 203 | 24 | 16.7 | 0.08909 |
| 500 | 253 | 30 | 18.7 | 0.07140 |
| 550 | 279 | 34 | 19.7 | 0.06561 |
| 600 | 304 | 34 | 20.7 | 0.06015 |
| 700 | 355 | 34 | 22.3 | 0.05114 |
| 750 | 380 | 53 | 23.1 | 0.04760 |
| 800 | 405 | 53 | 23.8 | 0.04471 |
| 1000 | 507 | 53 | 26.9 | 0.03570 |
| Rated Circuit Voltage, Phase-to-Phase | Conductor Size | XLPE/TRXLPE Insulation Nominal Thickness | Metal Screen | ||
| 100 Percent Level | 133 Percent Level | 173 Percent Level | Copper Tape | ||
| V | AWG/kcmil | mm | mm | mm | mm |
| 2001-5000 | 8-1000 | 2.3 | 2.3 | 3.6 | 0.06 |
| 1001-3000 | 3.6 | 3.6 | 3.6 | 0.06 | |
| 5001-8000 | 6-1000 | 2.9 | 3.6 | 4.4 | 0.06 |
| 1001-3000 | 4.4 | 4.4 | 5.6 | 0.06 | |
| 8001-15000 | 2-1000 | 4.4 | 5.6 | 6.6 | 0.06 |
| 1001-3000 | 5.6 | 5.6 | 6.6 | 0.06 | |
| 15001-25000 | 1-3000 | 6.6 | 8.1 | 10.7 | 0.06 |
| 25001-28000 | 1-3000 | 7.1 | 8.8 | 11.3 | 0.06 |
| 28001-35000 | 1/0-3000 | 8.8 | 10.7 | 14.7 | 0.06 |
| 35001-46000 | 4/0-3000 | 11.3 | 14.7 | 19.1 | 0.06 |
