2XS(FL)2Y、A2XS(FL)2Y 110kV power cable is a high-voltage electrical cable used primarily for the transmission of electrical power at high voltages, typically in the range of 110 kV.
Description: 2XS(FL)2Y、A2XS(FL)2Y 110kV power cable is a high-voltage electrical cable used primarily for the transmission of electrical power at high voltages, typically in the range of 110 kV.
Voltage Rating: 64/110kV;
Operating Temperature: -30°C to 90°C;

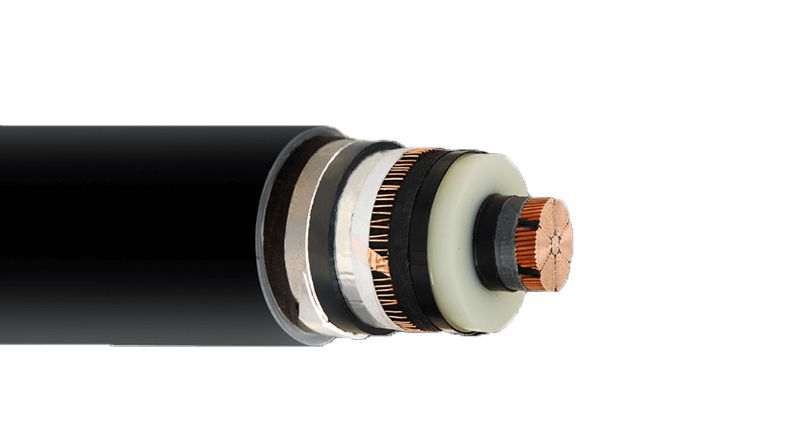

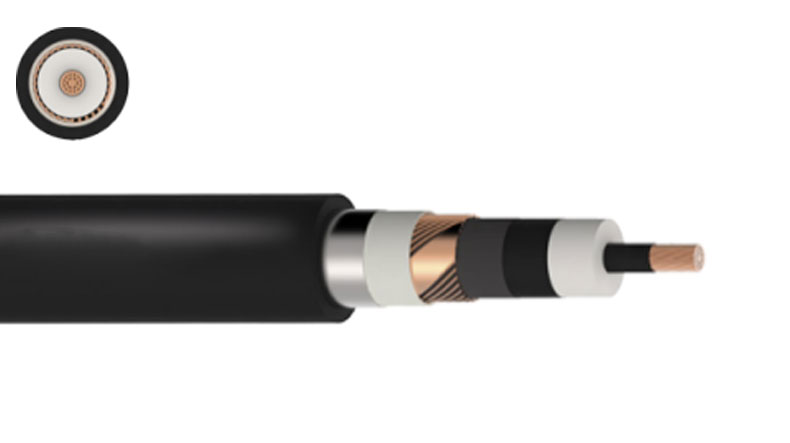

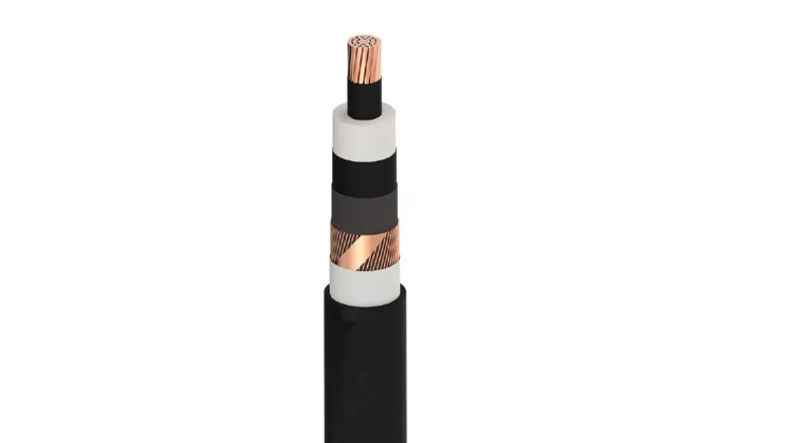

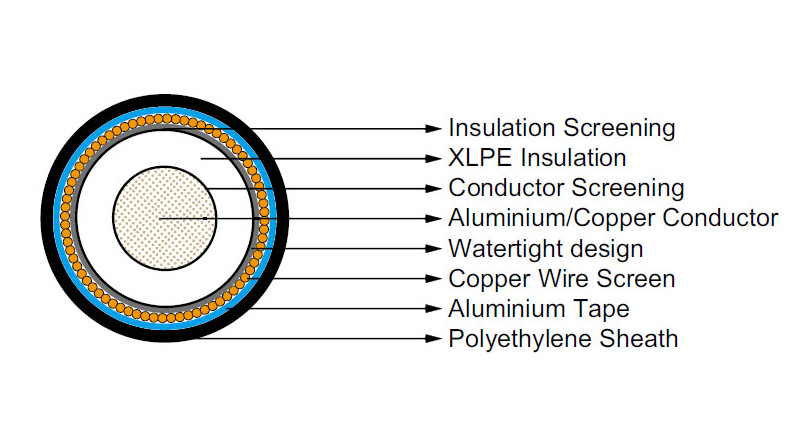

Construction:
Conductor: Class 2 copper or aluminium, compacted or segment
Conductor Screen: Extruded semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation: XLPE (Cross-Linked Polyethylene)
Insulation Screen: Extruded semi-conductive XLPE (Cross-Linked Polyethylene)
Screen: Copper wire screen, with a counter helix of copper tape
Sheath: HDPE (High Density Polyethylene)
Application:
· High-Voltage Power Transmission: It is used to transmit electricity over long distances, especially in power grids, substations, and transmission lines, where high voltage is necessary to reduce energy loss during transmission.
· Substation Connections: Connecting transformers, circuit breakers, and other equipment in substations.
· Industrial Power Supply: In large industrial plants, where high-voltage power is needed to run heavy machinery and equipment.
· Underground or Tunnel Installations: Because of the flame-retardant properties and robust construction, these cables are often used in underground systems, such as in tunnels or urban infrastructure.
· Renewable Energy: Power transmission from renewable energy sources (e.g., wind farms or solar farms) to the grid, especially when located at a distance from populated areas.
| 2XS(FL)2Y Copper Conductor | |||||||||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | ELECTRICAL PROTECTION mm2 | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF NSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MINIMUM BENDING RADIUS (FIXED) mm | MAXIMAL FORCE OF DRAGGING (CONDUCTOR PULLING)kN |
| 1 | 150 | 95 | 14.1 | 18 | 54.9 | 64.9 | 5035 | 970 | 7.5 |
| 1 | 185 | 95 | 15.7 | 17 | 54.5 | 64.5 | 5272 | 960 | 9.2 |
| 1 | 240 | 95 | 18 | 16 | 54.8 | 64.8 | 5742 | 970 | 12 |
| 1 | 300 | 95 | 20.3 | 15 | 55.1 | 65.1 | 6210 | 980 | 15 |
| 1 | 400 | 95 | 23 | 15 | 57.6 | 67.4 | 7208 | 1010 | 20 |
| 1 | 500 | 95 | 26.5 | 15 | 61.3 | 71.7 | 8322 | 1070 | 25 |
| 1 | 630 | 95 | 30.3 | 15 | 64.5 | 75.2 | 9886 | 1200 | 31.5 |
| 1 | 800 | 95 | 36.9 | 15 | 71.8 | 82.6 | 12042 | 1240 | 40 |
| A2XS(FL)2Y Aluminium Conductor | |||||||||
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | ELECTRICAL PROTECTION mm2 | NOMINAL DIAMETER OF CONDUCTOR mm | NOMINAL THICKNESS OF NSULATION mm | NOMINAL DIAMETER OVER INSULATION mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | MINIMUM BENDING RADIUS (FIXED) mm | MAXIMUM PULLING FORCE kN |
| 1 | 150 | 95 | 14.1 | 18 | 54.9 | 64.9 | 4128 | 970 | 4.5 |
| 1 | 185 | 95 | 15.7 | 17 | 54.5 | 64.5 | 4153 | 960 | 5.5 |
| 1 | 240 | 95 | 18 | 16 | 54.8 | 64.8 | 4283 | 970 | 7.2 |
| 1 | 300 | 95 | 20.3 | 15 | 55.1 | 65.1 | 4397 | 980 | 9 |
| 1 | 400 | 95 | 23 | 15 | 57.6 | 67.4 | 4880 | 1010 | 12 |
| 1 | 500 | 95 | 26.5 | 15 | 61.3 | 71.7 | 5433 | 1070 | 15 |
| 1 | 630 | 95 | 30.3 | 15 | 64.5 | 75.2 | 6064 | 1200 | 18.9 |
| 1 | 800 | 95 | 36.9 | 15 | 71.8 | 82.6 | 7100 | 1240 | 24 |
| 1 | 1000 | 95 | 37.9 | 15 | 72.8 | 84.7 | 7795 | 1270 | 30 |
| 1 | 1200* | 95 | 44 | 15 | 78 | 95.7 | 8350 | 1400 | 36 |

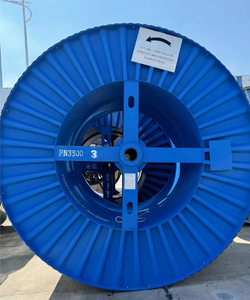

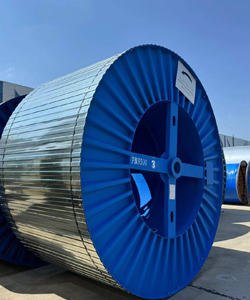

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
