15kV Type MV-105 Power Cable

MV-105 cables meet or exceed recognized industry standards (UL,AEIC,NEMA/ICEA,IEEE).Continuous sheath provides grounding safety.

Voltage Rating: 15kV;
Standards&References:ICEAS-93-639/NEMA WC74,ASTM B836 UL1072,IEEE1580,IEC60228,IEC60502;
Application:MV-105 power cables are recommended as an economical alternate to a wire in conduit system.They are designed specifically for use as feeders or branch circuits in industrial and utility power distribution systems.

Request a Quote Leave Message

Description Product Parameter Packaging & Delivery FAQ

Aluminum Sheath Shielded Power Cable

Product Introduction

Voltage Rating: 15kV;

Standards&References:ICEAS-93-639/NEMA WC74,ASTM B836 UL1072,IEEE1580,IEC60228,IEC60502;

Feature: MV-105 cables meet or exceed recognized industry standards (UL,AEIC,NEMA/ICEA,IEEE).Continuous sheath provides grounding safety.

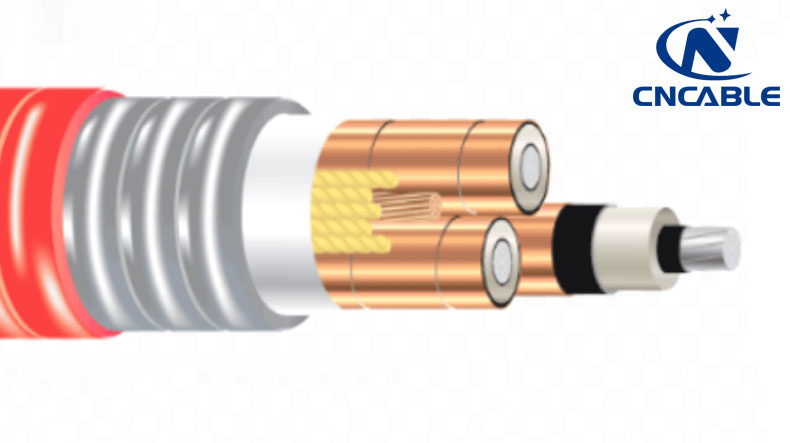

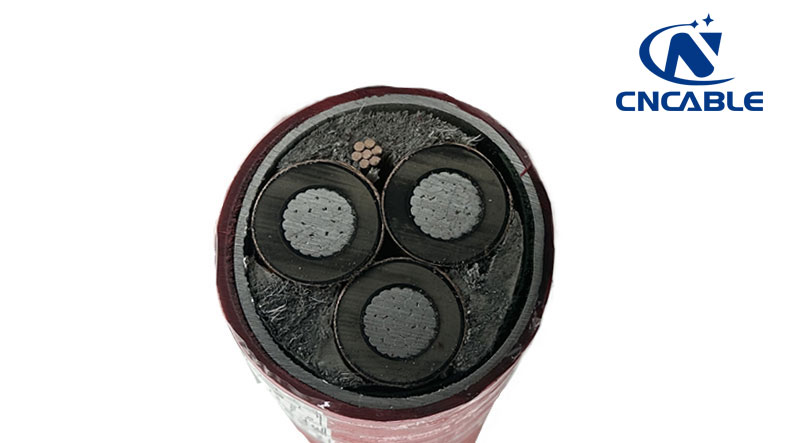

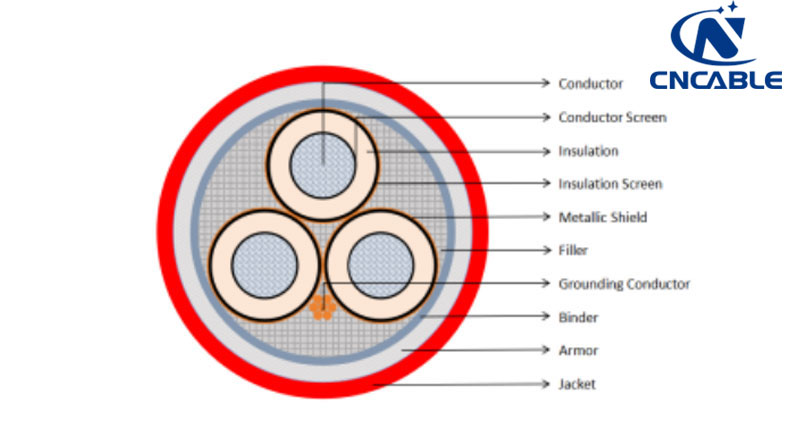

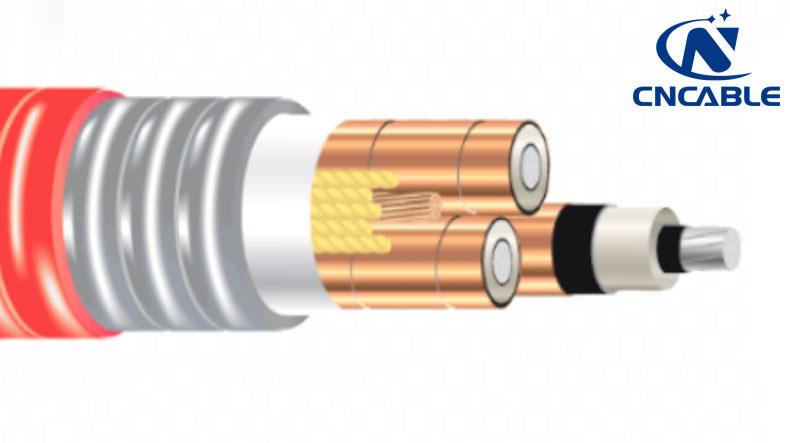

Construction:

1.Conductor: ALUMINUM(1350 Aluminum,compacted,class B)

2.Conductor Shield:Extruded semi-conducting layer over conductor

3. Insulation:Ethylene Propylene Rubber(EPR)133%Insulation Level

4.Insulation Shield: Extruded semi-conducting layer over insulation

5.Metallic Shield:Uncoated Copper Tape,Helically Applied

6. Filler:Flame retardant PPRope

7.GroundConductors:One uninsulated,Bare copper wire per ASTM B3,B8

8. Binder:Cable tape

9. Armor:Continuously corrugated welded aluminum sheath

10.Outer Jacket:Low temperature,flame retardant,PVC

Power Conductors					Ground Conductor			Metal Shield	Armor	Jacket thickness	Approx. OD.	Approx. Weight
Size		Wires	Cond Dia.	Insulation thickness	Size	Wires	Cond. Dia.	Min. thickness	Min. thickness
AWG/kcmil	mm²	No.	mm	mm	AWG	No.	mm	mm	mm	mm	mm	kg/m
1/0	53.5	19	8.53	5.59	8	7	3.71	0.0635	0.56	1.27	64.1	3.6
2/0	67.4	19	9.55	5.59	7	7	4.17	0.0635	0.56	1.27	67.3	4.0
3/0	85.0	19	10.7	5.59	6	7	4.67	0.0635	0.56	1.27	70.7	4.5
4/0	107	19	12.1	5.59	5	7	5.23	0.0635	0.74	1.52	72.5	4.9
250	127	37	13.2	5.59	4	7	5.89	0.0635	0.74	1.52	75.8	6.0
300	152	37	14.5	5.59	3	7	6.60	0.0635	0.86	1.78	83.9	6.8
350	177	37	15.6	5.59	2	7	7.42	0.0635	0.86	1.78	87.1	7.7
500	253	37	18.7	5.59	1	7	8.46	0.0635	0.86	1.78	93	8.9

Packaging & Delivery

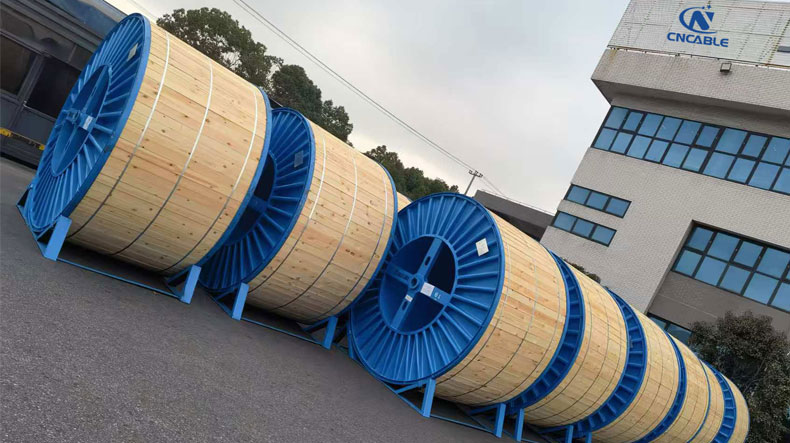

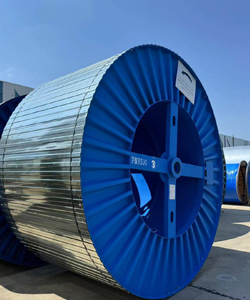

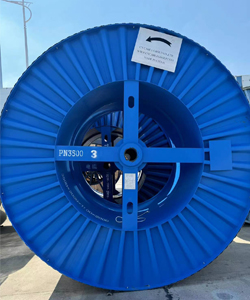

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
