110KV Power Cable

500KV and Below XLPE Insulated Power Cable

Application Extra-high-tension cable is a kind of power cable with the continuous development of cable technology. The cable is generally used as a central link in the large transmission system. It belongs to a high voltage cable with high technical content, which is mainly used for long distance power transmission.
Standard GB 11017， IEC60840

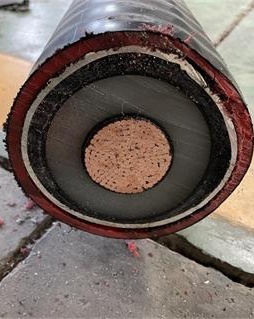

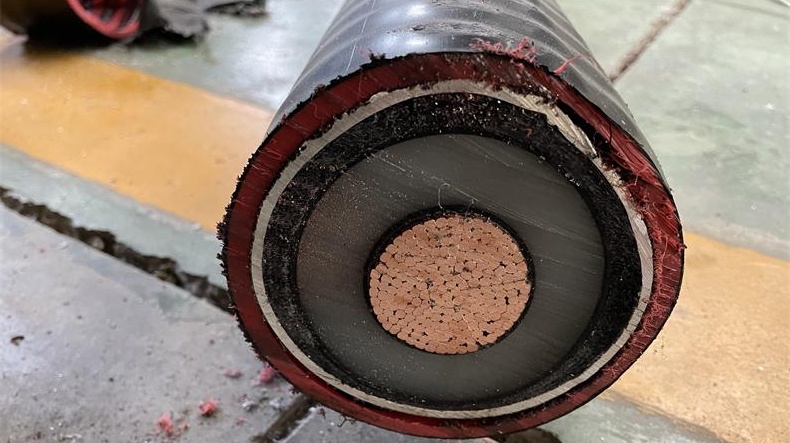

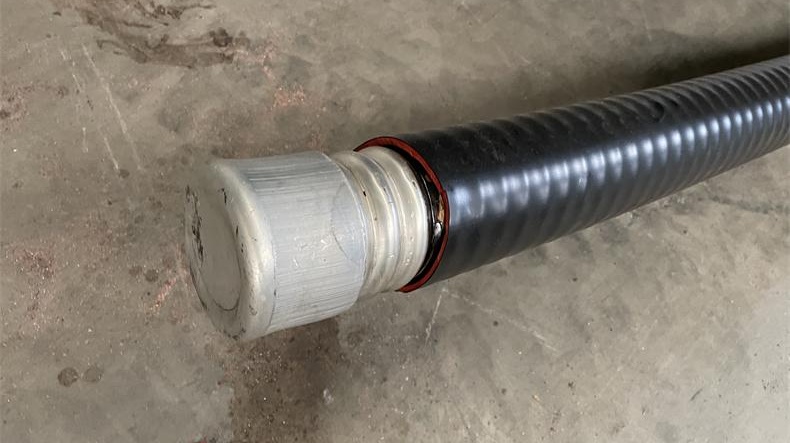

Construction Al/Cu Conductor, XLPE Insulation, Metal shield layer, Water-blocking layer, Metal sheath, Outer Sheath, Conductive layer

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

Extra-high-tension cable is a kind of power cable with the continuous development of cable technology. The cable is generally used as a central link in the large transmission system. It belongs to a high voltage cable with high technical content, which is mainly used for long distance power transmission.

Standard GB 11017， IEC60840

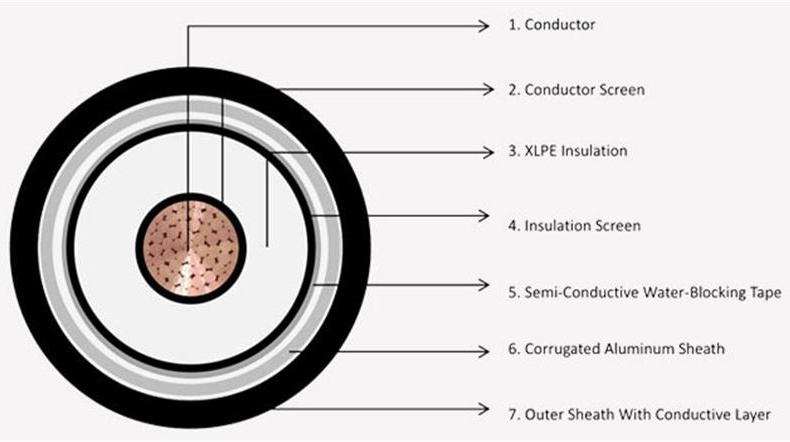

Construction Al/Cu Conductor, XLPE Insulation, Metal shield layer, Water-blocking layer, Metal sheath, Outer Sheath, Conductive layer

Description 500KV and Below XLPE Insulated Power Cable

Product Data Sheet

Cable type and Size Range

Type		Description	Rated Voltage KV	Nominal Cross-section mm2
Cu core	Al core
YJLW02 YJLW03	YJLLW02 YJLLW03	XLPE Insulated Corrugated Aluminum sheathed PVC outer sheath power cable XLPE Insulated Corrugated Aluminum sheathed PE outer sheath power cable	64/110(126)	240 300 400 500 630 800 1000 1200
			127/220(252)	400 500 630 800 1000 1200 1600 2000 2500
Note: The conductor shall be compact circular stranded type if size is smaller than 800mm2. If conductor size is 1000mm2 and above, the structure should be compact segmental conductor.

Product data sheet-110KV & 220KV Power Cables

YJLW02 YJLLW02
Rated voltage	Conductor size	Approx. Conductor dia.	Conductor screen thickness	XLPE Insulation thickness	Insulation Screen thickness	Corrugated Al sheath thickness	Outer sheath thickness	Approx. Cable dia.	Approx. Cable weight		Electric Capacity	Inductance		Loss of insulation	Max. D.C. Resistance
Rated voltage	Conductor size	Approx. Conductor dia.	Conductor screen thickness	XLPE Insulation thickness	Insulation Screen thickness	Corrugated Al sheath thickness	Outer sheath thickness	Approx. Cable dia.	Cu	Al	Electric Capacity	Parallel laying	Trefoil laying	Loss of insulation	Cu	Al
KV	mm2	mm	mm	mm	mm	mm	mm	mm	Kg/km		Pf/m	mH/km	mH/km	w/M	Ω/km
110	240	18.40	1.5	19.0	1.0	2.0	2.9	90.6	7905	6383	136	0.757	0.508	0.175	0.0754	0.1250
	300	20.60	1.5	18.5	1.0	2.0	3.0	91.8	8617	6692	147	0.734	0.489	0.190	0.0601	0.1000
	400	23.50	1.5	17.5	1.0	2.0	3.0	92.9	9415	6954	165	0.708	0.465	0.212	0.0470	0.0778
	500	26.60	1.5	17.0	1.0	2.0	3.1	95.4	10655	7495	182	0.683	0.445	0.234	0.0336	0.0605
	630	30.25	1.5	16.5	1.0	2.0	3.1	98.3	12182	8095	201	0.657	0.424	0.259	0.0283	0.0469
	800	34.23	1.5	16.0	1.0	2.0	3.2	101.2	14053	8861	224	0.633	0.406	0.288	0.0221	0.0367
	1000	41.40	2.0	16.0	1.0	2.0	3.4	110.5	17510	10878	265	0.594	0.386	0.341	0.0176	0.0291
	1200	45.28	2.0	16.0	1.0	2.0	3.4	114.6	19470	11756	282	0.577	0.375	0.363	0.0151	0.0247
220	240	18.40	1.5	27.0	1.0	2.0	3.4	107.4	10609	9087	110	0.895	0.543	0.559	0.0754	0.1250
	300	20.60	1.5	27.0	1.0	2.0	3.4	109.8	11477	9553	117	0.873	0.524	0.591	0.0601	0.1000
	400	23.50	1.5	27.0	1.0	2.0	3.4	113.1	12630	10169	125	0.846	0.503	0.633	0.0470	0.0778
	500	26.60	1.5	27.0	1.0	2.0	3.4	116.4	14042	10882	134	0.822	0.484	0.678	0.0336	0.0605
	630	30.25	1.5	27.0	1.0	2.0	3.4	120.2	15867	11780	144	0.796	0.464	0.729	0.0283	0.0469
	800	34.23	1.5	27.0	1.0	2.0	3.4	124.6	17964	12775	155	0.771	0.446	0.785	0.0221	0.0367
	1000	41.40	2.0	27.0	1.0	2.3	3.4	133.7	22025	15394	180	0.733	0.423	0.912	0.0176	0.0291
	1200	45.28	2.0	27.0	1.0	2.4	3.4	137.8	24243	16529	190	0.715	0.411	0.965	0.0151	0.0247
	1400	48.2	2.0	27.0	1.0	2.4	3.4	140.9	26600	17535	198	0.703	0.403	1.004	0.0123	0.0202
	1600	50.41	2.0	27.0	1.0	2.5	3.4	143.3	28183	18319	204	0.694	0.397	1.034	0.0108	0.0177
	1800	53.35	2.0	27.0	1.0	2.5	3.4	146.4	30478	19310	212	0.682	0.390	1.074	0.0096	0.0157
	2000	57.00	2.0	27.0	1.0	2.6	3.4	150.3	33280	20613	222	0.669	0.382	1.123	0.0086	0.0141

Packaging & Delivery

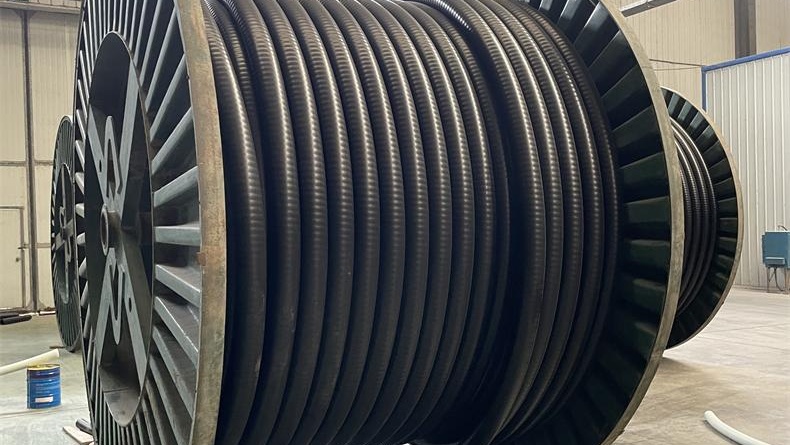

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
