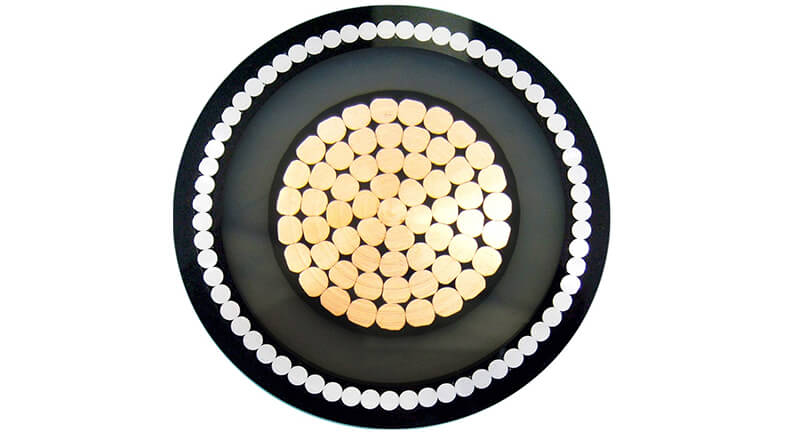

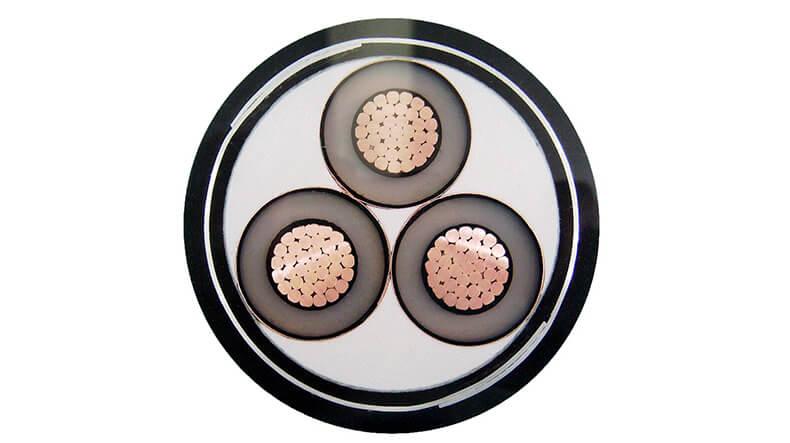

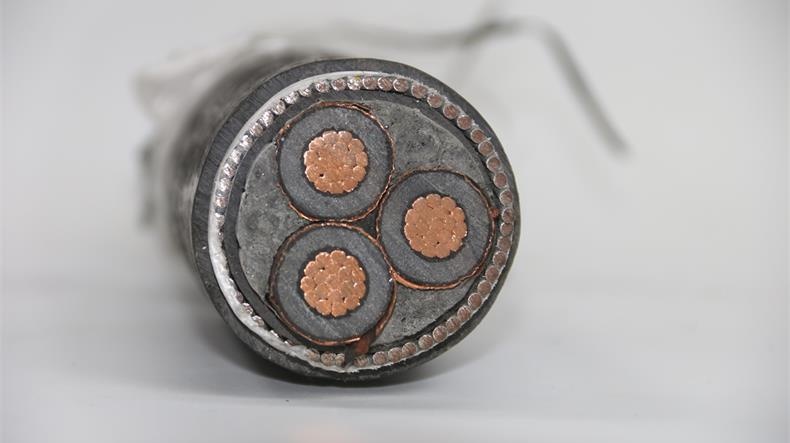

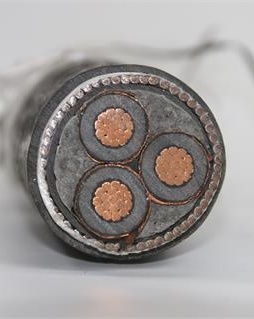

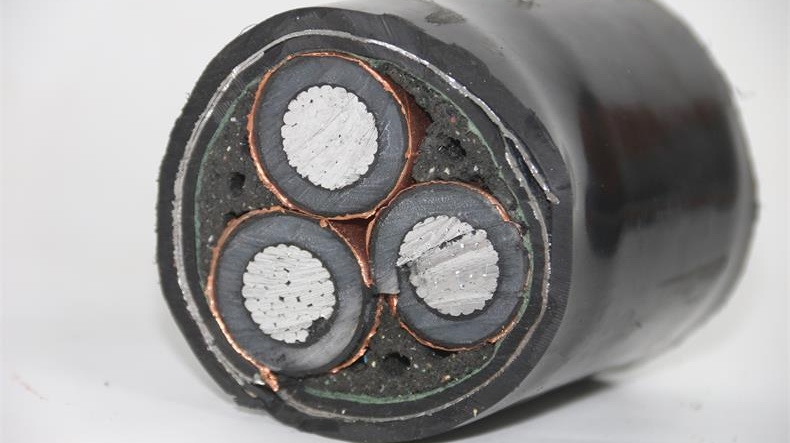

1-35KV Armoured Power Cable

Used in power transmission and distribution line at Voltage up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.

  • Application Used in power transmission and distribution line at Voltage up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.

  • Standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226,   CSA C 68.3, ICEA S 93-639 ,  ICEA S 94-649

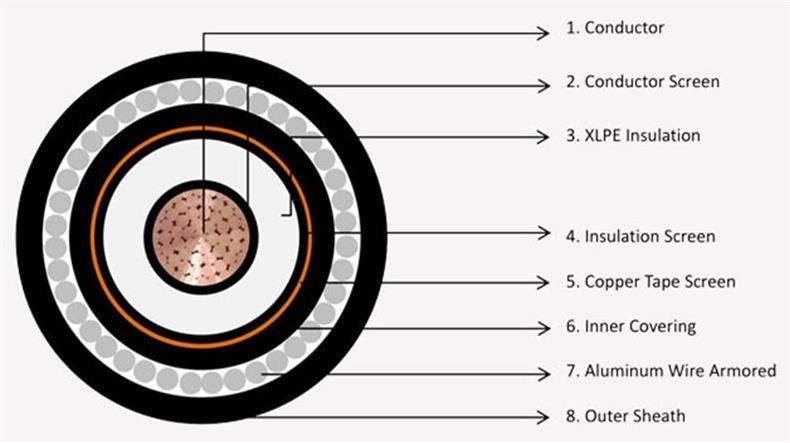

  • Construction Al/Cu Conductor, XLPE Insulation, Cu Tape/Copper Wire Metallic Screen ,  Tape/ Wire Armor(Optional), PVC /PE Outer Jacket.

Application

Used in power transmission and distribution line at Voltage up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.

Standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226,   CSA C 68.3, ICEA S 93-639 ,  ICEA S 94-649

Construction Al/Cu Conductor, XLPE Insulation, Cu Tape/Copper Wire Metallic Screen ,  Tape/ Wire Armor(Optional), PVC /PE Outer Jacket

Product Data Sheet

Description of cable conductor

Conductor Size Stranding No. Max. Conductor Resistance 20℃ Conductor Dia. Conductor Size Stranding No. Max. Conductor Resistance 20℃ Conductor Dia.
mm2 Ω/km mm mm2 Ω/km mm
16 7 1.91 4.6~5.2 150 ≥15 0.206 13.7~15.0
25 7 1.2 5.6~6.5 185 ≥30 0.164 15.3~16.8
35 ≥6 0.868 6.6~7.5 240 ≥30 0.125 17.6~19.2
50 ≥6 0.641 7.7~8.6 300 ≥30 0.1 19.7~21.6
70 ≥12 0.443 9.3~10.2 400 ≥53 0.0778 22.3~24.6
95 ≥15 0.32 11.0~12.0 500 ≥53 0.0605 25.3~27.6
120 ≥15 0.253 12.3~13.5 630 ≥53 0.0286 28.7~32.5



1-30KV XLPE Insulated Power Cable
Conductor Size Stranding No.

(Compacted Round)

Conductor Dia. Max. D.C. resistance at 20℃
Cu  Al Cu Al
mm2 No.s No.s mm Ω/KM Ω/KM
25 ≥6 ≥6 5.6-6.5 0.727 1.2
35 ≥6 ≥6 6.6-7.5 0.524 0.868
50 ≥6 ≥6 7.7-8.6 0.387 0.641
70 ≥12 ≥12 9.3-10.2 0.268 0.443
95 ≥15 ≥15 11.0-12.0 0.193 0.32
120 ≥18 ≥15 12.3-13.5 0.153 0.253
150 ≥18 ≥15 13.7-15.0 0.124 0.206
185 ≥30 ≥30 15.3-16.8 0.0991 0.164
240 ≥34 ≥30 17.6-19.2 0.0754 0.125
300 ≥34 ≥30 19.7-21.6 0.0601 0.1
400 ≥53 ≥53 22.3-24.6 0.047 0.0778
500 ≥53 ≥53 25.3-27.6 0.0368 0.0605
630 ≥53 ≥53 28.7-32.5 0.0283 0.0469
800 ≥53 ≥53 0.0221 0.0367
1000 ≥53 ≥53 0.0176 0.0291

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum.  Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs.  You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different.  Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
