VCT-G Cable 450/750V

For mobile-electrical equipment used in factories, farm or household appliances or direct burial in ground.

Application For mobile-electrical equipment used in factories, farm or household appliances or direct burial in ground.
Standard TIS 11 2553 , IEC 60502-1 ，IEC 60228
Construction Insulation: PVC. Black with white number identification or color code .
2core: Light blue, Brown
3core: Brown, Black, Grey
4core: Light blue, Brown, Black, Grey
2+1core: Light blue, Brown, Green/Yellow
3+1core: Brown, Black, Grey, Green/Yellow
4+1core: Light blue, Brown, Black, Grey, Green/Yellow
Outer sheath: Black PVC (Other color available upon request)

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

For mobile-electrical equipment used in factories, farm or household appliances or direct burial in ground.

Standard TIS 11 2553 , IEC 60502-1 ，IEC 60228

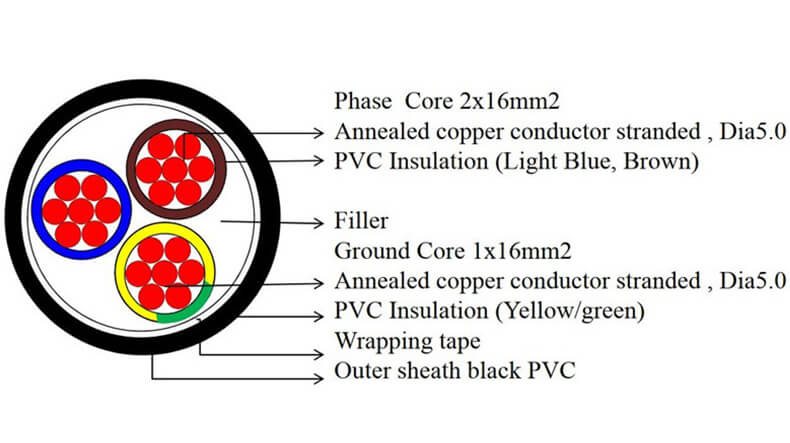

Construction Insulation: PVC. Black with white number identification or color code :

2core: Light blue, Brown

3core: Brown, Black, Grey

4core: Light blue, Brown, Black, Grey

2+1core: Light blue, Brown, Green/Yellow

3+1core: Brown, Black, Grey, Green/Yellow

4+1core: Light blue, Brown, Black, Grey, Green/Yellow

Outer sheath: Black PVC (Other color available upon request)

Product Data Sheet

TABLE1- CABLE VCT-G THREE (2+1) CORE

Cable type	Phase Conductor				Insulation	Ground Conductor				Insulation	Sheath	Approx. Overall dia.	Approx. weight
	Size	Class	Stranding wire	Approx. dia.	Nominal thickness	Size	Class	Stranding wire	Approx. dia.	Nominal thickness	Nominal thickness	Approx. Overall dia.	Approx. weight
	mm2	/	No.s	mm	mm	mm2	/	No.s	mm	mm	mm	mm	kg/km
2×10/10	10	2	7	4.05	1.1	10	2	7	4.05	1.1	1.8	17	500
2×16/16	16	2	7	5.1	1.1	16	2	7	5.1	1.1	2.0	20	710
2×25/16	25	2	≥6	5.6-6.5	1.3	16	2	7	5.1	1.1	2.0	22	950
2×35/16	35	2	≥6	6.6-7.5	1.3	16	2	7	5.1	1.1	2.0	24	1100

TABLE2- CABLE VCT-G FIVE (4+1) CORE

Cable type	Phase Conductor				Insulation	Ground Conductor				Insulation	Sheath	Approx. Overall dia.	Approx. weight
	Size	Class	Stranding wire	Approx. dia.	Nominal thickness	Size	Class	Stranding wire	Approx. dia.	Nominal thickness	Nominal thickness	Approx. Overall dia.	Approx. weight
	mm2	/	No.s	mm	mm	mm2	/	No.s	mm	mm	mm	mm	kg/km
4×10/10	10	2	7	4.05	1.1	10	2	7	4.05	1.1	2.0	21	750
4×16/16	16	2	7	5.1	1.1	16	2	7	5.1	1.1	2.0	24	1000
4×25/16	25	2	≥6	5.6-6.5	1.3	16	2	7	5.1	1.1	2.0	27	1400
4×35/16	35	2	≥6	6.6-7.5	1.3	16	2	7	5.1	1.1	2.2	29	1800
4×50/35	50	2	≥6	7.7-8.6	1.4	35	2	≥6	5.6-6.5	1.2	2.2	33	2500
4×70/25	70	2	≥12	9.3-10.2	1.4	25	22	≥6	6.6-7.5	1.2	2.4	38	3300

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
