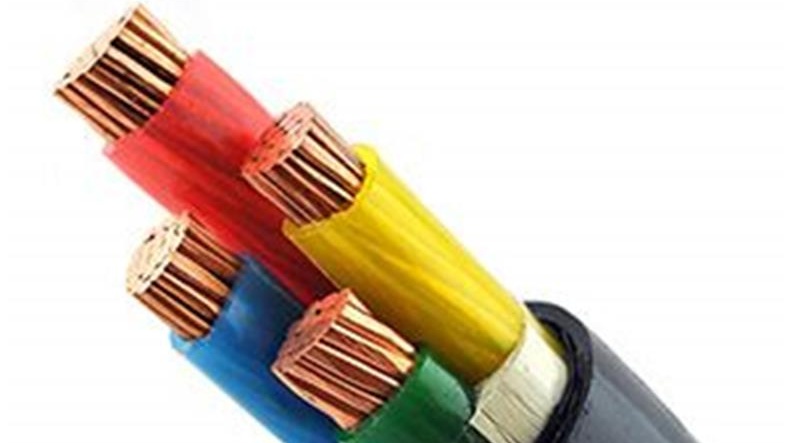

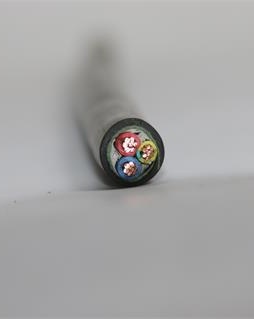

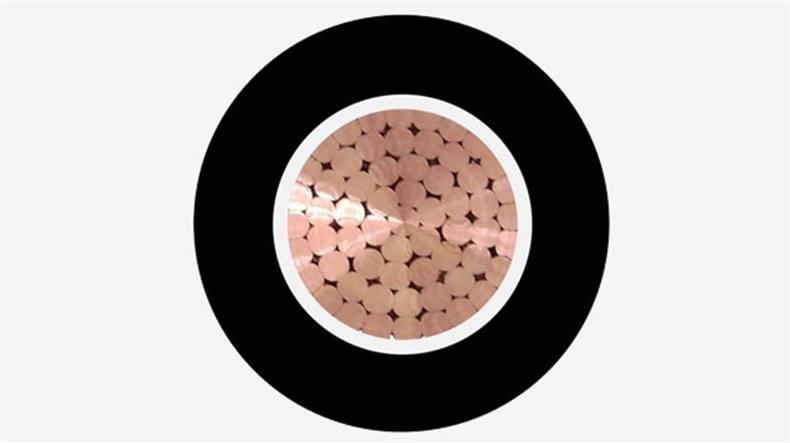

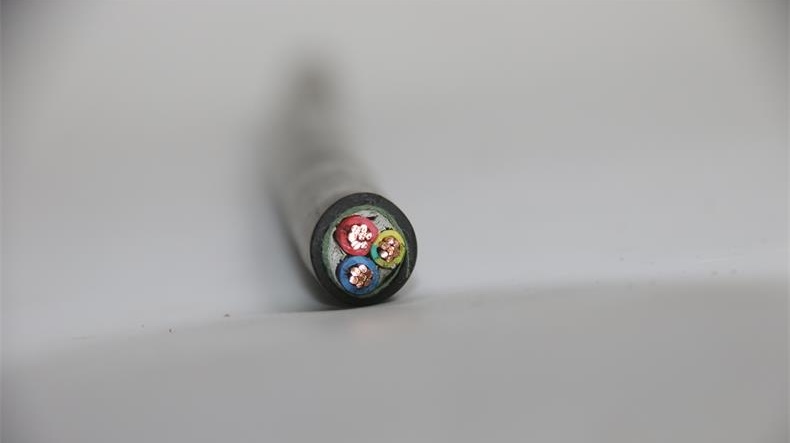

U1000 RO2V Cable

LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Application LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.
Standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc
Construction Conductor: Cu/Al (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC/PE/LSHF

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

Construction Conductor: Cu/Al (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath : PVC/PE/LSHF

Product Data Sheet

U1000 RO2V CABLE
Cable Size	Cable dia.			Cable weight
	None-armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	None-armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	6	10.8	11.6	52	43	155	145	167	157
2.5	6.5	11.3	12.1	66	50	175	159	189	173
4	7.4	12.2	13	91	66	211	187	225	200
6	8	12.8	13.6	115	78	243	206	258	221
10	8.9	13.7	14.5	160	99	300	238	316	255
16	9.9	14.7	15.5	224	126	377	279	395	297
25	11.3	16.1	16.9	322	171	493	341	512	361
35	12.3	17.1	18.4	418	209	601	392	647	438
50	13.9	18.7	20	567	273	771	477	822	528
70	15.6	20.4	21.7	760	347	985	573	1041	629
95	18	22.6	24.6	1031	463	1277	708	1387	818
120	19.4	24	26	1267	548	1530	811	1650	931
150	21.4	25.8	27.8	1557	671	1832	947	1960	1074
185	23.8	28	30.2	1938	830	2229	1121	2381	1273
240	26.8	31	33	2515	1061	2840	1385	2998	1544
300	29.6	33.8	36.8	3130	1305	3486	1662	3760	1935
400	33.1	37.7	40.7	3988	1637	4423	2072	4734	2383
500	36.7	41.3	44.3	5030	2035	5509	2514	5849	2854
630	40.5	45.1	49.1	6385	2517	6912	3044	7434	3566

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
