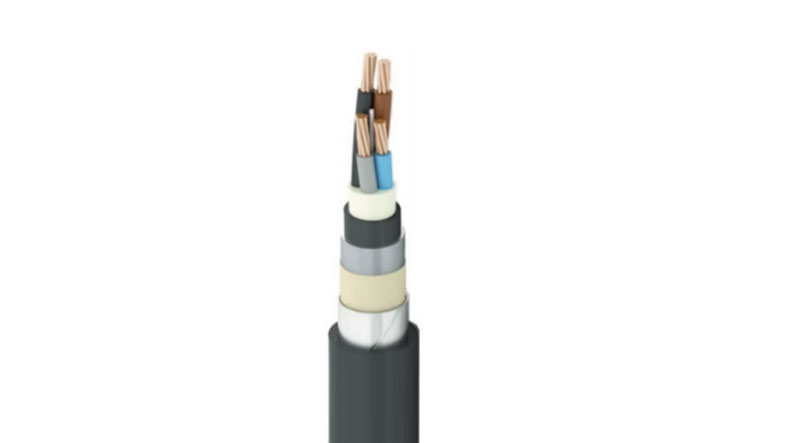

Power and control cable, 0,6/1 kV,+90 °C service temperature, lead sheathed, steel tape armoured, hydrocarbone resistant
Description: U-1000 RGPFV-RH is a type of low-voltage power cable used for electrical installations, particularly in industrial and energy distribution applications.
Rated Voltage: 0.6/1kV;

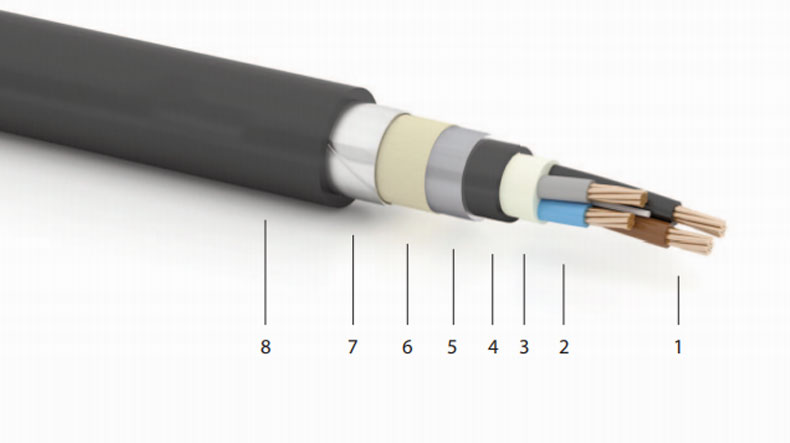

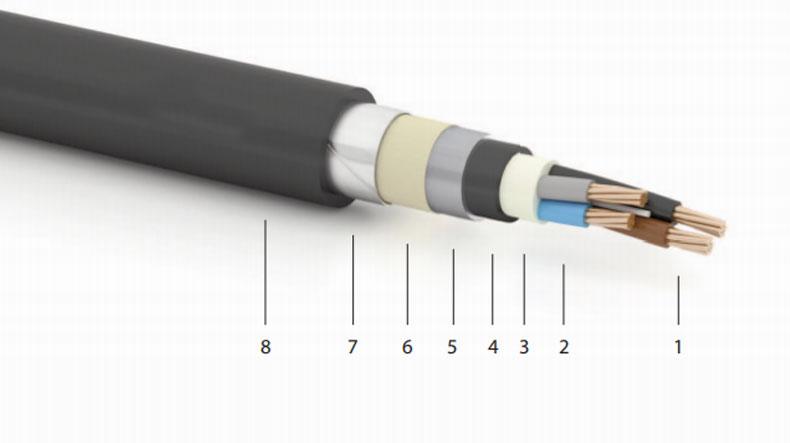

Construction:
1. Conductor: Copper conductor, bare, solid (class 1) or stranded (class 2)
2. Insulation: XLPE
3. Core covering: Tape or filler
4. Inner sheath: PVC
5. Metallic sheath: Lead
6. Armour: Steel tape
7. Outer sheath: PVC, black
Application: Lead sheathed,steel tape armoured and hydrocarbon resistant power cable with improved fire characteristics for domestic or industrial application. For fixed installation in open air,in ducts or cable tray as well as in pipes.This type is suitable for direct ground installation without protection.
| N° of cores and cross section | Insulation thickness | Lead sheath thickness | Armour | Outer diameter | Weight |
| mm² | approx. mm | ||||
| approx. mm | approx. mm | approx. mm | approx. kg/km | ||
| 2 x 1,5 re | 0,7 | 0,9 | 2 x 0,2 | 14,0 | 540 |
| 2 x 2,5 re | 0,7 | 0,9 | 2 x 0,2 | 15,0 | 610 |
| 2 x 4 re | 0,7 | 0,9 | 2 x 0,5 | 17,0 | 870 |
| 2 x 6 rm | 0,7 | 1,0 | 2 x 0,5 | 19,0 | 1100 |
| 2 x 10 rm | 0,7 | 1,0 | 2 x 0,5 | 20,5 | 1275 |
| 2 x 16 rm | 0,7 | 1,1 | 2 x 0,5 | 22,5 | 1605 |
| 2 x 25 rm | 0,9 | 1,2 | 2 x 0,5 | 26,5 | 2175 |
| 2 x 35 rm | 0,9 | 1,3 | 2 x 0,5 | 30,0 | 2820 |
| 3 x 1,5 re | 0,7 | 0,9 | 2 x 0,2 | 14,5 | 575 |
| 3 x 2,5 re | 0,7 | 0,9 | 2 x 0,5 | 16,5 | 830 |
| 3 x 4 re | 0,7 | 1,0 | 2 x 0,5 | 18,0 | 1000 |
| 3 x 6 rm | 0,7 | 1,0 | 2 x 0,5 | 19,5 | 1170 |
| 3 x 10 rm | 0,7 | 1,0 | 2 x 0,5 | 21,5 | 1400 |
| 3 x 16 rm | 0,7 | 1,1 | 2 x 0,5 | 24,0 | 1850 |
| 3 x 25 rm | 0,9 | 1,2 | 2 x 0,5 | 28,0 | 2500 |
| 3 x 35 rm | 0,9 | 1,3 | 2 x 0,5 | 31,0 | 3150 |
| 3 x 50 rm | 1,0 | 1,4 | 2 x 0,5 | 34,0 | 3950 |
| 3 x 70 rm | 1,1 | 1,5 | 2 x 0,5 | 40,0 | 5330 |
| 3 x 95 rm | 1,1 | 1,6 | 2 x 0,8 | 46,5 | 7400 |
| 3 x 120 rm | 1,2 | 1,7 | 2 x 0,8 | 50,5 | 8700 |
| 3 x 150 rm | 1,4 | 1,8 | 2 x 0,8 | 55,5 | 10470 |
| 3 x 185 rm | 1,6 | 1,9 | 2 x 0,8 | 60,0 | 12340 |
| 3 x 240 rm | 1,7 | 2,1 | 2 x 0,8 | 68,0 | 16000 |
| 3 x 300 rm | 1,8 | 2,2 | 2 x 0,8 | 74,0 | 19100 |
| 4 x 1,5 re | 0,7 | 0,9 | 2 x 0,5 | 16,5 | 800 |
| 4 x 2,5 re | 0,7 | 1,0 | 2 x 0,5 | 17,5 | 960 |
| 4 x 4 re | 0,7 | 1,0 | 2 x 0,5 | 18,5 | 1060 |
| 4 x 6 rm | 0,7 | 1,0 | 2 x 0,5 | 21,0 | 1350 |
| 4 x 10 rm | 0,7 | 1,1 | 2 x 0,5 | 23,0 | 1700 |
| 4 x 16 rm | 0,7 | 1,2 | 2 x 0,5 | 25,5 | 2200 |
| 4 x 25 rm | 0,9 | 1,3 | 2 x 0,5 | 30,0 | 3050 |
| 4 x 35 rm | 0,9 | 1,3 | 2 x 0,5 | 33,5 | 3770 |
| 4 x 50 rm | 1,0 | 1,5 | 2 x 0,5 | 37,5 | 4850 |
| 4 x 70 rm | 1,1 | 1,6 | 2 x 0,8 | 45,5 | 7000 |
| 4 x 95 rm | 1,1 | 1,7 | 2 x 0,8 | 50,5 | 8810 |
| 4 x 120 rm | 1,2 | 1,8 | 2 x 0,8 | 55,0 | 10600 |
| 4 x 150 rm | 1,4 | 1,9 | 2 x 0,8 | 59,5 | 12460 |
| 4 x 185 rm | 1,6 | 2,0 | 2 x 0,8 | 67,5 | 15700 |
| 4 x 240 rm | 1,7 | 2,1 | 2 x 0,8 | 73,5 | 19150 |
| 5 x 1,5 re | 0,7 | 1,0 | 2 x 0,5 | 18,0 | 1000 |
| 5 x 2,5 re | 0,7 | 1,0 | 2 x 0,5 | 18,5 | 1050 |
| 5 x 4 re | 0,7 | 1,0 | 2 x 0,5 | 20,0 | 1200 |
| 5 x 16 rm | 0,7 | 1,2 | 2 x 0,5 | 27,5 | 2480 |
| 7 x 1,5 re | 0,7 | 1,0 | 2 x 0,2 | 18,5 | 970 |
| 7 x 2,5 re | 0,7 | 1,0 | 2 x 0,2 | 19,5 | 1150 |
| 12 x 1,5 re | 0,7 | 1,1 | 2 x 0,2 | 22,0 | 1350 |
| 12 x 2,5 re | 0,7 | 1,1 | 2 x 0,2 | 24,0 | 1600 |
| 19 x 1,5 re | 0,7 | 1,1 | 2 x 0,2 | 24,5 | 1650 |
| 19 x 2,5 re | 0,7 | 1,2 | 2 x 0,2 | 27,0 | 2050 |
| 24 x 1,5 re | 0,7 | 1,2 | 2 x 0,2 | 27,5 | 2060 |
| 24 x 2,5 re | 0,7 | 1,3 | 2 x 0,2 | 30,5 | 2550 |
| 27 x 2,5 re | 0,7 | 1,4 | 2 x 0,2 | 31,5 | 2770 |
| 37 x 1,5 re | 0,7 | 1,3 | 2 x 0,2 | 31,0 | 2600 |
