Tracer Wire

Tracer wire is a type of wire used in underground installations to help locate and trace the path of buried pipes or cables.

Construction: Solid bare copper;High molecular weight polythylene
Application: Tracer wire is used to locate and trace underground utility lines, such as water, gas, and electrical pipelines, by emitting a detectable signal for excavation and maintenance purposes.
Feature: The advantage of tracer wire is that it enables accurate and efficient location of underground utilities, reducing the risk of accidental damage during excavation and improving safety and maintenance operations.

Request a Quote Leave Message

Description Product Parameter Packaging & Delivery FAQ

Product Introduction

Description: Tracer wire is a type of wire used in underground installations to help locate and trace the path of buried pipes or cables.

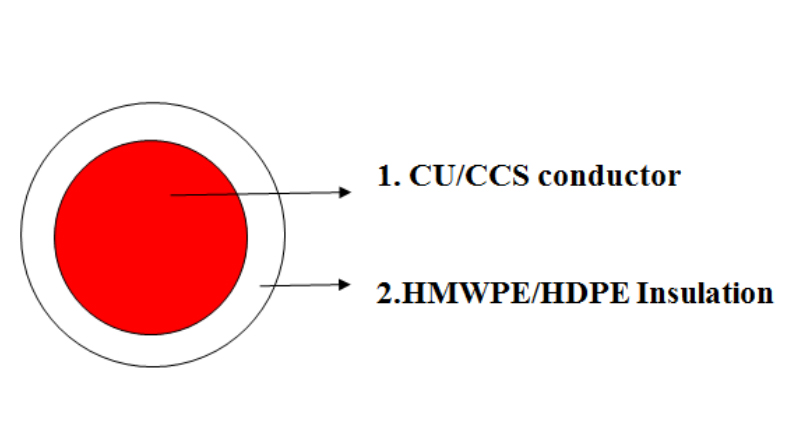

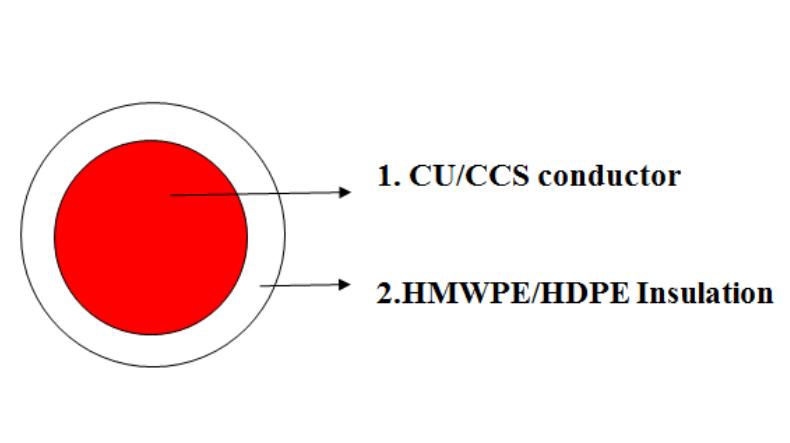

Construction: Copper Conductor/HMWPE Or HDPE Insulation;

Application: Tracer wire is often used in conjunction with other utilities, like water, sewer, or electrical lines, to make it easier to find and map these installations without having to dig them up.

Gauge	Stranding	Insulation Thickness	Outside Diameter Inches	Material Weight (Lbs./M’)
14	Solid	0.03	0.124	17
14	Solid	0.045	0.154	20
12	Solid	0.03	0.141	24
12	Solid	0.045	0.171	30
10	Solid	0.03	0.162	39
10	Solid	0.045	0.192	43

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
