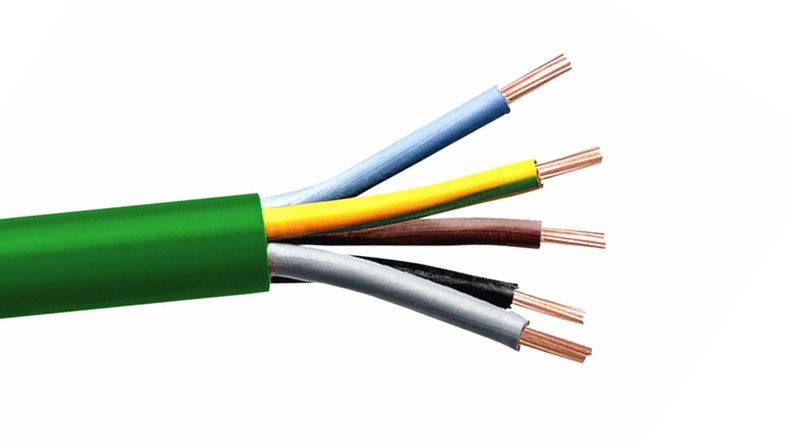

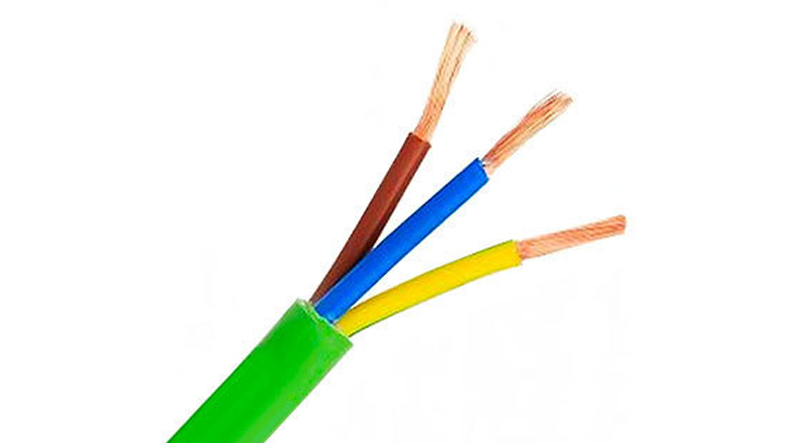

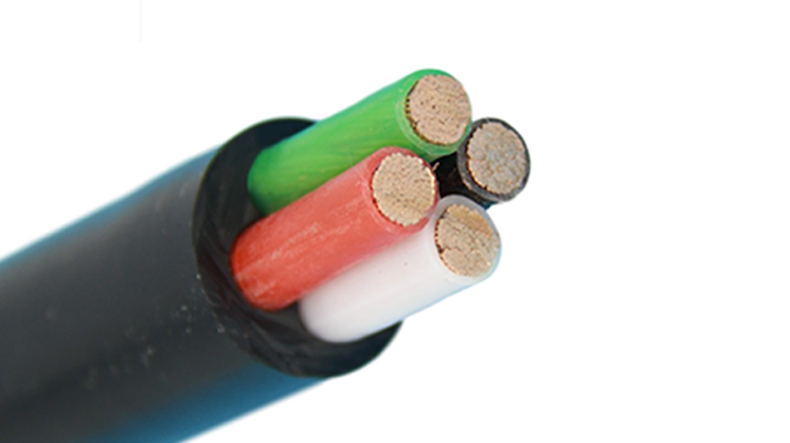

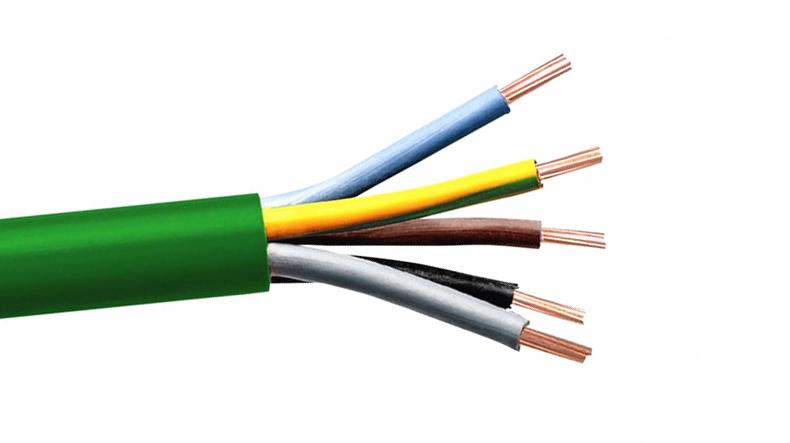

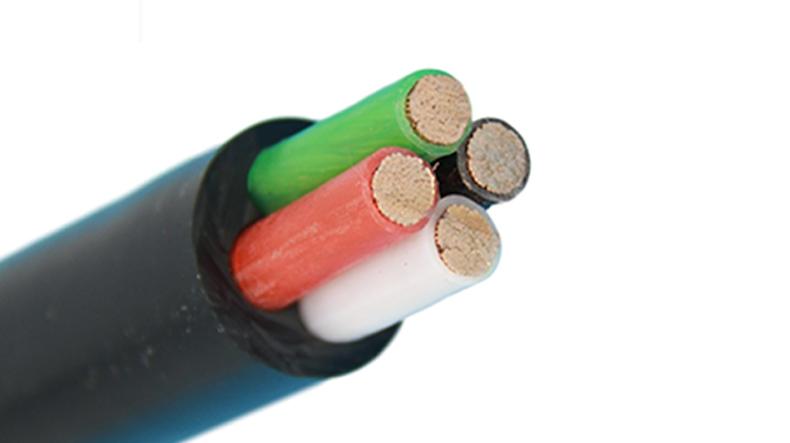

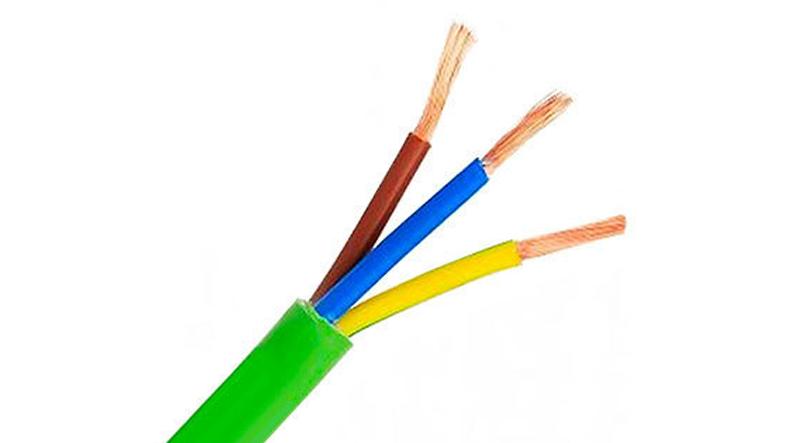

RZ1-K Xlpe Lszh Flexible Cable is a type of flexible power and control cable designed for indoor fixed applications.
Description: RZ1-K (or RZ1K) cable is a type of flexible power and control cable designed for indoor fixed applications.
Standard: IEC60228, IEC60502-1;
Rated voltage: 0.6/1kV;
Temperature Rating: -15°C to +90°C;
Application: RZ1-K (or RZ1K) cable are designed for fixed applications, produced with flexible conductors in order to facilitate installations with sinuous courses.These cables are normally used for installation to increase the level of security . Places where ere fire, smoke emission and toxic fumes create a potential threat to life and equipment.

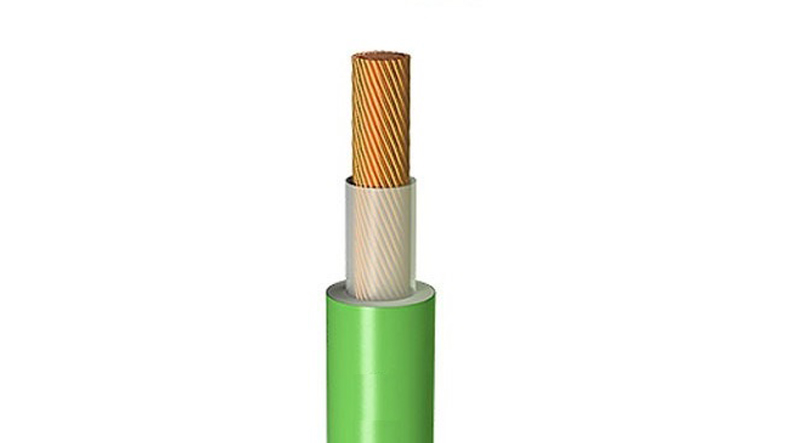

| RZ1-K CABLE SINGLE CORE | |||||
| No. of core | Size | Insulation Nominal thickness | Sheath Nominal thickness | Approx. cable over all dia. | Approx. Weight |
| / | mm2 | mm | mm | mm | kg/km |
| 1 | 1.5 | 0.7 | 1.4 | 5.8 | 46 |
| 1 | 2.5 | 0.7 | 1.4 | 6.3 | 58 |
| 1 | 4 | 0.7 | 1.4 | 6.8 | 76 |
| 1 | 6 | 0.7 | 1.4 | 7.9 | 101 |
| 1 | 10 | 0.7 | 1.4 | 9.1 | 145 |
| 1 | 16 | 0.7 | 1.4 | 10.4 | 206 |
| 1 | 25 | 0.9 | 1.4 | 12.3 | 305 |
| 1 | 35 | 0.9 | 1.4 | 13.6 | 400 |
| 1 | 50 | 1.0 | 1.4 | 15.5 | 547 |
| 1 | 70 | 1.1 | 1.4 | 17.6 | 740 |
| 1 | 95 | 1.1 | 1.5 | 19.8 | 980 |
| 1 | 120 | 1.2 | 1.5 | 22.7 | 1226 |
| 1 | 150 | 1.4 | 1.6 | 24.5 | 1517 |
| 1 | 185 | 1.6 | 1.6 | 27.2 | 1858 |
| 1 | 240 | 1.7 | 1.7 | 30.5 | 2381 |
| 1 | 300 | 1.8 | 1.8 | 33.9 | 2952 |
| 1 | 400 | 2.0 | 1.9 | 38.5 | 3893 |
| 1 | 500 | 2.2 | 2.0 | 43.2 | 4845 |
| 1 | 630 | 2.4 | 2.2 | 47.5 | 6070 |
| RZ1-K CABLE 2 CORE | |||||
| No. of core | Size | Insulation Nominal thickness | Sheath Nominal thickness | Approx. cable over all dia. | Approx. Weight |
| / | mm2 | mm | mm | mm | kg/km |
| 2 | 1.5 | 0.7 | 1.8 | 10.2 | 115 |
| 2 | 2.5 | 0.7 | 1.8 | 11.2 | 141 |
| 2 | 4 | 0.7 | 1.8 | 12.2 | 180 |
| 2 | 6 | 0.7 | 1.8 | 14.3 | 243 |
| 2 | 10 | 0.7 | 1.8 | 16.7 | 347 |
| 2 | 16 | 0.7 | 1.8 | 19.3 | 492 |
| 2 | 25 | 0.9 | 1.8 | 23.2 | 706 |
| 2 | 35 | 0.9 | 1.8 | 25.8 | 915 |
| 2 | 50 | 1 | 1.8 | 29.6 | 1228 |
| 2 | 70 | 1.1 | 1.8 | 33.8 | 1653 |
| 2 | 95 | 1.1 | 2 | 38.2 | 2210 |
| 2 | 120 | 1.2 | 2.1 | 44.2 | 2804 |
| 2 | 150 | 1.4 | 2.2 | 47.6 | 3398 |
| 2 | 185 | 1.6 | 2.3 | 53.4 | 4234 |
| 2 | 240 | 1.7 | 2.5 | 59.9 | 5463 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
