NYY cable is a type of electrical cable commonly used for power distribution and installation in fixed installations with a voltage rating of up to 0.6/1kV. The acronym “NYY” stands for “N” indicating that it is a cable for general applications, “Y” indicating that it has PVC insulation, and “Y” again indicating PVC sheathing.
Description: NYY cable is a type of electrical cable commonly used for power distribution and installation in fixed installations with a voltage rating of up to 0.6/1kV. The acronym "NYY" stands for "N" indicating that it is a cable for general applications, "Y" indicating that it has PVC insulation, and "Y" again indicating PVC sheathing.
Voltage: 0.6/1kV
Standard: IEC 60502-1, VDE 0276-603, HD 603, IEC 60228

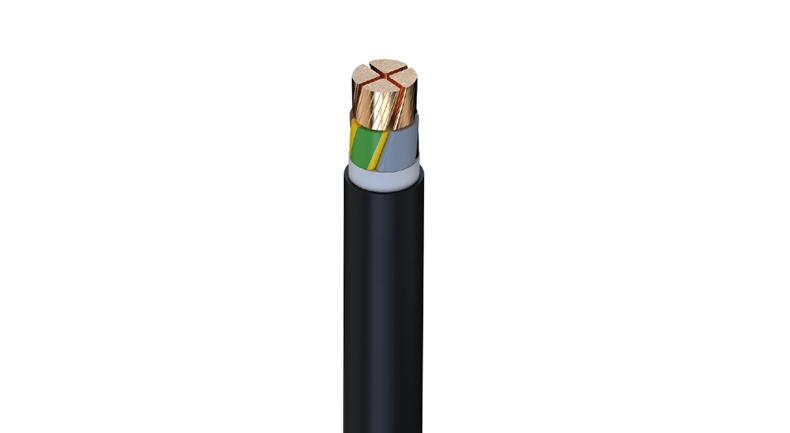

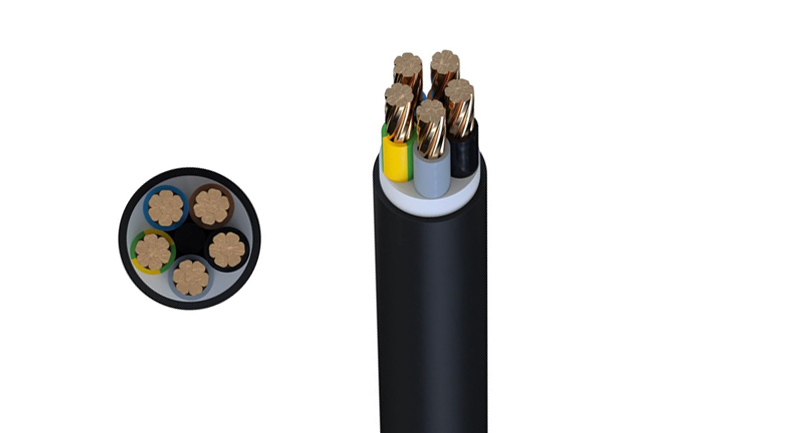

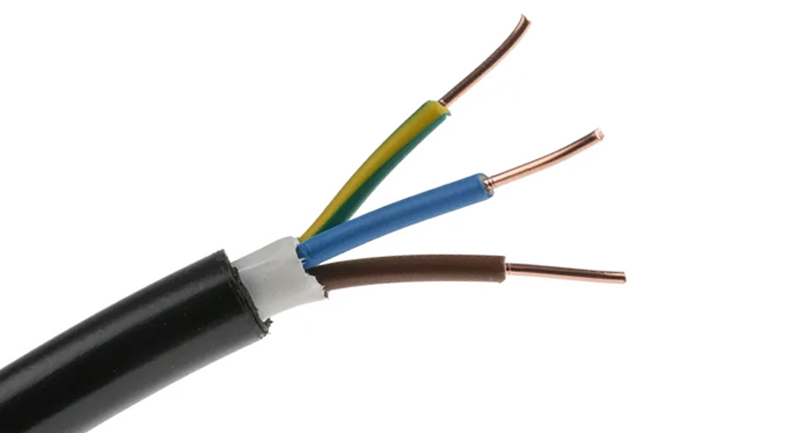

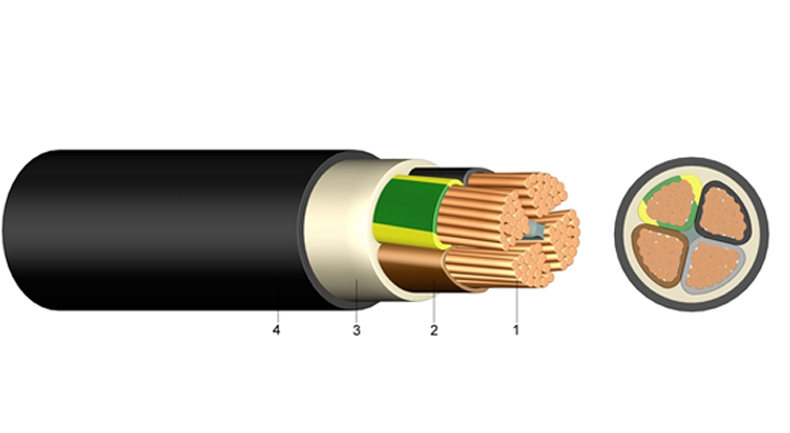

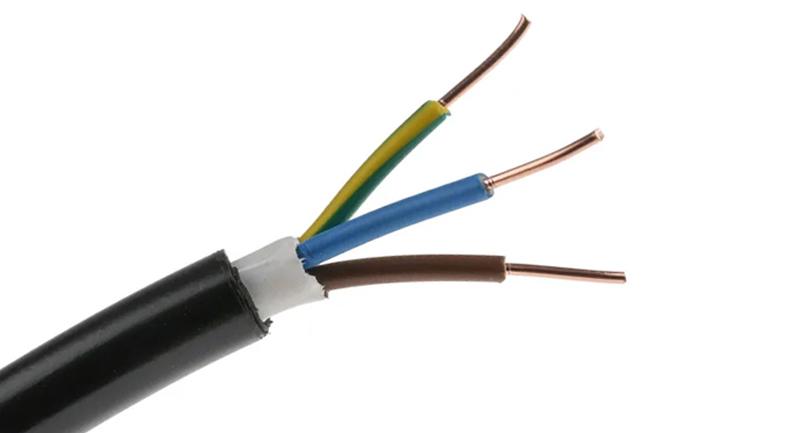

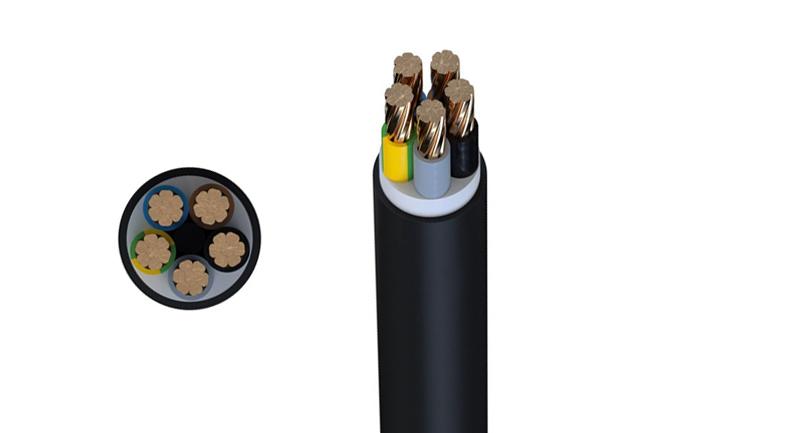

Construction: Conductor: Copper Conductor; Insulation: PVC; Sheath: PVC
Feature: Weather Resistance; Versatility; Flame Resistance
Application: Power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 |
CONDUCTOR TYPE | NOMINAL THICKNESS OF INSULATION mm |
NOMINAL THICKNESS OF SHEATH mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| 1 | 2.5 | RE | 0.8 | 1.4 | 6.15 | 62 |
| 1 | 4 | RE | 1 | 1.4 | 7.5 | 85 |
| 1 | 6 | RE | 1 | 1.4 | 7.5 | 108 |
| 1 | 10 | RM | 1 | 1.4 | 8.6 | 155 |
| 1 | 16 | RM | 1 | 1.4 | 9.6 | 218 |
| 1 | 25 | RM | 1.2 | 1.4 | 11.1 | 318 |
| 1 | 35 | RM | 1.2 | 1.4 | 12.1 | 414 |
| 1 | 50 | RM | 1.4 | 1.4 | 13.7 | 552 |
| 1 | 70 | RM | 1.4 | 1.4 | 15.5 | 750 |
| 1 | 95 | RM | 1.6 | 1.5 | 17.6 | 1020 |
| 1 | 120 | RM | 1.6 | 1.6 | 19.3 | 1259 |
| 1 | 150 | RM | 1.8 | 1.6 | 21 | 1546 |
| 1 | 185 | RM | 2 | 1.7 | 23.2 | 1913 |
| 1 | 240 | RM | 2.2 | 1.8 | 26.2 | 2471 |
| 1 | 300 | RM | 2.4 | 2 | 29.2 | 3097 |
| 2 | 1.5 | RE | 0.8 | 1.8 | 10 | 147 |
| 2 | 2.5 | RE | 0.8 | 1.8 | 10.7 | 179 |
| 2 | 4 | RM | 1 | 1.8 | 13 | 268 |
| 2 | 6 | RM | 1 | 1.8 | 14.2 | 337 |
| 2 | 10 | RM | 1 | 1.8 | 16.2 | 472 |
| 2 | 16 | RM | 1 | 1.8 | 18.2 | 644 |
| 3 | 1.5 | RE | 0.8 | 1.8 | 10.4 | 166 |
| 3 | 2.5 | RE | 0.8 | 1.8 | 11.3 | 212 |
| 3 | 4 | RE | 1 | 1.8 | 13.1 | 299 |
| 3 | 6 | RM | 1 | 1.8 | 15 | 402 |
| 3 | 10 | RM | 1 | 1.8 | 17.1 | 570 |
| 3 | 16 | RM | 1 | 1.8 | 19.2 | 789 |
| 3 | 25 | RM | 1.2 | 1.8 | 22.1 | 1141 |
| 3 | 35 | RM | 1.2 | 1.8 | 24.1 | 1462 |
| 3 | 50 | RM | 1.4 | 1.8 | 27.6 | 1964 |
| 3 | 70 | RM | 1.6 | 2.1 | 36.3 | 3635 |
| 3 | 95 | RM | 1.6 | 2.2 | 40 | 4488 |
| 4 | 1.5 | RE | 0.8 | 1.8 | 11.6 | 198 |
| 4 | 2.5 | RE | 0.8 | 1.8 | 12.1 | 252 |
| 4 | 4 | RM | 1 | 1.8 | 15.1 | 391 |
| 4 | 6 | RM | 1 | 1.8 | 16.5 | 465 |
| 4 | 10 | RM | 1 | 1.8 | 18.6 | 702 |
| 4 | 16 | RM | 1 | 1.8 | 21.1 | 992 |
| 4 | 25 | RM | 1.2 | 1.8 | 24.2 | 1431 |
| 4 | 35 | RM | 1.2 | 1.8 | 26.6 | 1861 |
| 4 | 50 | RM | 1.4 | 1.9 | 30.9 | 2535 |
| 4 | 70 | RM | 1.4 | 2.1 | 35.1 | 3441 |
| 4 | 95 | RM | 1.6 | 2.2 | 40.4 | 4691 |
| 4 | 120 | RM | 1.6 | 2.4 | 44.2 | 5757 |
| 4 | 150 | RM | 1.8 | 2.5 | 48.5 | 7095 |
| 4 | 185 | RM | 2 | 2.7 | 53.9 | 8810 |
| 4 | 240 | RM | 2.2 | 2.9 | 61.1 | 11400 |
| 5 | 1.5 | RE | 10.8 | 1.8 | 12 | 232 |
| 5 | 2.5 | RE | 0.8 | 1.8 | 13.1 | 302 |
| 5 | 4 | RM | 1 | 1.8 | 16.6 | 477 |
| 5 | 6 | RM | 1 | 1.8 | 18.2 | 618 |
| 5 | 10 | RM | 1 | 1.8 | 20.3 | 853 |
| 5 | 16 | RM | 1 | 1.8 | 23.1 | 1212 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
