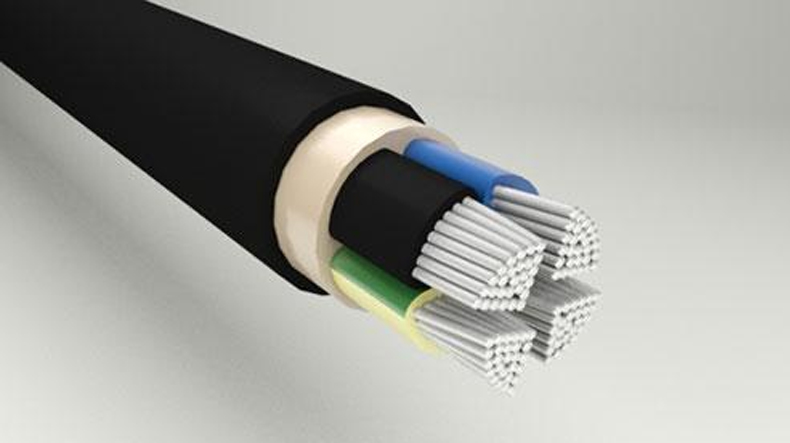

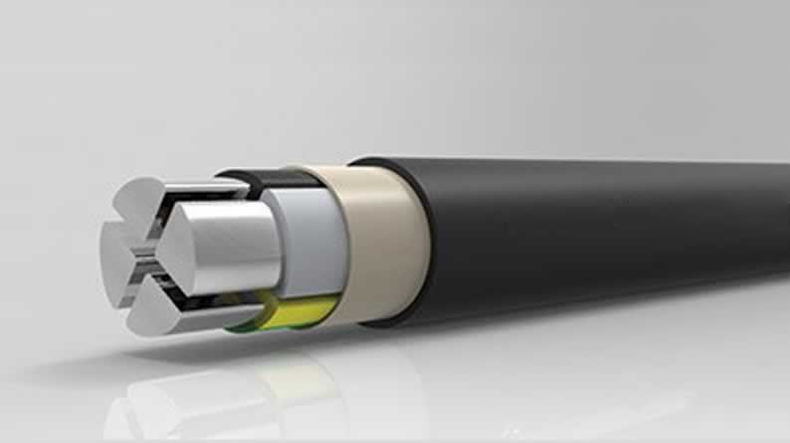

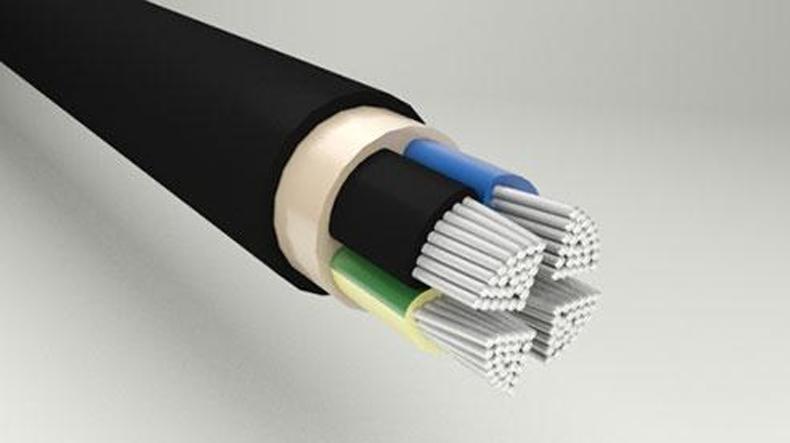

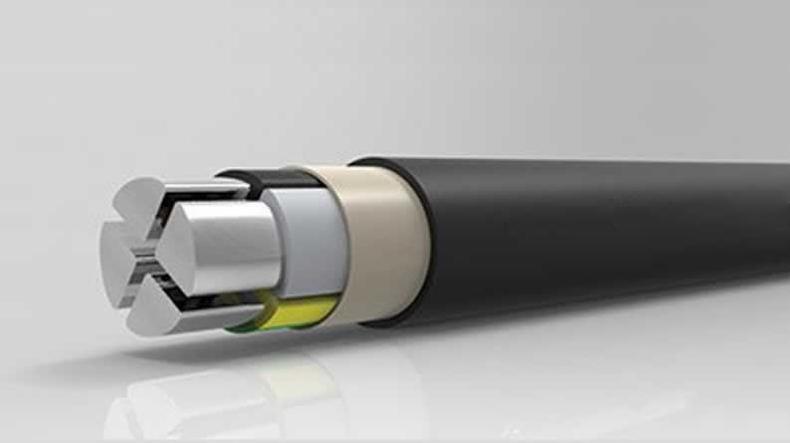

The NAYY cable is a type of power cable commonly used in electrical installations for distributing electricity.
Description: The NAYY cable is a type of power cable commonly used in electrical installations for distributing electricity.
Voltage:0.6/1 kV;

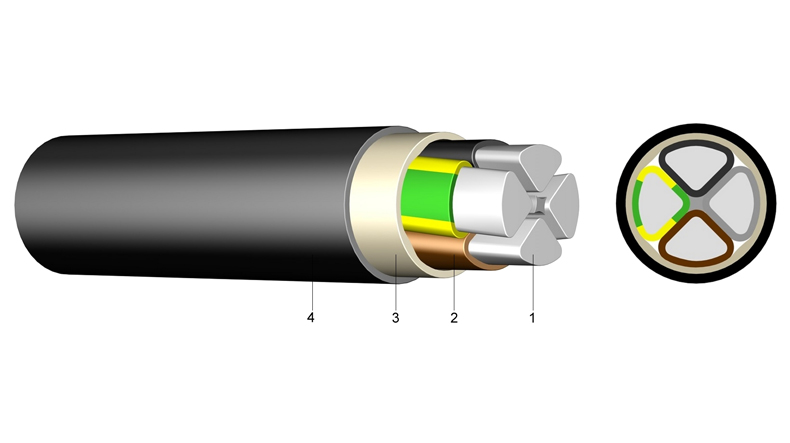

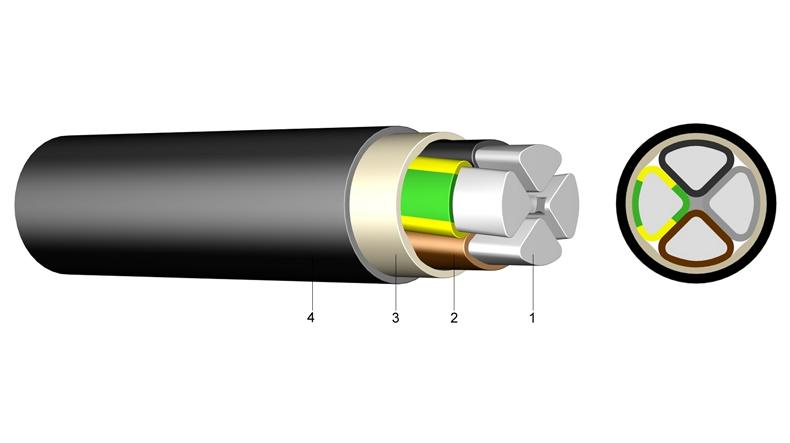

structure: Aluminum/PVC/PVC;
Operating Temperature: -5°C to +70°C;
Application: For fixed installation in buildings, in free air, in ground and in water.
| NO. OF CORES | CONDUCTOR TYPE | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL THICKNESS OF INSULATION mm | FIXED INSTALLATION BENDING RADIUS mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 1 | RE | 16 | 1 | 158 | 1.8 | 10.5 | 145 |
| 1 | RE | 25 | 1.2 | 180 | 1.8 | 12 | 195 |
| 1 | RE | 35 | 1.2 | 203 | 1.8 | 13.5 | 255 |
| 1 | RM | 50 | 1.4 | 231 | 1.8 | 15.4 | 298 |
| 1 | RM | 70 | 1.4 | 255 | 1.8 | 17 | 383 |
| 1 | RM | 95 | 1.6 | 285 | 1.8 | 19 | 490 |
| 1 | RM | 120 | 1.6 | 300 | 1.8 | 20 | 575 |
| 1 | RM | 150 | 1.8 | 330 | 1.8 | 22 | 695 |
| 1 | RM | 185 | 2 | 375 | 1.8 | 25 | 845 |
| 1 | RM | 240 | 2.2 | 420 | 1.8 | 28 | 1100 |
| 1 | RM | 300 | 2.4 | 450 | 1.9 | 30 | 1379 |
| 1 | RM | 400 | 2.6 | 510 | 2 | 34 | 1615 |
| 1 | RM | 500 | 2.8 | 555 | 2.1 | 37 | 2015 |
| 1 | RM | 630 | 2.8 | 645 | 2.2 | 43 | 2472 |
| 3 | SM | 300 | 2.4 | 708 | 3 | 59 | 4500 |
| 4 | RE | 6 | 1 | 204 | 1.8 | 17 | 377 |
| 4 | RE | 10 | 1 | 285 | 1.8 | 19 | 470 |
| 4 | RE | 16 | 1.2 | 288 | 1.8 | 24 | 750 |
| 4 | RE | 25 | 1.2 | 300 | 1.8 | 25 | 950 |
| 4 | RE | 35 | 1.2 | 354 | 1.8 | 28.1 | 1120 |
| 4 | SM | 50 | 1.4 | 354 | 1.9 | 29.5 | 1151 |
| 4 | SM | 70 | 1.4 | 420 | 2.1 | 33.4 | 1549 |
| 4 | SM | 95 | 1.6 | 468 | 2.2 | 39 | 2030 |
| 4 | SM | 120 | 1.6 | 516 | 2.4 | 43 | 2400 |
| 4 | SM | 150 | 1.8 | 552 | 2.5 | 46 | 3030 |
| 4 | SM | 185 | 2 | 612 | 2.7 | 51 | 3650 |
| 4 | SM | 240 | 2.2 | 696 | 2.9 | 58 | 4800 |
| 4 | SM | 300 | 2.4 | 786 | 3 | 65.5 | 5685 |
| 5 | RE | 10 | 1 | 232 | 1.8 | 19.3 | 585 |
| 5 | RE | 16 | 1 | 262 | 1.8 | 21.8 | 938 |
| 5 | RE | 25 | 1.2 | 325 | 1.8 | 27.1 | 1188 |
| 5 | RE | 35 | 1.2 | 362 | 1.8 | 30.2 | 1375 |
| 5 | RM | 50 | 1.4 | 432 | 1.8 | 36.2 | 1720 |
| 5 | RM | 70 | 1.4 | 492 | 2.1 | 44 | 2240 |
| 5 | RM | 95 | 1.6 | 564 | 2.1 | 47 | 3060 |
| 5 | RM | 120 | 1.6 | 612 | 2.4 | 53 | 3580 |
| 5 | RM | 150 | 1.8 | 672 | 2.5 | 56 | 4400 |
| 5 | RM | 185 | 2 | 804 | 2.7 | 59 | 5481 |
| 5 | RM | 240 | 2.2 | 852 | 2.9 | 71 | 7000 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
