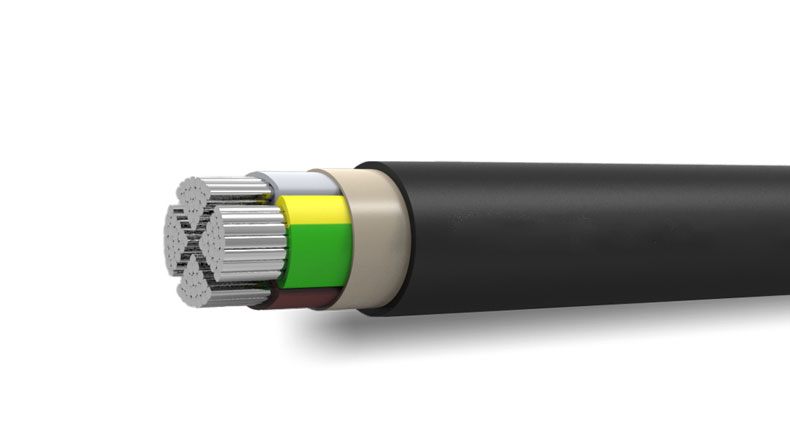

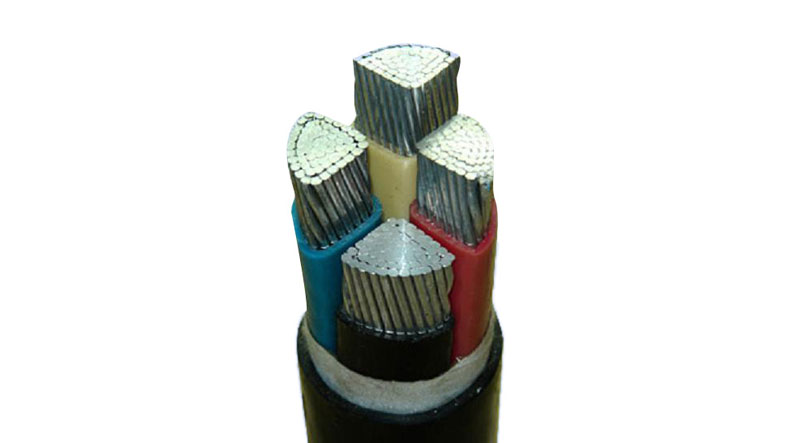

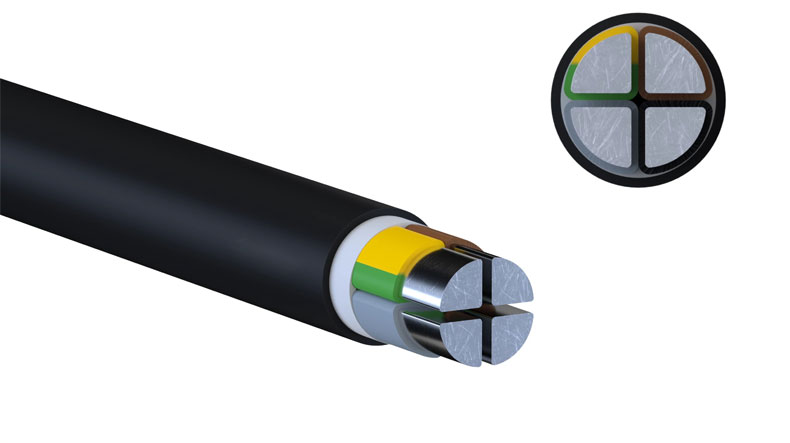

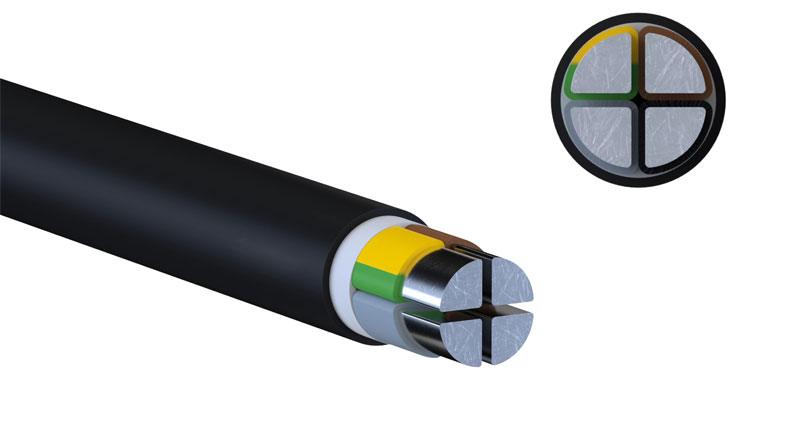

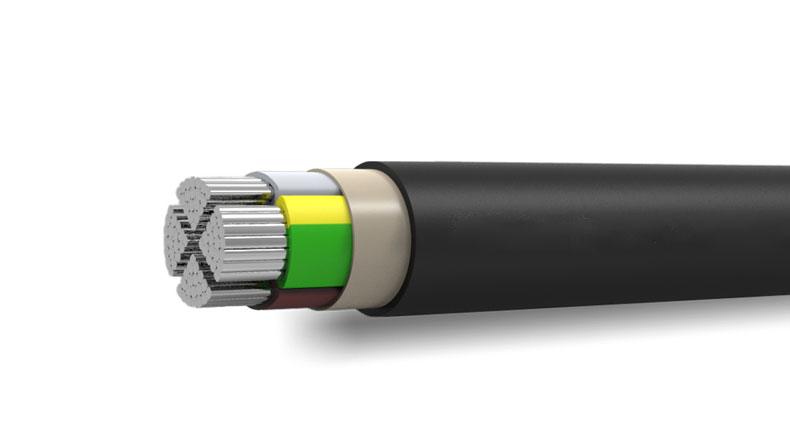

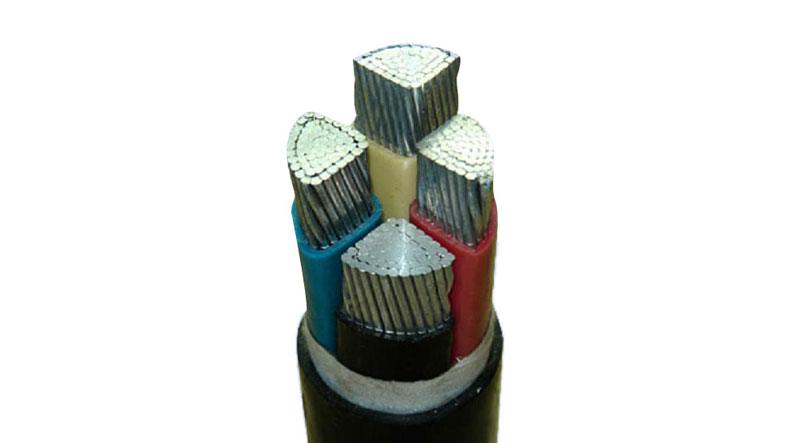

The NA2XY cable is a type of low-voltage power cable typically used for electrical installations in various applications. The designation NA2XY refers to a specific construction and set of characteristics that describe the cable’s materials, structure, and intended use.
Description: The NA2XY cable is a type of low-voltage power cable typically used for electrical installations in various applications. The designation NA2XY refers to a specific construction and set of characteristics that describe the cable’s materials, structure, and intended use.
Rating Voltage: 0.6/1kV;
Standard: IEC 60502-1, VDE 0276-603;
Construction: Aluminum Conductor/XLPE Insulation/PVC Sheath;
Application: For fixed installation in buildings, in free air, in ground and in water.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL THICKNESS OF INSULATION mm | NOMINAL THICKNESS OF SHEATH mm | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km | |
| Phase Conducto | Earth Conductor | |||||
| 1 | 95 | – | 1.1 | 1.5 | 16.5 | 390 |
| 1 | 120 | – | 1.2 | 1.8 | 17.7 | 465 |
| 1 | 150 | – | 1.4 | 1.8 | 20.1 | 580 |
| 1 | 185 | – | 1.6 | 1.8 | 22. 1 | 715 |
| 1 | 240 | – | 1.7 | 1.8 | 25 | 905 |
| 1 | 300 | – | 1.8 | 1.8 | 27.5 | 1120 |
| 1 | 400 | – | 2 | 1.9 | 31.4 | 1440 |
| 1 | 500 | – | 2.2 | 2 | 34.6 | 1770 |
| 1 | 630 | – | 2.4 | – | 37 | 2180 |
| 3 | 70 | 35 | 1.1 | 1.9 | 33 | 1450 |
| 3 | 95 | 50 | 1.1 | 2.1 | 37.3 | 1910 |
| 3 | 120 | 70 | 1.2 | 2.2 | 41.5 | 2410 |
| 3 | 150 | 70 | 1.4 | 2.3 | 49 | 3535 |
| 3 | 185 | 95 | 1.6 | 2.5 | 51 | 3810 |
| 3 | 240 | 120 | 1.7 | 2.7 | 58 | 4880 |
| 3 | 300 | 150 | 1.8 | 2.8 | 64.2 | 5610 |
| 4 | 16 | 16 | 0.9 | 1.8 | 22.4 | 675 |
| 4 | 25 | 16 | 0.9 | 1.8 | 26 | 910 |
| 4 | 35 | 16 | 0.9 | 1.8 | 28.7 | 1120 |
| 4 | 50 | 25 | 1 | 1.8 | 33 | 1475 |
| 4 | 70 | 35 | 1.1 | 1.9 | 38 | 1985 |
| 4 | 95 | 50 | 1.1 | 2.1 | 23 | 2580 |
| 4 | 120 | 70 | 1.2 | 2.2 | 47.2 | 3175 |
| 4 | 150 | 70 | 1.4 | 2.3 | 54.2 | 4035 |
| 4 | 185 | 95 | 1.6 | 2.5 | 59.4 | 4945 |
| 4 | 240 | 120 | 1.7 | 2.7 | 68.1 | 6425 |
| 4 | 300 | 150 | 1.8 | 2.8 | 75.1 | 7910 |
