These power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.

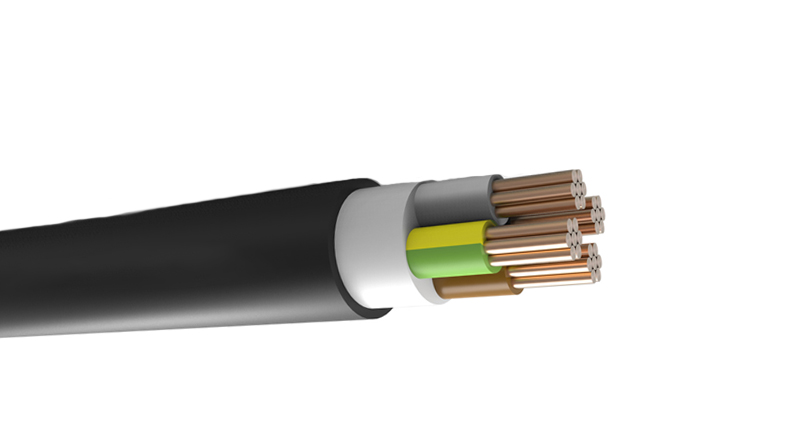

Description:The N2XH cable is a specific type of power cable designed for various electrical installations, particularly indoors where safety in case of fire is a priority.
Voltage: 0.6/1kV;
Standard: IEC 60502-1; IEC/EN 60228; EN 62230;

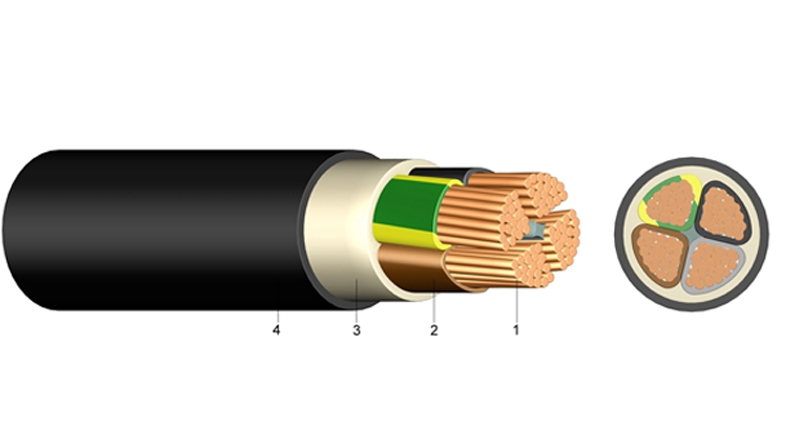

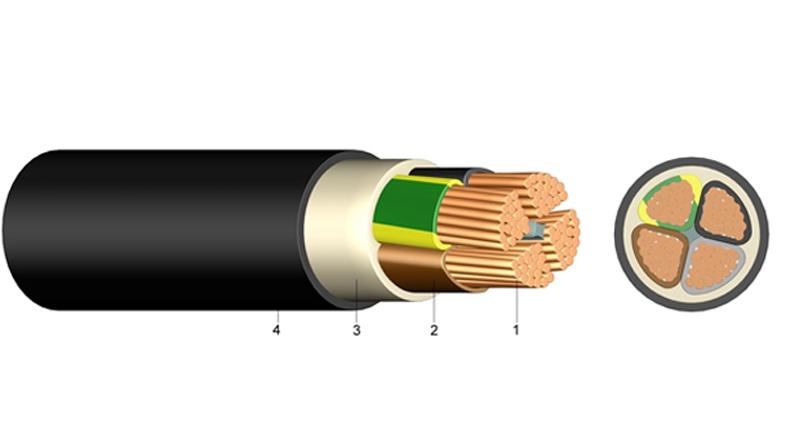

Construction: Conductor: Bare copper; Insulation: XLPE; Sheath: LSZH;
Application: These power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 |
CONDUCTOR TYPE | NOMINAL THICKNESS OF INSULATION mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| 3 | 1.5 | RE | 0.7 | 9.8 | 145 |
| 3 | 2.5 | RE | 0.7 | 10.6 | 180 |
| 3 | 4 | RE | 0.7 | 11.65 | 235 |
| 3 | 6 | RE | 0.7 | 12.7 | 325 |
| 3 | 10 | RE | 0.7 | 15.35 | 485 |
| 3 | 16 | RE | 0.7 | 17.4 | 705 |
| 3 | 25 | RM | 0.9 | 21.15 | 1080 |
| 3 | 35 | SM | 0.9 | 23.6 | 1425 |
| 3 | 50 | SM | 1 | 26.65 | 1840 |
| 3 | 70 | SM | 1.1 | 30.7 | 2540 |
| 3 | 95 | SM | 1.1 | 35 | 3430 |
| 3 | 120 | SM | 1.3 | 38.65 | 4440 |
| 3 | 150 | SM | 1.4 | 44 | 5380 |
| 3 | 185 | SM | 1.6 | 48.3 | 6920 |
| 3 | 240 | SM | 1.7 | 55 | 8420 |
| 3 | 300 | SM | 1.8 | 60.3 | 10927 |
| 3 | 400 | SM | 2 | 67.8 | 13709 |
| 3 + E | 45581 | RE | 0.7 | 18.45 | 779 |
| 3 + E | 25/16 | RM | 0.9 | 22.4 | 1175 |
| 3 + E | 35/16 | SM | 0.9 | 24.3 | 1480 |
| 3 + E | 50/25 | SM | 1 | 28 | 2031 |
| 3 + E | 70/35 | SM | 1.1 | 31.9 | 2813 |
| 3 + E | 95/50 | SM | 1.1 | 36.4 | 3772 |
| 3 + E | 120/70 | SM | 1.3 | 40.65 | 4858 |
| 3 + E | 150/70 | SM | 1.4 | 45.4 | 5680 |
| 3 + E | 185/95 | SM | 1.6 | 50.1 | 7082 |
| 3 + E | 240/120 | SM | 1.7 | 56.7 | 9363 |
| 3 + E | 300/150 | SM | 1.9 | 62.6 | 11939 |
| 4 | 1.5 | RE | 0.7 | 10.5 | 170 |
| 4 | 2.5 | RE | 0.7 | 11.4 | 215 |
| 4 | 4 | RE | 0.7 | 12.6 | 290 |
| 4 | 6 | RE | 0.7 | 13.75 | 390 |
| 4 | 10 | RE | 0.7 | 17 | 600 |
| 4 | 16 | RE | 0.7 | 19 | 870 |
| 4 | 25 | RM | 0.9 | 23.35 | 1365 |
| 4 | 35 | SM | 0.9 | 25.85 | 1875 |
| 4 | 50 | SM | 1 | 29.45 | 2550 |
| 4 | 70 | SM | 1.1 | 34 | 3010 |
| 4 | 95 | SM | 1.1 | 38.75 | 3960 |
| 4 | 120 | SM | 1.3 | 42.55 | 5160 |
| 4 | 150 | SM | 1.4 | 48.7 | 6150 |
| 4 | 185 | SM | 1.6 | 53.45 | 7780 |
| 4 | 240 | SM | 1.7 | 60.9 | 9550 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
