Application LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.
Standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

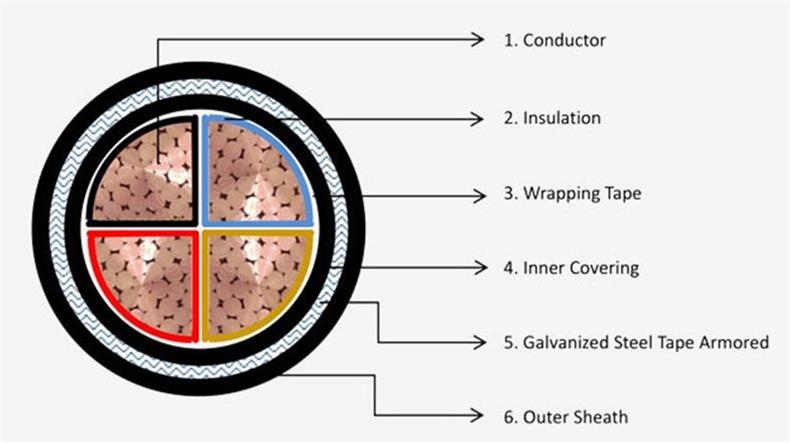

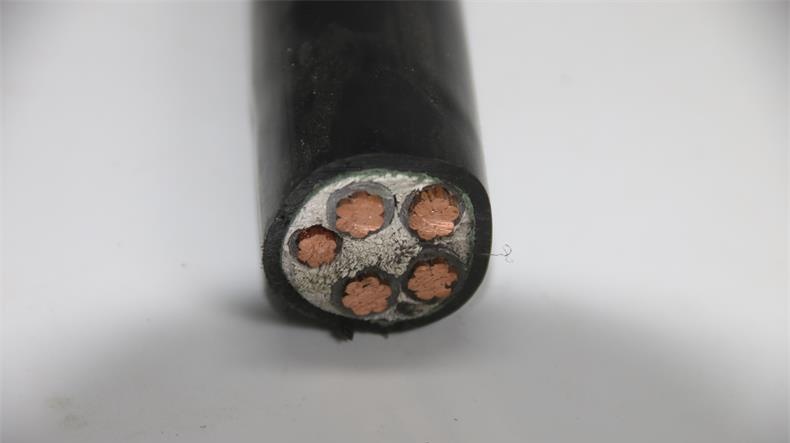

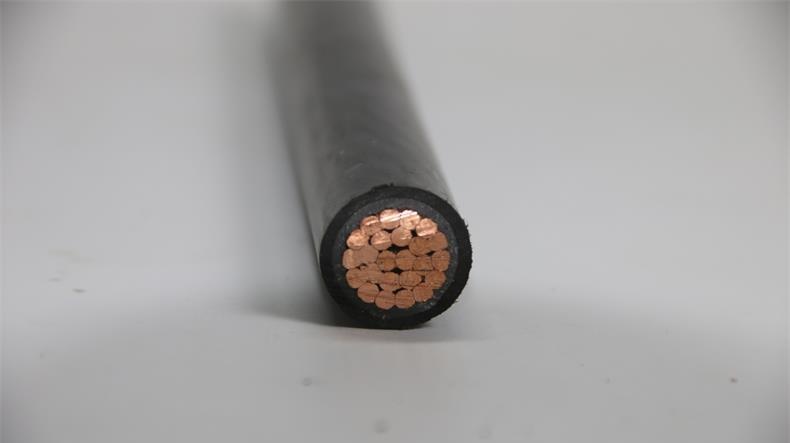

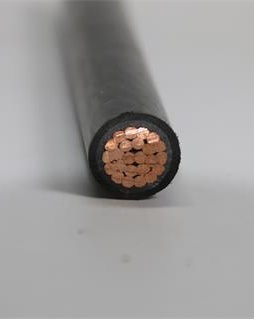

Construction Conductor: Cu/Al (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC/PE/LSHF
Features 1.Rated voltage: 0.6/1KV
2.Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
3.Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation
In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulatio
| Conductor Size | Solid | Stranded | |||||
| Compact | Class B
Compressed |
Class B | Class C | Class D | |||
| AWG /kcmil | mm2 | mm | mm | mm | mm | mm | mm |
| 18 | 0.823 | 1.02 | – | – | 1.17 | – | – |
| 16 | 1.31 | 1.29 | – | – | 1.47 | – | – |
| 15 | 1.65 | 1.45 | – | – | 1.65 | – | – |
| 14 | 2.08 | 1.63 | – | 1.79 | 1.84 | 1.87 | 1.87 |
| 13 | 2.63 | 1.83 | – | 2.02 | 2.07 | 2.1 | 2.1 |
| 12 | 3.31 | 2.052 | – | 2.26 | 2.32 | 2.35 | 2.36 |
| 11 | 4.17 | 2.3 | – | 2.53 | 2.62 | 2.64 | 2.64 |
| 10 | 5.26 | 2.59 | – | 2.87 | 2.95 | 2.97 | 2.97 |
| 9 | 6.63 | 2.91 | – | 3.2 | 3.3 | 3.33 | 3.35 |
| 8 | 8.37 | 3.26 | 3.4 | 3.58 | 3.71 | 3.76 | 3.76 |
| 7 | 10.6 | 3.67 | – | 4.01 | 4.17 | 4.22 | 4.22 |
| 6 | 13.3 | 4.11 | 4.29 | 4.52 | 4.67 | 4.72 | 4.72 |
| 5 | 16.8 | 4.62 | – | 5.08 | 5.23 | 5.28 | 5.31 |
| 4 | 21.1 | 5.19 | 5.41 | 5.72 | 5.89 | 5.94 | 5.97 |
| 3 | 26.7 | 5.83 | 6.5 | 6.4 | 6.6 | 6.68 | 6.71 |
| 2 | 33.6 | 6.54 | 6.81 | 7.19 | 7.42 | 7.52 | 7.54 |
| 1 | 42.4 | 7.35 | 7.59 | 8.18 | 8.43 | 8.46 | 8.46 |
| 1/0 | 53.5 | 8.25 | 8.53 | 9.17 | 9.45 | 9.5 | 9.5 |
| 2/0 | 37.4 | 9.27 | 9.55 | 10.3 | 10.6 | 10.7 | 10.7 |
| 3/0 | 85 | 10.4 | 10.7 | 11.6 | 11.9 | 12 | 12 |
| 4/0 | 107 | 11.7 | 13.2 | 13 | 13.4 | 13.4 | 13.45 |
| 250 | 127 | 12.7 | 14.5 | 14.2 | 14.6 | 14.6 | 14.6 |
| 300 | 152 | 13.9 | 15.6 | 15.5 | 16 | 16 | 16 |
| 350 | 177 | 15 | 16.7 | 16.8 | 17.3 | 17.3 | 17.3 |
| 400 | 203 | 16.1 | 17.8 | 17.9 | 18.5 | 18.5 | 18.5 |
| 450 | 228 | 17 | 18 | 19 | 19.6 | 19.6 | 19.6 |
| 500 | 253 | 18 | 19.7 | 20 | 20.7 | 20.7 | 20 |
| 550 | 279 | – | 20.7 | 21.1 | 21.7 | 21.7 | 21.7 |
| 600 | 304 | – | 21.5 | 22 | 22.7 | 22.7 | 22.7 |
| 650 | 329 | – | 22.3 | 22.9 | 23.6 | 23.6 | 23.6 |
| 700 | 355 | – | 23.1 | 23.7 | 24.5 | 24.5 | 24.5 |
| 750 | 380 | – | 23.8 | 24.6 | 25.3 | 25.4 | 25.43 |
| 800 | 405 | – | 25.4 | 25.4 | 26.2 | 26.2 | 26.2 |
| 900 | 456 | – | 26.9 | 269 | 27.8 | 27.8 | 27.8 |
| 1000 | 507 | – | – | 28.4 | 29.3 | 29.3 | 29.3 |
| Rated Circuit Voltage (Phase to Phase) | Conductor size | Nominal Insulation Thickness | AC Test voltage | DC Test Voltage | |
| A | B | ||||
| V | AWG/kcmil | mm | KV | KV | |
| 0-600 | 14-9 | 1.016 | 0.762 | 3.5 | 10.5 |
| 8-2 | 1.397 | 1.143 | 5.5 | 16.5 | |
| 1-4/0 | 2.032 | 1.397 | 7 | 21 | |
| 225-500 | 2.413 | 1.651 | 8 | 24 | |
| 525-1000 | 2.64 | 2.032 | 10 | 30 | |
| 1025-2000 | 3.175 | 2.54 | 11.5 | 34 | |
| 601-2000 | 14-9 | 1.397 | 1.016 | 5.5 | 16.5 |
| 8-2 | 1.778 | 1.397 | 7 | 21 | |
| 1-4/0 | 2.159 | 1.651 | 8 | 24 | |
| 225-500 | 2.667 | 1.778 | 9.5 | 28.5 | |
| 525-1000 | 3.048 | 2.159 | 11.5 | 34.5 | |
| 1025-2000 | 3.556 | 2.921 | 13.5 | 40 | |
| Jacket thickness for Single-conductor cables | Thickness of common overall jacket of multiple-conductor cable | ||||
| Calculated dia. of cable under jacket | Jacket Thickness | Calculated dia. of cable under jacket | Jacket Thickness | ||
| Min. | Nominal | Min. | Nominal | ||
| mm | mm | mm | mm | mm | mm |
| 6.35 or less | 0.33 | 0.38 | 10.8 or less | 1.02 | 1.14 |
| 6.38-10.8 | 0.635 | 0.76 | 10.82-17.78 | 1.27 | 1.52 |
| 10.82-17.78 | 1.02 | 1.14 | 17.81-38.10 | 1.78 | 2.03 |
| 17.81-38.1 | 1.4 | 1.65 | 38.13-63.50 | 2.41 | 2.79 |
| 38.13-63.5 | 2.03 | 2.41 | 63.53 and larger | 3.05 | 3.56 |
| 63.53 & later | 2.67 | 3.18 | — | — | — |
