U-1000 AR2V cables can be used in all low voltage power installations.Multiconductors cables are adapted to remote control and telecontrol installations.
Application:U-1000 AR2V cables can be used in all low voltage power installations.Multiconductors cables are adapted to remote control and telecontrol installations.
Voltage:0.6/1kV.

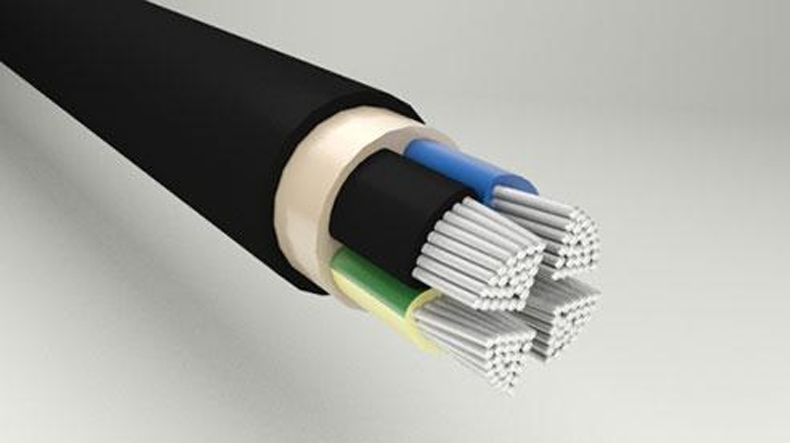

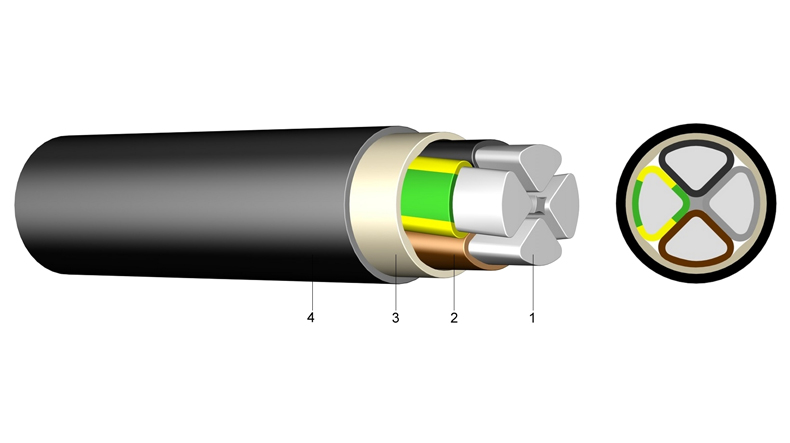

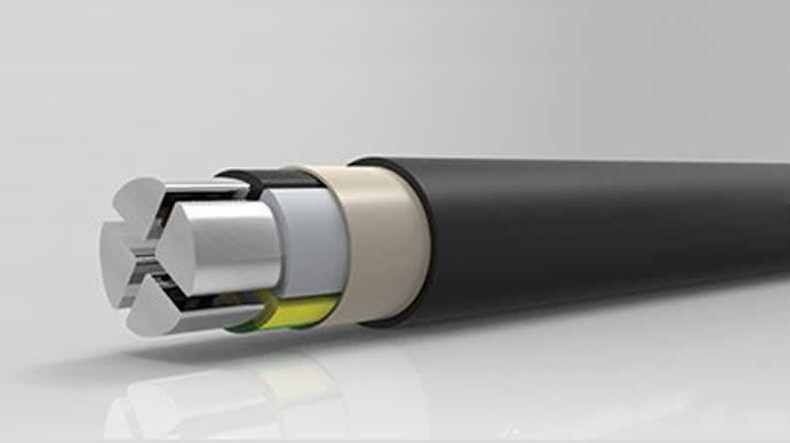

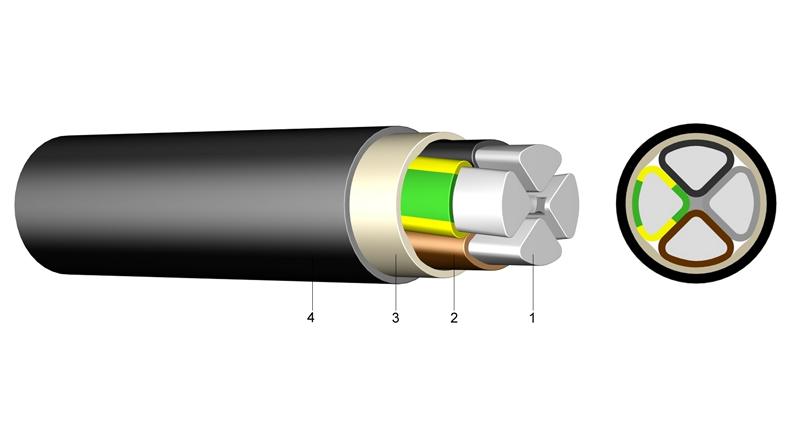

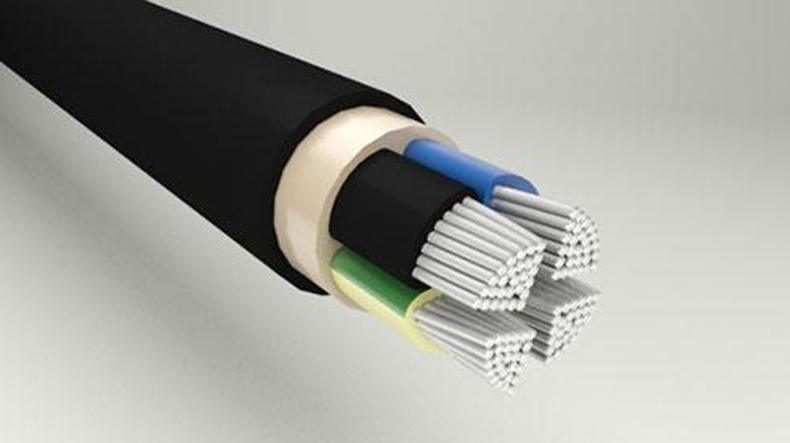

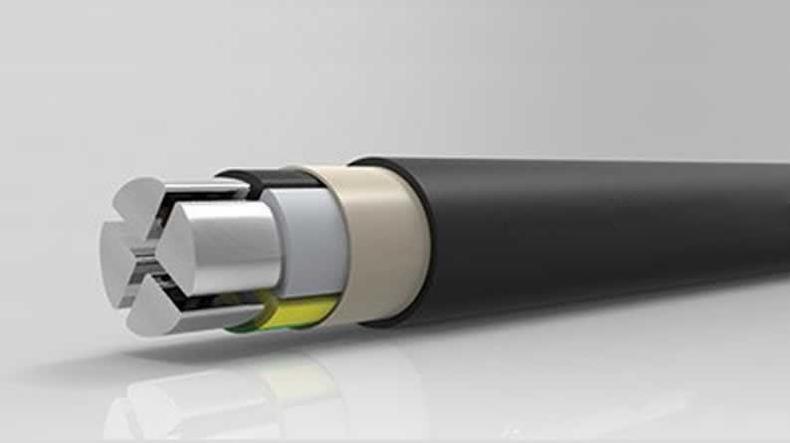

Construction characteristics:
Conductor:Aluminum;
Insulation:XLPE;
Outer Sheath:PVC;
Feature: Fire resistance;Weather resistance;
| Conductor flexibility | Stranded class 2 |
| Insulation | XLPE (chemical) |
| Sheath colour | Black |
| With smaller neutral conductor | No |
| Conductor cross-section | 240 mm² |
| Approximate weight | 2410 kg/km |
| Maximum outer diameter | 24.9 mm |
| Rated Voltage Uo/U (Um) | 0,6/1 kV |
| Permissible current rating when buried | 413 A |
| Mechanical resistance to impacts | Good |
| Max. conductor temperature in service | 85 °C |
| Packaging | Drum |
| Weather resistance | Very good |
| Bending factor when laying | 6 (xD) |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
