BS5467-Thermosetting insulated armoured cables.

Application LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.
Standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc
Construction Conductor: Cu/Al (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC/PE/LSHF

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Product introduction

BS5467-Thermosetting insulated armoured cables

Application LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

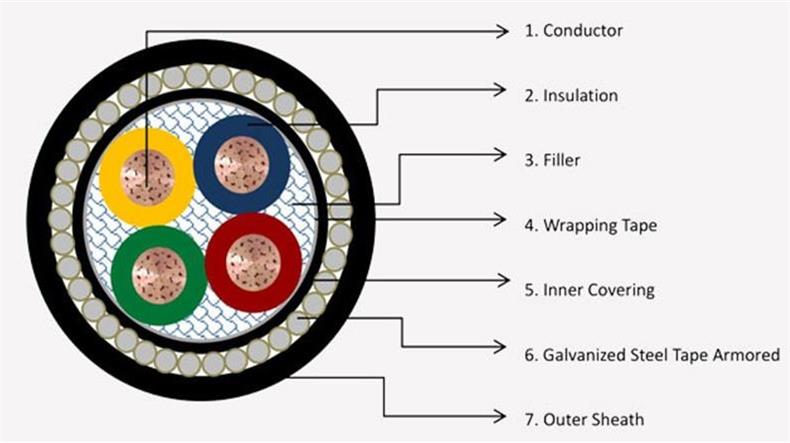

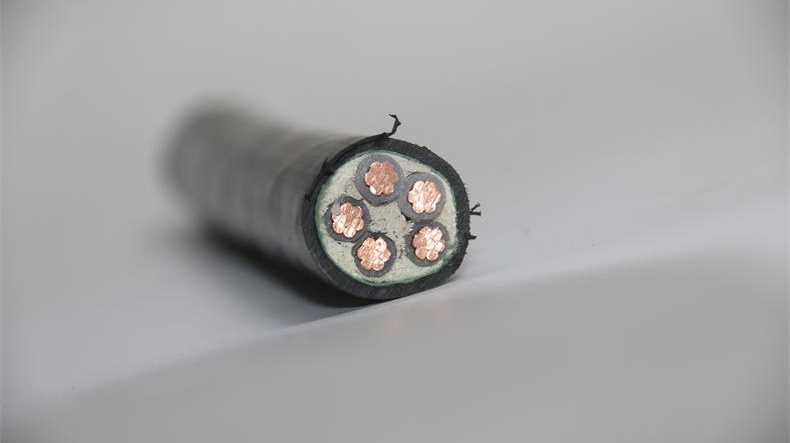

Construction Conductor: Cu/Al (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath : PVC/PE/LSHF

Features 1.Rated voltage: 0.6/1KV

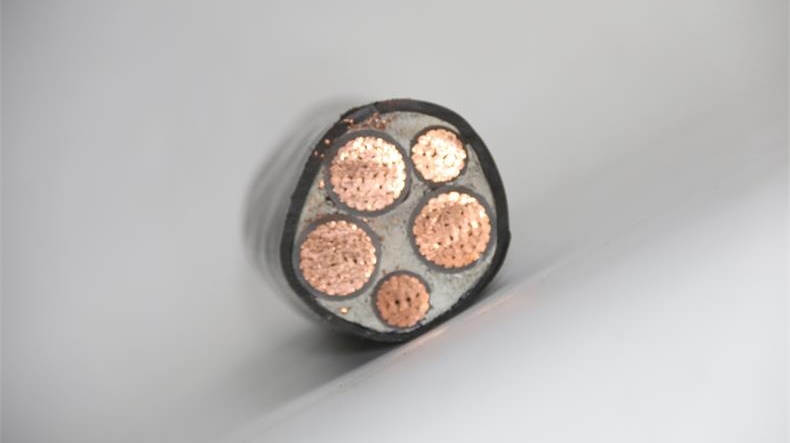

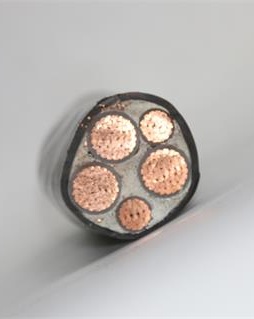

2.Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.

3.Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation

In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulatio

Product Data Sheet

Table1-Product Data Sheet-Single Core 600/1000V cables with circular stranded copper conductor

Cable Size	Insulation Thickness	Bedding thickness	AL Wire Armor	Sheath Thickness	Cable dia.
mm2	mm	mm	mm	mm	mm
50	1	0.8	0.9	1.5	17.5
70	1.1	0.8	1.25	1.5	20.2
95	1.1	0.8	1.25	1.6	22.3
120	1.2	0.8	1.25	1.6	24.2
150	1.4	1	1.6	1.7	27.4
185	1.6	1	1.6	1.8	30
240	1.7	1	1.6	1.8	32.8
300	1.8	1	1.6	1.9	35.6
400	2	1.2	2	2	40.5
500	2.2	1.2	2	2.1	44.2
630	2.4	1.2	2	2.2	48.8
800	2.6	1.4	2.5	2.4	55.4
1000	2.8	1.4	2.5	2.5	60.6

Table2-Product Data Sheet-2-Core 600/1000V cables with stranded copper conductors

Cable Size	Insulation Thickness	Bedding thickness	ST Wire Armor	Sheath Thickness	Approximate overall diameter
Cable Size	Insulation Thickness	Bedding thickness	ST Wire Armor	Sheath Thickness	Extruded bedding	Taped bedding
mm2	mm	mm	mm	mm	mm	mm
1.5a	0.6	0.8	0.9	1.3	12.1	–
2.5a	0.7	0.8	0.9	1.4	13.6	–
4a	0.7	0.8	0.9	1.4	14.7	–
6a	0.7	0.8	0.9	1.4	15.9	–
10a	0.7	0.8	0.9	1.5	18	–
16a	0.7	0.8	1.25	1.5	20.4	20.4
25b	0.9	0.8	1.25	1.6	20.4	20.4
25a	0.9	0.8	1.25	1.6	24.1	24.1
35b	0.9	1	1.6	1.7	23.3	22.9
35a	0.9	1	1.6	1.7	27.7	27.3
50b	1	1	1.6	1.8	25.8	25.4
70b	1.1	1	1.6	1.9	29	28.6
95b	1.1	1.2	2	2	33.1	32.3
120b	1.2	1.2	2	2.1	36.1	35.3
150b	1.4	1.2	2	2.2	39.3	38.5
185b	1.6	1.4	2.5	2.4	44.7	43.5
240b	1.7	1.4	2.5	2.5	49	47.8
300b	1.8	1.6	2.5	2.6	53.5	51.9
400b	2	1.6	2.5	2.8	59	57.4
a Circular or compacted circular stranded conductors(class2)
b Shaped stranded conductor(class2)

Table3-Product Data Sheet-3-Core 600/1000V cables with stranded copper conductors

Cable Size	Insulation Thickness	Bedding thickness	ST Wire Armor	Sheath Thickness	Approximate overall diameter
Cable Size	Insulation Thickness	Bedding thickness	ST Wire Armor	Sheath Thickness	Extruded bedding	Taped bedding
mm2	mm	mm	mm	mm	mm	mm
1.5a	0.6	0.8	0.9	1.3	12.6	–
2.5a	0.7	0.8	0.9	1.4	14.1	–
4a	0.7	0.8	0.9	1.4	15.3	–
6a	0.7	0.8	0.9	1.4	16.6	–
10a	0.7	0.8	1.25	1.5	19.5	–
16a	0.7	0.8	1.25	1.6	21.6	21.6
25b	0.9	1	1.6	1.7	23.6	23.2
25a	0.9	1	1.6	1.7	26.7	26.3
35b	0.9	1	1.6	1.8	25.7	25.3
35a	0.9	1	1.6	1.8	29.4	29
50b	1	1	1.6	1.8	28.5	28.1
70b	1.1	1	1.6	1.9	32.2	31.8
95b	1.1	1.2	2	2.1	37	36.2
120b	1.2	1.2	2	2.2	40.4	39.6
150b	1.4	1.4	2.5	2.3	45.5	44.3
185b	1.6	1.4	2.5	2.4	49.8	48.6
240b	1.7	1.4	2.5	2.6	55.1	53.9
300b	1.8	1.6	2.5	2.7	60.2	58.6
400b	2	1.6	2.5	2.9	66.6	65
a Circular or compacted circular stranded conductors(class2)
b Shaped stranded conductor(class2)

Table4-Product Data Sheet-4-Core 600/1000V cables with stranded copper conductors

Cable Size	Insulation Thickness	Bedding thickness	ST Wire Armor	Sheath Thickness	Approximate overall diameter
Cable Size	Insulation Thickness	Bedding thickness	ST Wire Armor	Sheath Thickness	Extruded bedding	Taped bedding
mm2	mm	mm	mm	mm	mm	mm
1.5a	0.6	0.8	0.9	1.3	13.3	–
2.5a	0.7	0.8	0.9	1.4	15	–
4a	0.7	0.8	0.9	1.4	16.4	–
6a	0.7	0.8	1.25	1.5	18.7	–
10a	0.7	0.8	1.25	1.5	21.1	–
16a	0.7	0.8	1.25	1.6	23.4	23.4
25b	0.9	1	1.6	1.7	26.1	25.7
25a	0.9	1	1.6	1.7	28.9	28.5
35b	0.9	1	1.6	1.8	28.6	28.2
35a	0.9	1	1.6	1.8	31.9	31.5
50b	1	1	1.6	1.9	32	31.6
70b	1.1	1.2	2	2.1	37.7	36.9
95b	1.1	1.2	2	2.2	41.7	40.9
120b	1.2	1.4	2.5	2.3	47.1	45.9
150b	1.4	1.4	2.5	2.4	51.4	50.2
185b	1.6	1.4	2.5	2.6	56.6	5.4
240b	1.7	1.6	2.5	2.7	63	61.4
300b	1.8	1.6	2.5	2.9	68.8	67.2
400b	2	1.8	3.15	3.2	78.1	76.1
a Circular or compacted circular stranded conductors(class2)
b Shaped stranded conductor(class2)

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
