A battery cable is a thick, heavy-duty electrical conductor used to connect a battery to other components in a vehicle or other device.
Description: A battery cable is a thick, heavy-duty electrical conductor used to connect a battery to other components in a vehicle or other device.
Voltage: 600V;

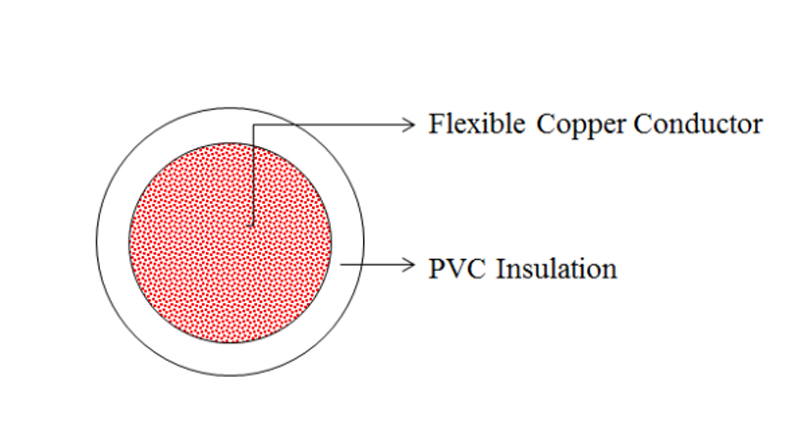

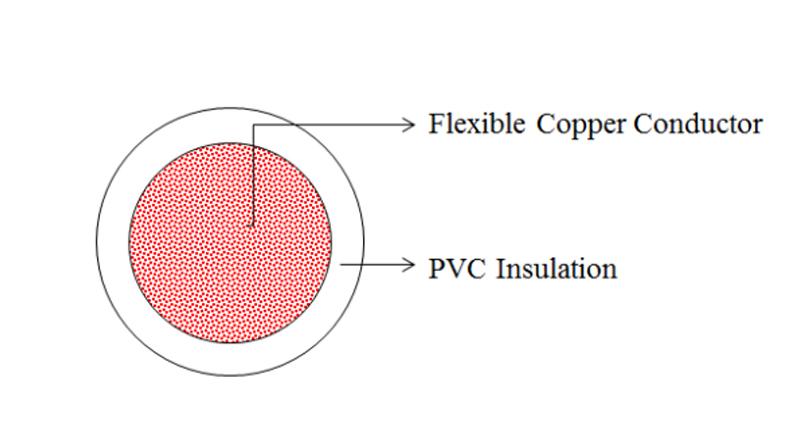

Construction: Flexible copper/PVC;
Application: Battery cables are primarily used to conduct high electrical currents between a battery and various components in a system. Their applications span across numerous industries and devices.
| NO. OF CORES | NOMINAL CROSS
SECTIONAL AREA mm2 |
NOMINAL THICKNESS
OF INSULATION mm |
NOMINAL THICKNESS
OF SHEATH mm |
NOMINAL OVERALL
DIAMETER mm |
NOMINAL
WEIGHT kg/km |
| 2 | 2.5 | 1 | 1 | 4.4 x 10.8 | 90 |
| 2 | 4 | 1 | 1 | 6.5 x 14.5 | 120 |
| 2 | 6 | 1 | 1 | 7.1 x 15.5 | 190 |
| 2 | 10 | 1 | 1.2 | 7.9 x 17.6 | 294 |
| 2 | 16 | 1 | 1.2 | 10 x 21.5 | 420 |
| 2 | 25 | 1.1 | 1.3 | 11.2 x 24.3 | 627 |
| 2 | 35 | 1.1 | 1.3 | 12.4 x 25.9 | 824 |
| 2 | 50 | 1.2 | 1.4 | 14.5 x 30.5 | 1132 |
| 2 | 70 | 1.6 | 1.6 | 17.2 x 36.5 | 1600 |
| 2 | 95 | 1.6 | 1 | 18.4 x 38.6 | 2080 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
