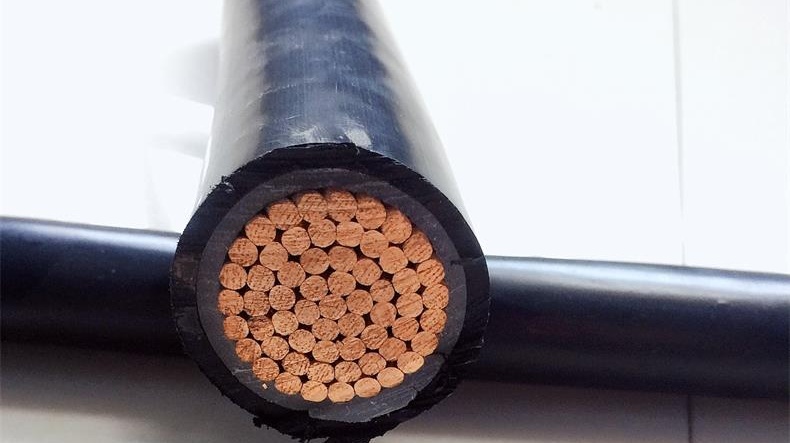

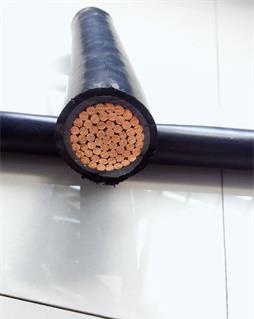

0.6-1KV XLPE Insulated Power Cable

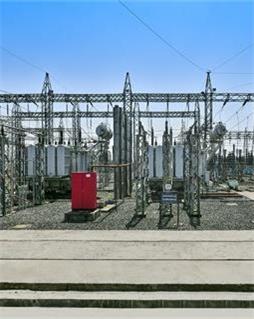

LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Application LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.
Standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

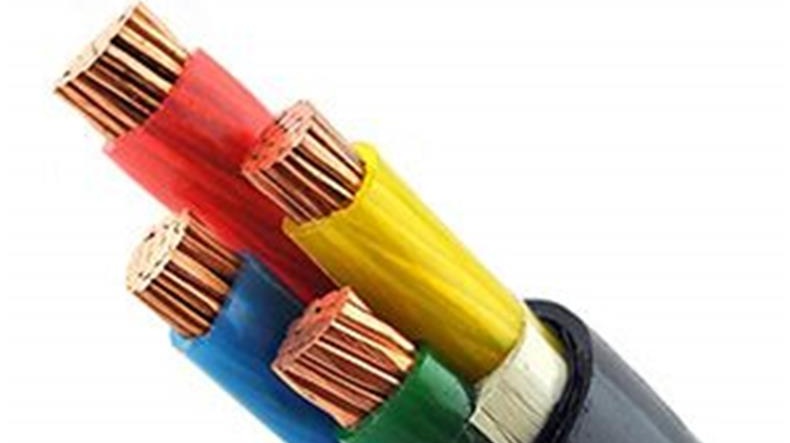

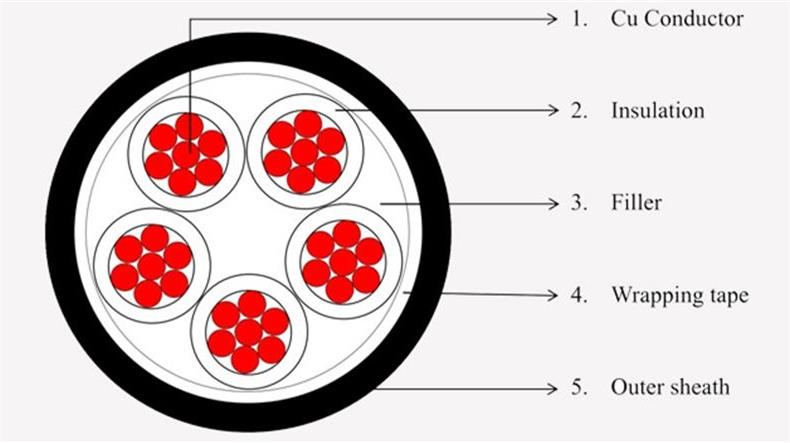

Construction Conductor: Cu/Al (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC/PE/LSHF

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.

Standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc

Construction Conductor: Cu/Al (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath : PVC/PE/LSHF

Product Data Sheet

Table1-Single(1) core, PVC Insulated Power Cable

Cable Size	Cable dia.			Cable weight
	None-armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	None-armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	6	10.8	11.6	52	43	155	145	167	157
2.5	6.5	11.3	12.1	66	50	175	159	189	173
4	7.4	12.2	13	91	66	211	187	225	200
6	8	12.8	13.6	115	78	243	206	258	221
10	8.9	13.7	14.5	160	99	300	238	316	255
16	9.9	14.7	15.5	224	126	377	279	395	297
25	11.3	16.1	16.9	322	171	493	341	512	361
35	12.3	17.1	18.4	418	209	601	392	647	438
50	13.9	18.7	20	567	273	771	477	822	528
70	15.6	20.4	21.7	760	347	985	573	1041	629
95	18	22.6	24.6	1031	463	1277	708	1387	818
120	19.4	24	26	1267	548	1530	811	1650	931
150	21.4	25.8	27.8	1557	671	1832	947	1960	1074
185	23.8	28	30.2	1938	830	2229	1121	2381	1273
240	26.8	31	33	2515	1061	2840	1385	2998	1544
300	29.6	33.8	36.8	3130	1305	3486	1662	3760	1935
400	33.1	37.7	40.7	3988	1637	4423	2072	4734	2383
500	36.7	41.3	44.3	5030	2035	5509	2514	5849	2854
630	40.5	45.1	49.1	6385	2517	6912	3044	7434	3566

Table2- Two(2) core, PVC Insulated Power Cable

Size	Cable dia.			Cable weight
	None- armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	None- armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	10.5	13.3	14.9	128	109	255	236	355	336
2.5	11.4	14.2	15.8	160	128	297	266	404	372
4	13.2	16	18.5	219	170	378	329	616	567
6	14.4	17.2	19.7	275	201	448	374	709	636
10	16.2	19	21.5	378	255	573	450	863	740
16	18.3	21.1	23.6	523	327	743	546	1070	873
25	21	23.8	27	744	439	996	691	1526	1221
35	23	25.8	29	955	533	1231	809	1814	1392
50	21.7	24.5	27.9	1203	599	1463	859	2018	1414
70	24.5	27.3	31.7	1618	773	1911	1065	2732	1887
95	27.9	32.5	35.5	2161	1014	2832	1685	3485	2337
120	30.1	34.7	37.7	2660	1207	3381	1928	4080	2627
150	34.2	39	43	3321	1510	4153	2342	5281	3470
185	36.8	41.8	45.8	4055	1816	4972	2734	6181	3942
240	41.2	46.2	50.2	5219	2313	6239	3333	7589	4683
300	45.3	50.9	54.9	6459	2817	7657	4015	9143	5501

Table3- Three (3) core, PVC Insulated Power Cable

Size	Cable dia.			Cable weight
	None- armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	None- armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	11	13.8	15.4	154	125	286	258	391	363
2.5	12	14.8	16.4	197	150	341	294	452	405
4	14	16.8	19.3	276	202	444	371	698	624
6	15.2	18	20.5	351	241	534	423	810	699
10	17.2	20	22.5	495	310	701	517	1015	831
16	19.4	22.2	25.4	696	401	928	634	1419	1124
25	22.4	25.2	28.4	1008	551	1276	819	1830	1373
35	24.6	27.4	30.8	1309	676	1604	971	2240	1607
50	25.4	28.4	32.6	1746	841	2063	1158	2916	2010
70	29	32.2	36.4	2373	1104	2752	1483	3714	2445
95	32.9	37.5	40.5	3161	1440	3947	2226	4705	2984
120	36.1	40.7	44.7	3920	1740	4779	2600	5955	3776
150	40.2	45.4	49.4	4865	2149	5889	3173	7202	4485
185	44.7	49.7	53.7	6009	2651	7117	3759	8567	5209
240	49.9	55.3	59.3	7714	3355	9006	4647	10658	6299
300	55.5	60.9	64.9	9612	4149	11042	5579	12856	7393

Table4- Four (4) core, PVC Insulated Power Cable

Size	Cable dia.			Cable weight
	None- armored	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	None- armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	11.4	14.2	15.8	176	139	313	276	420	383
2.5	12.3	15.1	17.6	224	164	372	312	596	536
4	14.5	17.3	19.8	325	228	499	402	759	663
6	15.7	18.5	21	417	272	606	461	889	744
1.5	11.8	14.6	16.2	184	146	326	288	438	401
2.5	12.9	15.7	18.2	238	176	394	331	634	571
4	15.2	18	20.5	340	242	523	425	799	701
6	16.6	19.4	21.9	439	291	638	490	936	788
10	18.7	21.5	24.7	623	376	847	601	1309	1063
16	21.3	24.1	27.3	887	494	1142	749	1670	1277
25	24.6	27.4	30.8	1293	683	1587	978	2224	1615
35	27	30	33.4	1686	842	2023	1179	2714	1870
50	27.6	31	35.2	2260	1053	2636	1429	3580	2372
70	31.5	36.1	39.1	3077	1386	3831	2140	4559	2868
95	36.6	41.4	45.4	4139	1844	5029	2734	6239	3944
120	39.5	44.7	48.7	5112	2206	6118	3212	7442	4536
150	44.1	49.1	53.1	6364	2742	7458	3836	8917	5295
185	48.9	54.3	58.3	7849	3372	9116	4639	10704	6226
240	55.1	60.5	64.5	10104	4293	11524	5712	13305	7493
300	60.8	66.2	71.7	12572	5289	14133	6849	16886	9603

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
