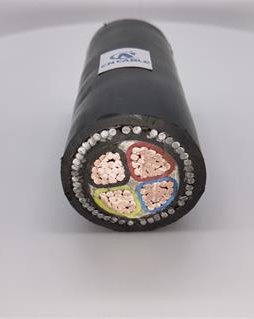

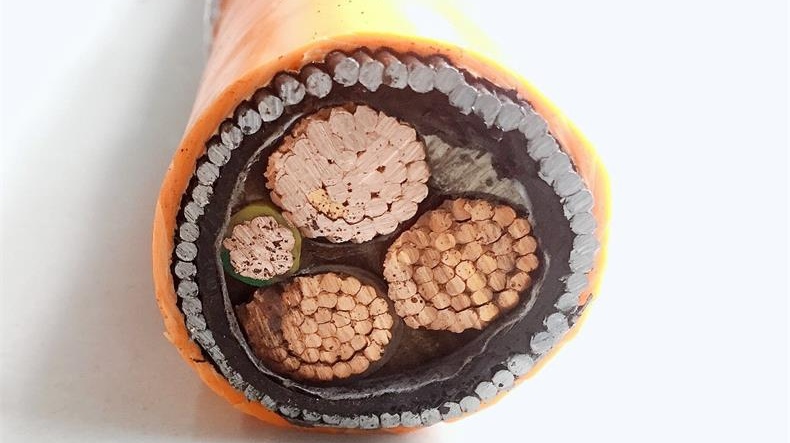

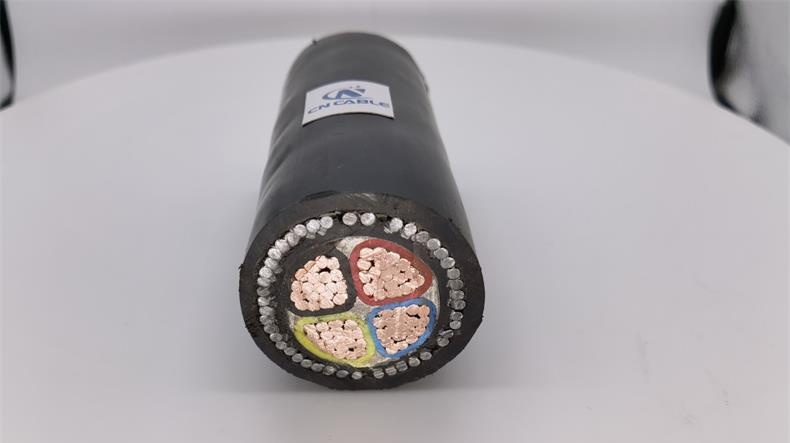

0.6-1KV SWA Armored Power Cable

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

ApplicationThe cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.
StandardIEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

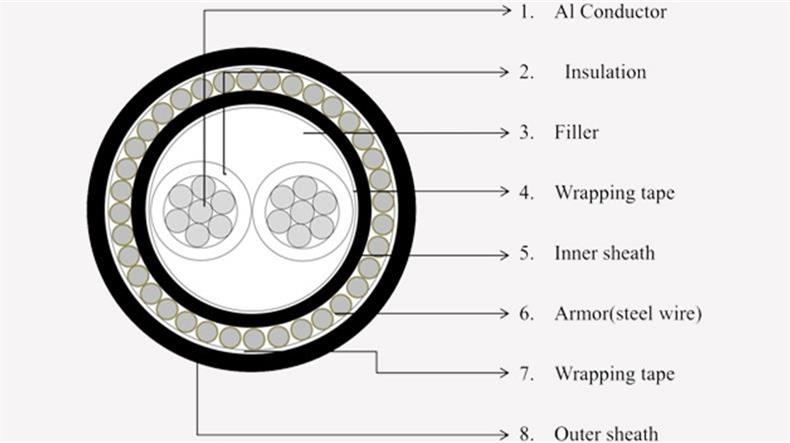

Construction Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Standard IEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

Construction Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Product Data Sheet

0.61KV SWA ARMORED POWER CABLE
Size	Cable dia.		Cable weight
	None-	Steel wire armored	None-armored		Steel wire armored
	armored	Steel wire armored	CU	AL	CU	AL
mm2	mm		kg/km
1.5	10.5	14.9	128	109	355	336
2.5	11.4	15.8	160	128	404	372
4	13.2	18.5	219	170	616	567
6	14.4	19.7	275	201	709	636
10	16.2	21.5	378	255	863	740
16	18.3	23.6	523	327	1070	873
25	21	27	744	439	1526	1221
35	23	29	955	533	1814	1392
50	21.7	27.9	1203	599	2018	1414
70	24.5	31.7	1618	773	2732	1887
95	27.9	35.5	2161	1014	3485	2337
120	30.1	37.7	2660	1207	4080	2627
150	34.2	43	3321	1510	5281	3470
185	36.8	45.8	4055	1816	6181	3942
240	41.2	50.2	5219	2313	7589	4683
300	45.3	54.9	6459	2817	9143	5501

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
