0.6-1KV STA Armored Power Cable

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

ApplicationThe cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.
StandardIEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658
Construction Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Standard IEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

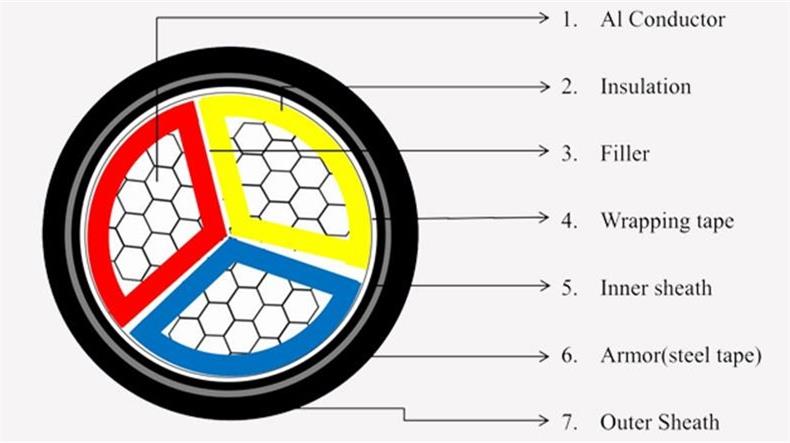

Construction Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Product Data Sheet

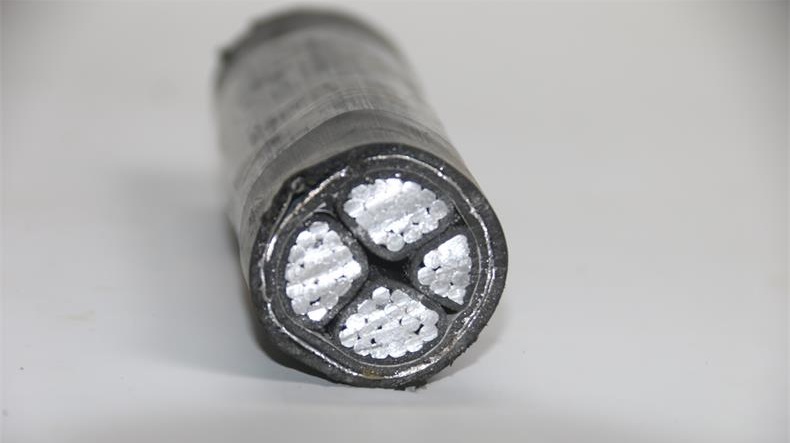

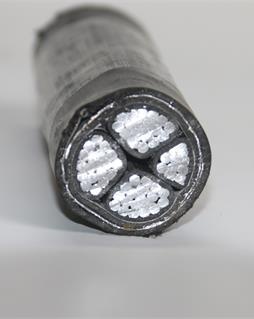

0.6/1KV STA ARMORED POWER CABLE
Size	Cable dia.			Cable weight
	None-	Steel tape armored	Steel wire armored	None-armored		Steel tape armored		Steel wire armored
	armored	Steel tape armored	Steel wire armored	CU	AL	CU	AL	CU	AL
mm2	mm			kg/km
1.5	11	13.8	15.4	154	125	286	258	391	363
2.5	12	14.8	16.4	197	150	341	294	452	405
4	14	16.8	19.3	276	202	444	371	698	624
6	15.2	18	20.5	351	241	534	423	810	699
10	17.2	20	22.5	495	310	701	517	1015	831
16	19.4	22.2	25.4	696	401	928	634	1419	1124
25	22.4	25.2	28.4	1008	551	1276	819	1830	1373
35	24.6	27.4	30.8	1309	676	1604	971	2240	1607
50	25.4	28.4	32.6	1746	841	2063	1158	2916	2010
70	29	32.2	36.4	2373	1104	2752	1483	3714	2445
95	32.9	37.5	40.5	3161	1440	3947	2226	4705	2984
120	36.1	40.7	44.7	3920	1740	4779	2600	5955	3776
150	40.2	45.4	49.4	4865	2149	5889	3173	7202	4485
185	44.7	49.7	53.7	6009	2651	7117	3759	8567	5209
240	49.9	55.3	59.3	7714	3355	9006	4647	10658	6299
300	55.5	60.9	64.9	9612	4149	11042	5579	12856	7393

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
