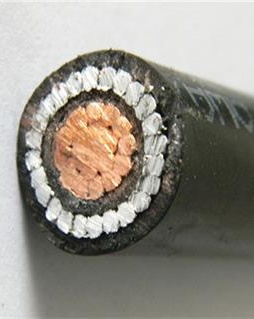

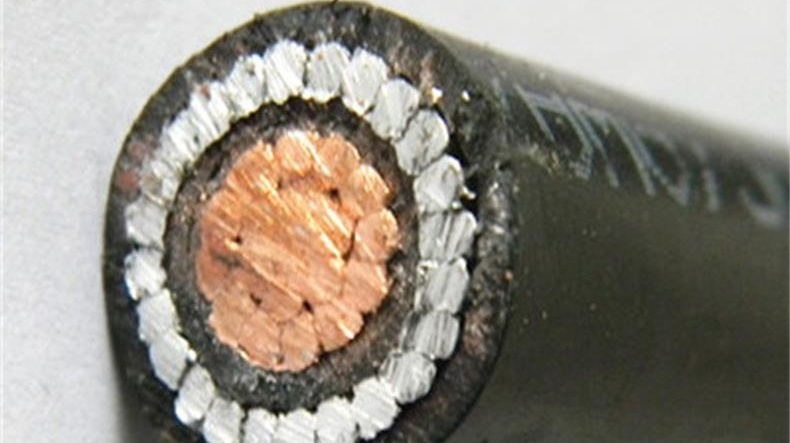

0.6-1KV AWA Armored Power Cable

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

ApplicationThe cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.
StandardIEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

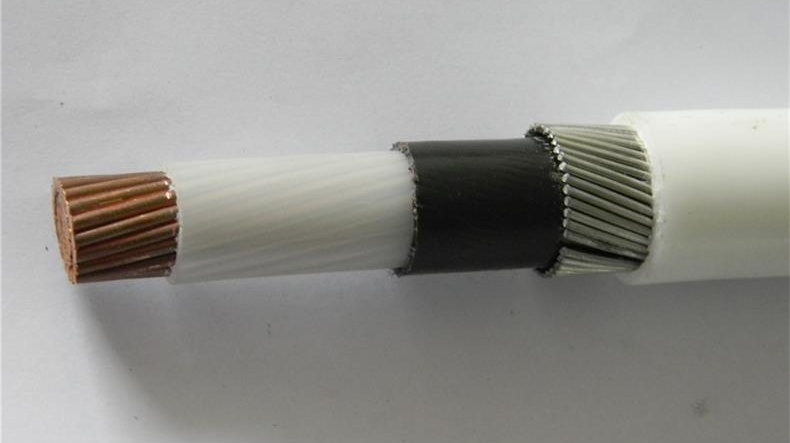

Construction Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Standard IEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

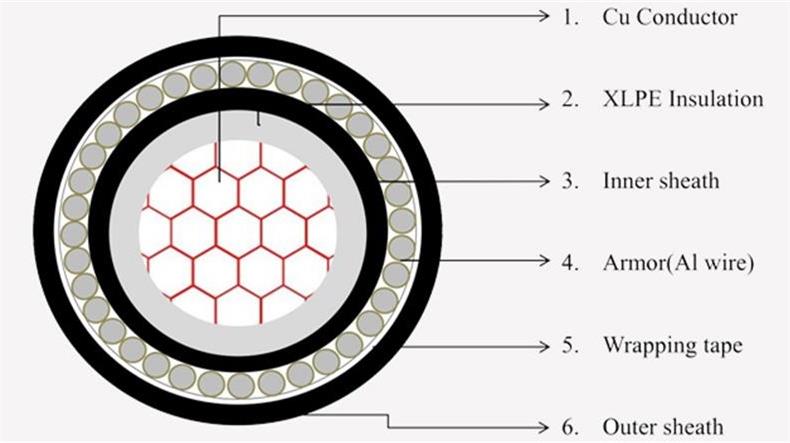

Construction Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Product Data Sheet

0.6/1KV AWA ARMORED POWER CABLE
Cable Size	Cable dia.		Cable weight
	None-armored	Aluminum wire armored	None-armored		Aluminum wire armored
	None-armored	Aluminum wire armored	CU	AL	CU	AL
mm2	mm		kg/km
1.5	6	11.6	52	43	167	157
2.5	6.5	12.1	66	50	189	173
4	7.4	13	91	66	225	200
6	8	13.6	115	78	258	221
10	8.9	14.5	160	99	316	255
16	9.9	15.5	224	126	395	297
25	11.3	16.9	322	171	512	361
35	12.3	18.4	418	209	647	438
50	13.9	20	567	273	822	528
70	15.6	21.7	760	347	1041	629
95	18	24.6	1031	463	1387	818
120	19.4	26	1267	548	1650	931
150	21.4	27.8	1557	671	1960	1074
185	23.8	30.2	1938	830	2381	1273
240	26.8	33	2515	1061	2998	1544
300	29.6	36.8	3130	1305	3760	1935
400	33.1	40.7	3988	1637	4734	2383
500	36.7	44.3	5030	2035	5849	2854
630	40.5	49.1	6385	2517	7434	3566

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
