0.6-1KV ATA Armored Power Cable

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

ApplicationThe cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.
StandardIEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

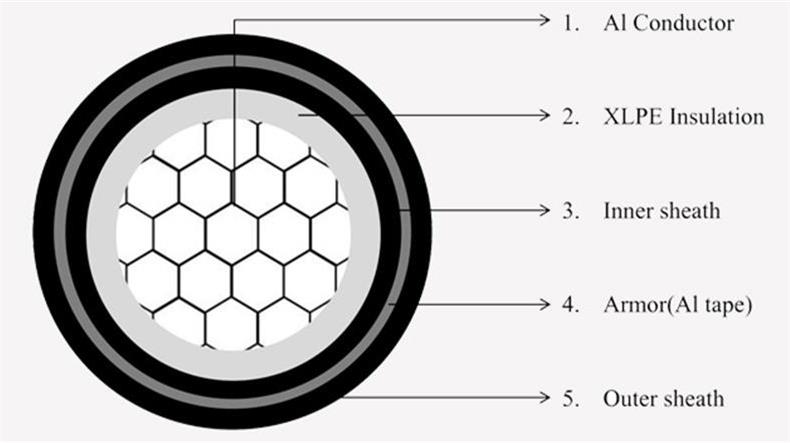

Construction Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Request a Quote Leave Message

Description Product Data Sheet Packaging & Delivery FAQ

Application

The cable is applied to fixed installation for rated voltage 0.6/1kv of power transmission and distribution line.

Standard IEC60502，SANS 1507，BS 5467，AS-NZS 5000.1，NF C 32-322， NF C33-210，CSA C22.2, ICEA S-95-658

Construction Copper or Aluminum Conductor/PVC or XLPE Insulation/Armored layer/Outer Sheath Power Cables

Product Data Sheet

0.6/1KV ATA ARMORED POWER CABLE
Cable Size	Cable dia.		Cable weight
	None-armored	Aluminum tape armored	None-armored		Aluminum tape armored
	None-armored	Aluminum tape armored	CU	AL	CU	AL
mm2	mm		kg/km
1.5	6	10.8	52	43	155	145
2.5	6.5	11.3	66	50	175	159
4	7.4	12.2	91	66	211	187
6	8	12.8	115	78	243	206
10	8.9	13.7	160	99	300	238
16	9.9	14.7	224	126	377	279
25	11.3	16.1	322	171	493	341
35	12.3	17.1	418	209	601	392
50	13.9	18.7	567	273	771	477
70	15.6	20.4	760	347	985	573
95	18	22.6	1031	463	1277	708
120	19.4	24	1267	548	1530	811
150	21.4	25.8	1557	671	1832	947
185	23.8	28	1938	830	2229	1121
240	26.8	31	2515	1061	2840	1385
300	29.6	33.8	3130	1305	3486	1662
400	33.1	37.7	3988	1637	4423	2072
500	36.7	41.3	5030	2035	5509	2514
630	40.5	45.1	6385	2517	6912	3044

Packaging & Delivery

Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.

FAQ

What information should we provide to get a quotation?

Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.

How long time can we get your quotation?

Usually we will quote to you within 24 hours after get your detailed inquiry information

How can I know have you ever exported to our country/area? Are you familiar with our market?

We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.

What trade term you offer?

Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.

What`s your lead time for the order?

According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
