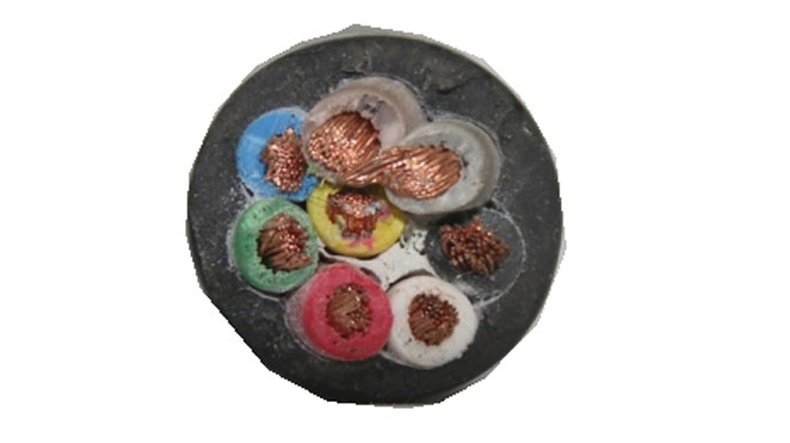

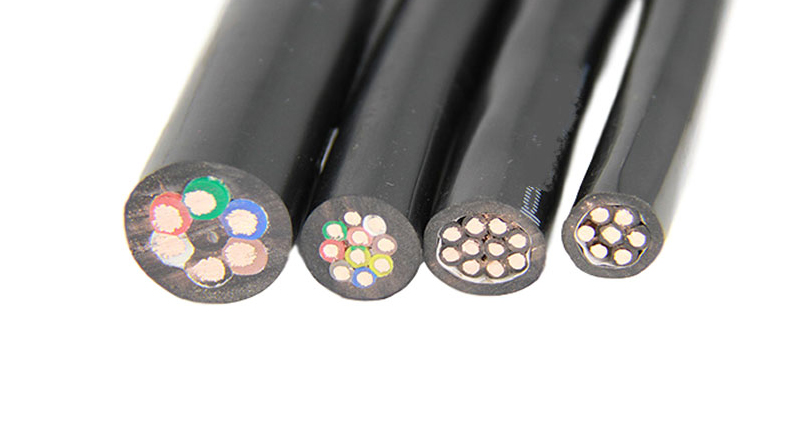

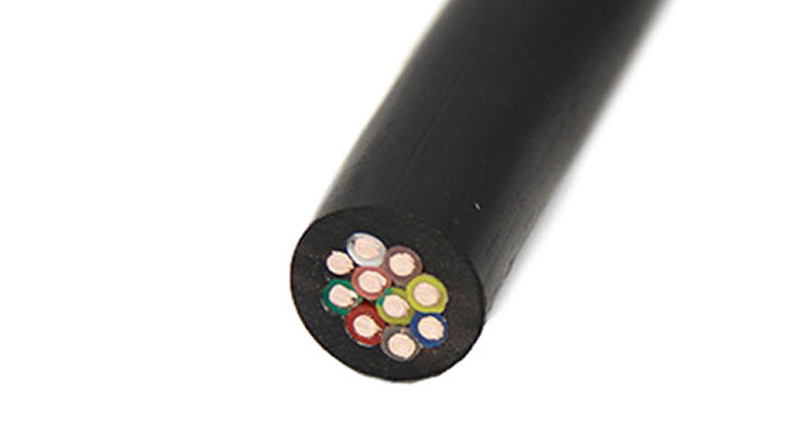

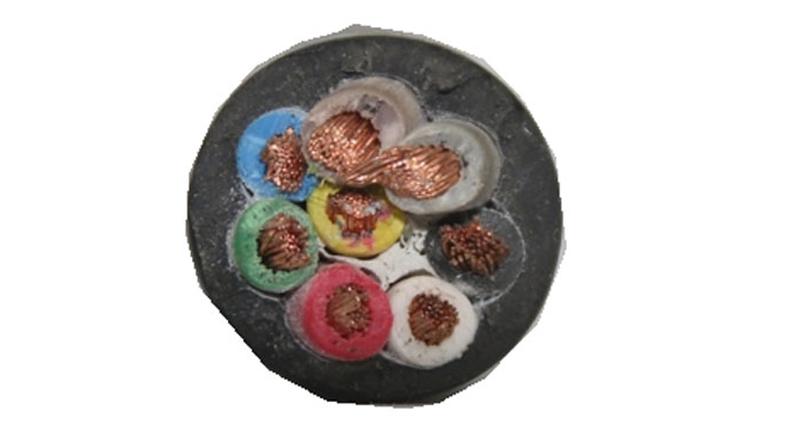

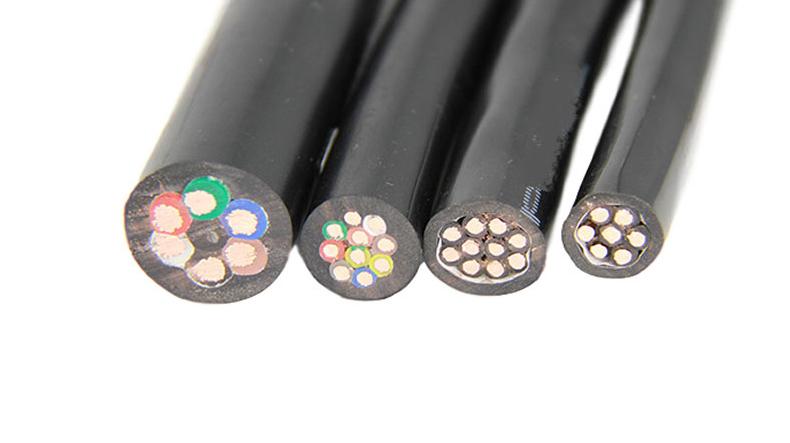

LiYY control cable is a type of flexible PVC-insulated and PVC-sheathed multi-conductor cable used primarily in control, signal, and data transmission applications.
Description: LiYY control cable is a type of flexible PVC-insulated and PVC-sheathed multi-conductor cable used primarily in control, signal, and data transmission applications.
Voltage: 250/250V;
Structure: Copper/PVC/PVC;
Application: LiYY control cable can be used for signal transmission between electronic devices, in computer systems or process control units.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER mm | NOMINAL WEIGHT kg/km |
| 2 | 0.14 | 3.2 | 12 |
| 2 | 0.25 | 3.6 | 17 |
| 2 | 0.34 | 4.2 | 19 |
| 2 | 0.5 | 5.6 | 23 |
| 2 | 0.75 | 5.9 | 48 |
| 2 | 1 | 6 | 61 |
| 3 | 0.14 | 3.4 | 17 |
| 3 | 0.25 | 3.8 | 21 |
| 3 | 0.34 | 4.5 | 19 |
| 3 | 0.5 | 5.9 | 31 |
| 3 | 0.75 | 6 | 57 |
| 4 | 0.14 | 3.7 | 19 |
| 4 | 0.25 | 4.1 | 27 |
| 4 | 0.34 | 4.9 | 32 |
| 4 | 0.5 | 6.4 | 39 |
| 4 | 0.75 | 6.5 | 69 |
| 4 | 1 | 6.5 | 85 |
| 5 | 0.14 | 4 | 22 |
| 5 | 0.25 | 4.5 | 32 |
| 5 | 0.34 | 5.6 | 38 |
| 5 | 0.5 | 7 | 47 |
| 7 | 0.14 | 4.7 | 27 |
| 7 | 0.25 | 5.4 | 42 |
| 7 | 0.34 | 6.6 | 50 |
| 7 | 0.5 | 7.6 | 65 |
| 8 | 0.14 | 5.3 | 30 |
| 8 | 0.25 | 6.1 | 51 |
| 8 | 0.34 | 7.2 | 61 |
| 8 | 0.5 | 7.9 | 75 |
| 12 | 0.14 | 5.8 | 48 |
| 12 | 0.25 | 6.6 | 71 |
| 12 | 0.34 | 7.9 | 85 |
| 12 | 0.5 | 9.7 | 121 |
| 12 | 0.75 | 10.1 | 179 |
| 14 | 0.14 | 6.1 | 54 |
| 18 | 0.14 | 6.7 | 72 |
| 21 | 0.14 | 7.5 | 77 |
| 21 | 0.5 | 12.6 | 184 |
| 24 | 0.14 | 7.8 | 94 |
| 24 | 0.5 | 13.6 | 221 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
