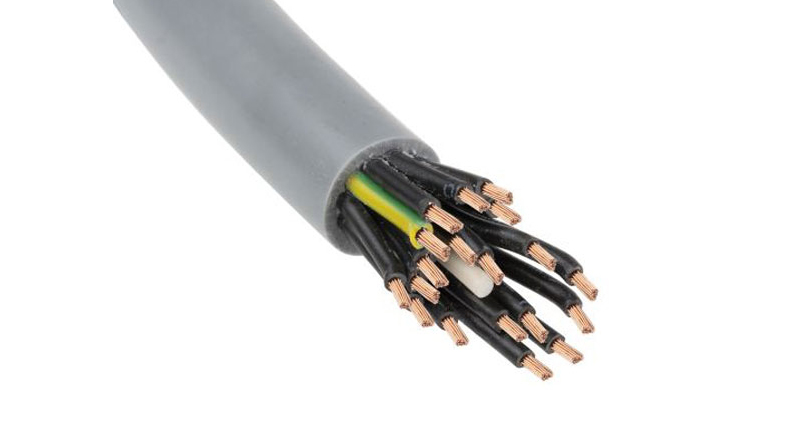

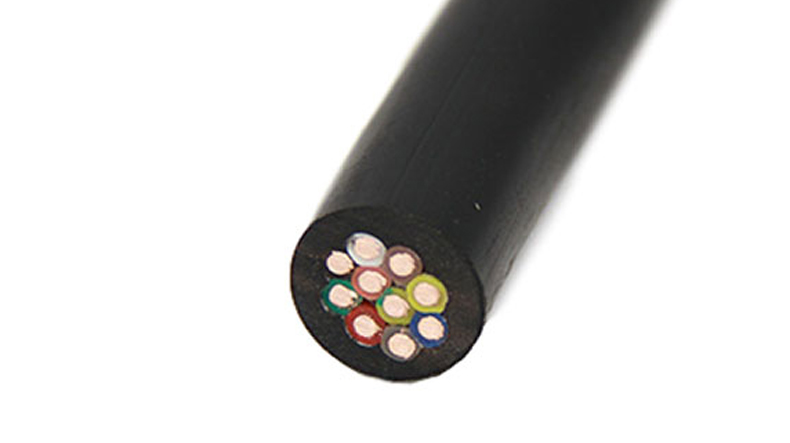

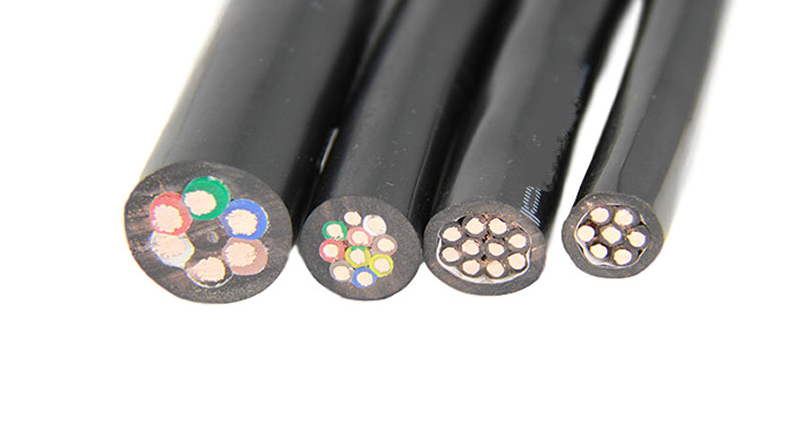

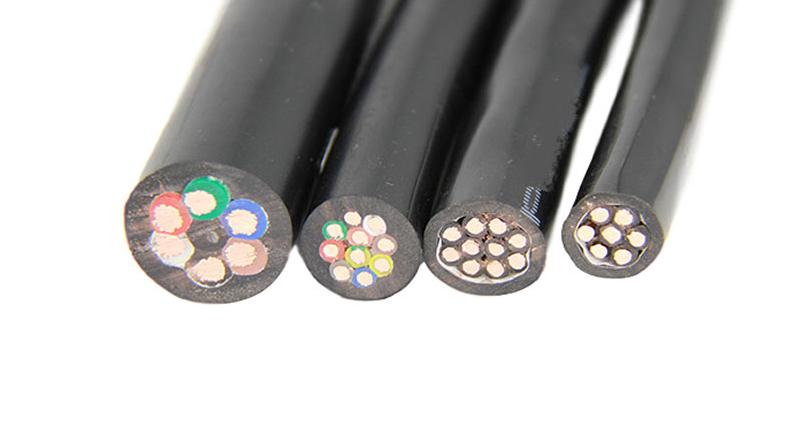

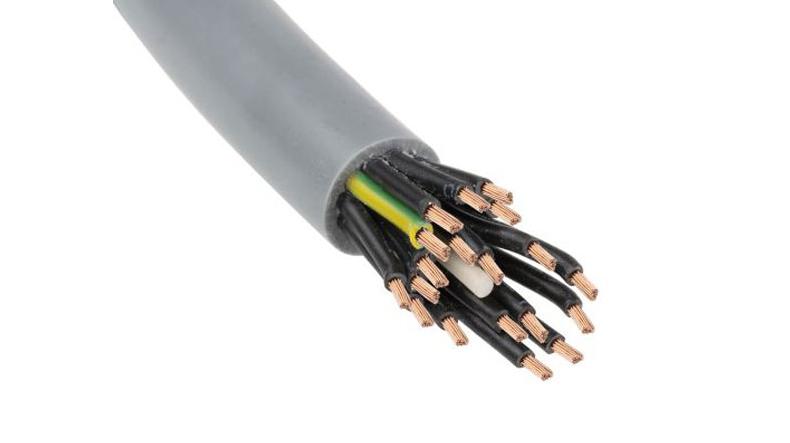

LiYCY control cable is a type of shielded multi-conductor cable commonly used in industrial applications where protection against electromagnetic interference (EMI) is necessary.
Description: LiYCY multi core control cable is a type of shielded multi-conductor cable commonly used in industrial applications where protection against electromagnetic interference (EMI) is necessary.
Voltage: 250/250 V;

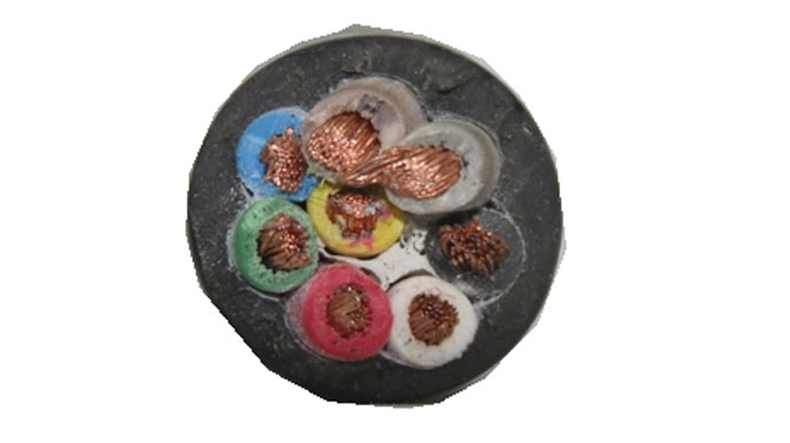

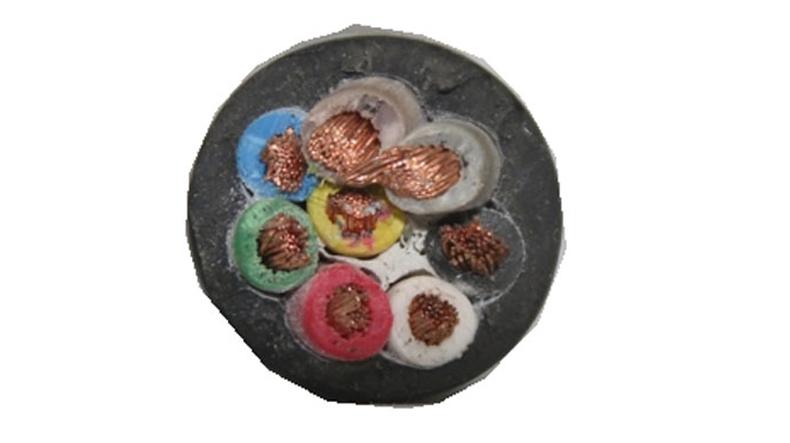

Structures: Conductor: Copper/Insulation:PVC/Screen:TCWB/Outer Sheath:PVC;
Application: LiYCY control cable can be used for signal transmission between electronic devices, in computer systems or process control units with increased electromagnetic compatibility requirements.
| NO. OF CORES | NOMINAL CROSS SECTIONAL AREA mm2 | NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
| 6 | 0.14 | 4.9 | 52 |
| 6 | 0.25 | 6.3 | 54 |
| 6 | 0.34 | 6.6 | 62 |
| 6 | 0.5 | 6.9 | 76 |
| 6 | 0.75 | 9.1 | 128 |
| 7 | 0.14 | 5 | 54 |
| 7 | 0.25 | 6.3 | 61 |
| 7 | 0.34 | 6.7 | 70 |
| 7 | 0.5 | 7 | 84 |
| 7 | 0.75 | 9.7 | 145 |
| 7 | 1 | 9.2 | 158 |
| 7 | 1.5 | 10.8 | 192 |
| 8 | 0.14 | 6 | 58 |
| 8 | 0.25 | 6.4 | 66 |
| 8 | 0.34 | 7 | 76 |
| 8 | 0.5 | 7.3 | 107 |
| 8 | 0.75 | 9.8 | 151 |
| 8 | 1 | 10.5 | 179 |
| 10 | 0.25 | 6.7 | 80 |
| 10 | 0.5 | 8.8 | 134 |
| 10 | 0.75 | 11.7 | 182 |
| 10 | 1 | 11.5 | 215 |
| 12 | 0.14 | 6.7 | 81 |
| 12 | 0.25 | 4.6 | 28 |
| 12 | 0.34 | 9 | 128 |
| 12 | 0.5 | 9.5 | 155 |
| 12 | 0.75 | 12 | 216 |
| 12 | 1 | 12 | 254 |
| 12 | 1.5 | 14 | 315 |
| 14 | 0.25 | 8 | 120 |
| 14 | 0.34 | 9.5 | 141 |
| 15 | 0.25 | 9.4 | 127 |
| 16 | 0.14 | 7.3 | 97 |
| 16 | 0.25 | 9.6 | 135 |
| 16 | 0.5 | 10.7 | 186 |
| 18 | 0.25 | 10 | 150 |
| 18 | 0.75 | 13.9 | 311 |
| 18 | 1.5 | 15.5 | 450 |
| 20 | 0.14 | 7.8 | 116 |
| 20 | 0.25 | 10.2 | 157 |
| 20 | 0.5 | 11.6 | 239 |
| 21 | 0.25 | 10.5 | 163 |
| 25 | 0.5 | 13.4 | 313 |
| 25 | 0.75 | 16.6 | 404 |
| 30 | 0.34 | 13.3 | 282 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
