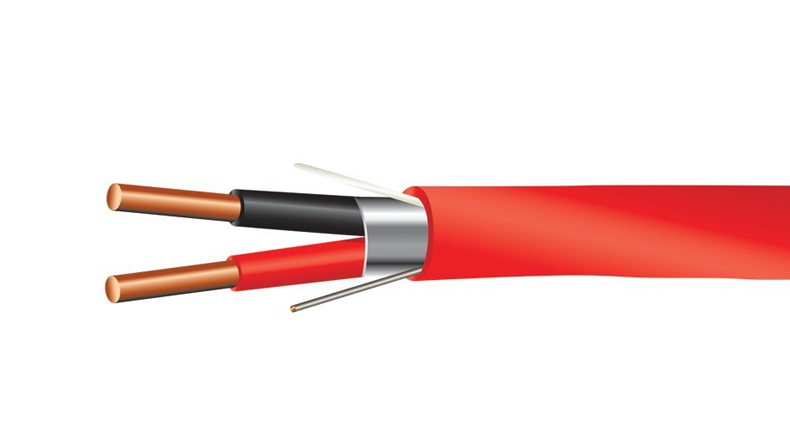

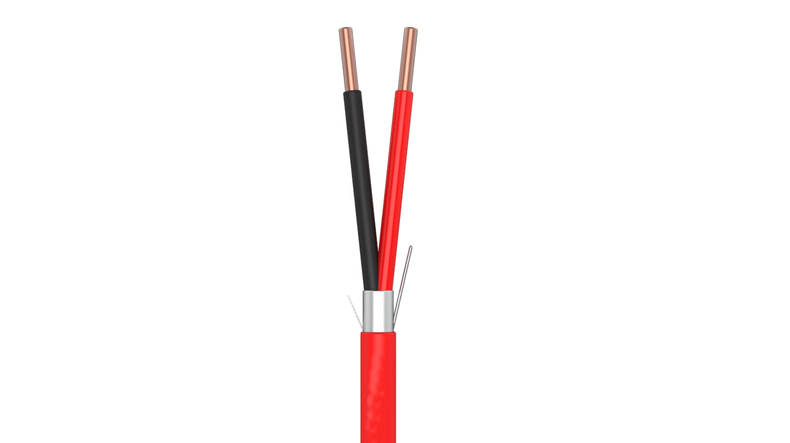

Fire alarm cable is a specialized type of cable designed to transmit signals within a fire alarm system. It’s crucial for the reliable and efficient operation of the entire system, ensuring that fire alarms activate promptly when needed.
Description: Fire alarm cable is a specialized type of cable designed to transmit signals within a fire alarm system. It's crucial for the reliable and efficient operation of the entire system, ensuring that fire alarms activate promptly when needed.
Standard: As per Customer’s technical specifications.

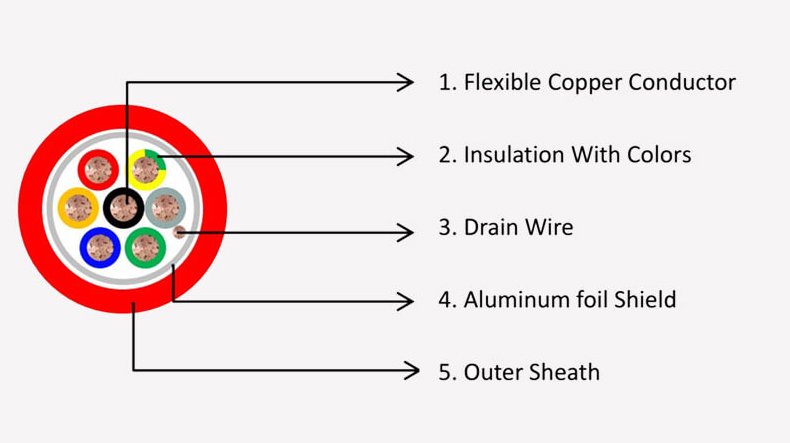

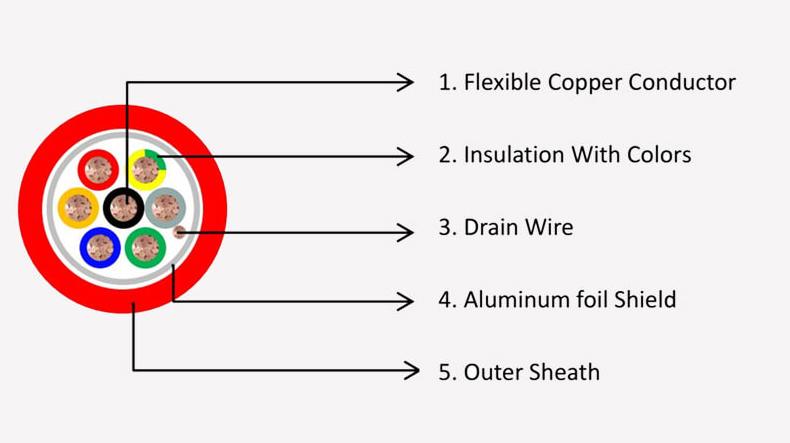

Construction: Core: 2C-20C;
Shield (optional): Aluminum foil with drain wire;
Sheath: PVC flame retardant;
Feature: Nominal Cross-section:0.5-400mm2
Rated Voltage: 600V or below
Core Number: 1-20 core
Conductor: Copper, class1, class2, class5
Insulation: PVC flame retardant.
Application: Fire alarm cable is used for wiring burglar & security alarms, public address systems, intercoms, telephone stations, speakers, instrumentation, control and other low voltage circuits that are power limited.
| Product Data Sheet | ||||
| Conductor size | Insulation | Jacket | ||
| Nom.thick(mm) | Nom.diam.(mm) | Nom.thick(mm) | Nom.diam.(mm) | |
| 2*1.0 | 0.6 | 2.4 | 1 | 6.8 |
| 2*1.5 | 0.7 | 2.8 | 0.8 | 7.2 |
| 2*2.5 | 0.8 | 3.4 | 1 | 9 |
| 4*0.5 | 0.4 | 1.6 | 1.2 | 6.2 |
| 4*1.0 | 0.6 | 2.4 | 0.8 | 7.4 |
| 4*1.5 | 0.7 | 2.8 | 0.8 | 8.3 |
| 4*2.5 | 0.8 | 3.4 | 1.1 | 10.3 |
Our cables, wires, conductors are usually packed in wood drum, Iron-wooden drum. Steel reel will also be used if required by client. For some short length, such as 50m, 150m, 300m, the conductor can also be packed in coil.
Product standard, Conductor Size, Quantity, Sea port/Airport for delivery, etc.
Usually we will quote to you within 24 hours after get your detailed inquiry information
We have exported to 100+ countries/area. We have rich export experience and will try our best to serve you and meet your needs. You can contact us for detailed communications.
Normally we offer EXW,FCA,FOB,CNF,CIF according to customer requirements.
According to different order quantity, the lead time is different. Normally it is 7- 30 days for production. For large quantities, the goods will be shipped in partial times according to schedule.
